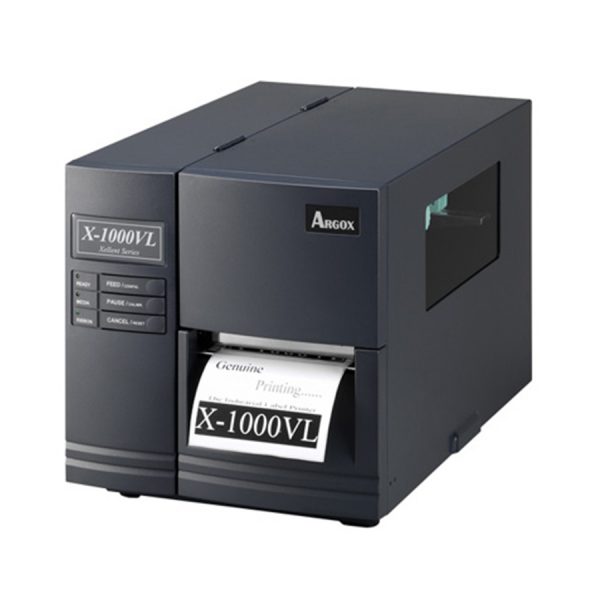

ARGOX X-1000VL (TT) INDUSTRIAL BARCODE LABEL PRINTER

ARGOX X-1000VL (TT) INDUSTRIAL BARCODE LABEL PRINTER

With Its Rugged Metal Housing and excellent print quality, the Argox X-1000VL is the perfect printer for industrial applications.

Description

FEATURED

  • Thermal Transfer Label Printer / Direct Thermal Label Printer
  • 203dpi resolution model available
  • Centronics Parallel (Baud rate 2400 ~ 115200 bps), RS-232, USB, Printer Server external for Ethernet/Wireless/Bluetooth options
  • 32-bit CPU, up to 4ips printing speed, and enlarged memories
  • Adjustable reflective and transmissive double sensor system ensures precise label detection to meet versatile media demands
  • Industrial-strength media management: 360M ribbon wax & 8 media compartment
  • Support 1D/GS1 Data bar, 2D/ Composite codes and QR barcodes
  • PPLA, PPLB emulations available
  • Support 1D/GS1 Data bar, 2D/Composite codes and QR barcodes
  • Durable and easy maintenance: easy-to-replace cutter and peeler
  • Full range of options: Cutter, Stacker, Font card, RTC and standalone keyboard (Argokee)
  • Windows Driver (Win 2000/XP/Vista) BarTender, ArgoBar Pro
  • Printing Width : Max 4.13”(105mm) / Printing Length : Max 8”(203mm)

Summary

OUTSTANDING PERFORMANCE

The new X-1000VL industrial barcode printer offers outstanding performance and value in an all-metal housing well-suited for harsh environments. A 32-bit RISC microprocessor provides print speeds up to 4ips, which is ideal for medium-volume printing requirements. The 4MB Flash memory and 8MB SDRAM ensures smooth operation and high reliability.

EASE OF USE – BUILT FOR INDUSTRIAL ENVIRONMENTS

The user-friendly print mechanism lets you easily adjust ribbon pressure and print quality by hand—no need for special tools. An external switch sets the printer for use with either inside or outside coated ribbons, and an adjustable ribbon guide stabilizes the ribbon during printing. The X-1000VL printer is flexible, easy-to-use, and offers value and high performance printing for industrial environments

PRINTS BOTH 1D BARCODES & 2D BARCODES

  • 1D
    PPLA: Code 39, Code 93, Code 128/subset A/B/C, Codabar, Interleaved 2 of 5, UPC A/E/2/5 add-on, EAN-13/8, UCC/EAN 128, Postnet, Plessey, Interleaved 2 of 5, Interleaved 2 of 5 with a modulo 10 checksum, Interleaved 2 of 5 with a modulo 10 checksum and shipping bearer bars, Code 128, UCC/EAN Code 128 Random Weight, HBIC, Telepen, FIM
    PPLB: Code 39, Code 93, Code 128/ subset A,B,C, Codabar, Interleaved 2 of 5, Interleaved 2 of 5 with check sum digit, Interleaved 2 of 5 with human-readable check digit, Matrix 2 of 5, UPC A/E 2 and 5 add-ons, EAN-8/13, Code 128UCC, UCC/EAN, Postnet
  • 2D
    PPLA: PDF-417, MaxiCode, Data Matrix (ECC200 only) ,QR Code, Composite codes
    PPLB: MaxiCode, PDF-417, QR Code, Composite codes

SUITABLE APPLICATIONS

  • Retail Tag
  • Shelf labelling
  • Price marking
  • Banking
  • Quotation printout
  • File/Folder labelling
  • Stationeries labelling
  • Assets tracking
  • Logistic labelling
  • Packing
  • Inventory labelling
  • Utilities
  • Shipping & Receiving
  • Postal & mailing
  • Luggage labelling
  • Work in process
  • Parts marking
  • Product labelling
  • Compliance labelling
  • Pallet labelling
  • Electronics parts labelling
  • Materials Management
  • Patient tracking
  • Laboratory specimen labelling
  • Pharmacy labelling
  • Healthcare Materials Management
  • Hospitals
  • Invoicing
  • Document Printing
  • Check-in
  • Education and Libraries

Specifications

DECODING CAPABILITY

  • 1D / Linear Codes:
    PPLA: Code 39, Code 93,Code 128/subset A/B/C, Codabar, Interleaved 2 of 5, UPC A/E/2/5 add-on, EAN-13/8, UCC/EAN 128, Postnet, Plessey, Interleaved 2 of 5, Interleaved 2 of 5 with a modulo 10 checksum, Interleaved 2 of 5 with a modulo 10 checksum and shipping bearer bars, Code 128, UCC/EAN Code 128 Random Weight, HBIC, Telepen, FIM
    PPLB: Code 39, Code 93, Code 128/ subset A,B,C, Codabar, Interleaved 2 of 5, Interleaved 2 of 5 with check sum digit, Interleaved 2 of 5 with human readable check digit, Matrix 2 of 5, UPC A/E 2 and 5 add-on, EAN-8/13, Code 128UCC, UCC/EAN, Postnet
  • 2D Codes:
    PPLA: PDF-417, MaxiCode, Data Matrix (ECC200 only) ,QR Code, Composite codes
    PPLB: MaxiCode, PDF-417, QR Code, Composite codes

PRINTER SPECIFICATIONS

  • Resolution:
    203 dpi (8 dots/mm)
  • Memory Standard:
    8 MB SDRAM (7 MB available to end user); 4 MB Flash (3 MB available to end user)
  • Print Width:
    4.09″ (104 mm)
  • Print Length:
    50″ (1270 mm)
  • Print Speed:
    2-4″ (51-102 mm)/sec
  • Media Sensors:
    Media Gap & Black Line Reflective Sensor x 1 (Movable) & Transmissive Sensor x 1 (Movable) / Head open Switch / Ribbon end Sensor

MEDIA CHARACTERISTICS

  • Maximum Label & Liner Width:
    4.09″ (104 mm)
  • Maximum Roll Diameter:
    7″ (177.8 mm)
  • Core Diameter:
    7″ (177.8 mm)
  • Media Types:
    Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric label

RIBBON CHARACTERISTICS

  • Standard Length:
    360 m Wax / 300M Resin
  • Ribbon Width:
    Recommended to be at least as wide as media
    133″ (33.8 mm) to 4.3″ (110 mm)

OPERATING CHARACTERISTICS

  • Operating Temperature TT Model:
    40° F (5° C) to 100° F (38° C)
  • Electrical:
    Universal Switching Power Supply Input: 100V-240V, 5A, 50-60Hz

SOFTWARE

  • Utility:
    Printer Utility, Font Utility
  • Label Editing:
    Windows Driver (Win 2000/XP/Vista/Windows 7) BarTender, ArgoBar Pro
  • Orientation:
    Left
  • Emulation:
    PPLA/PPLB
