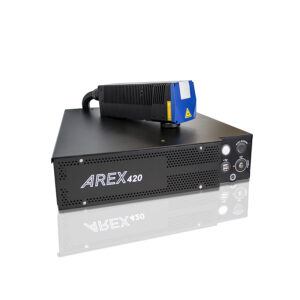

Datalogic Arex 400 Laser Marker

Datalogic Arex 400 Laser Marker

The NEW AREX is the ultra-compact Fiber Laser that is setting a new reference standard in the permanent marking arena.

With the smallest marking head footprint, AREX drastically simplifies design for system integrators and makes mechanical installations extremely easy in all the applications: from stand-alone marking stations to fully automated working centre in production lines.

Thanks to the state-of-the-art fibre technology, AREX allows high speed marking on metal and plastic material increasing systems productivity.



  • Ultra-compact, lightweight
  • Robust design for durability even in harsh environments
  • IP64 protection against dust, lubri-coolant and oil droplets
  • High resistance conduit suitable for robotic applications
  • Laser marking GreenSpot
  • Lens protective cup Controller
  • All-inclusive design; no external PC or hardware required
  • High performance Embedded PC
  • High reliability, high-resolution full-fibre-laser technology
  • Space saver form factor 19 inch 2.5U
  • Cost-effective embedded communications protocols
  • TCP/IP, Ethernet IP, Profinet
  • Fully compatible with MARVIS (Mark and Validate Integrated Solution) for zero-defect code marking
  • Low noise air cooling system



The AREX400 is the new generation of high performance Laser Markers based on Fiber Laser technology developed to achieve the highest reliability even in harsh manufacturing environments. Because of its’ exceptionally small and robust scanhead machined from solid aluminum, the AREX400 is unbeatable in tight space installations where a small footprint is mandatory and reliability is a must. The AREX400 incorporates the new LASER GREENSPOT, the programmable visual indicator for immediate and effective visible process feedback directly on the marking area. The totally new embedded controller is now offering improved performances, cost-effective embedded communication protocols (TCP/IP, Ethernet IP, Profinet), reduced noise level down to 65 dB and a new Safety Laser Off (SLO) feature.


  • Traceability
  • Excellent contrast high readability text and codes on metals and colour-enhanced thermoplastic materials
  • Quick and clear black laser annealing, without cracks or thermal damages
  • High-speed deep engraving Branding and texturing
  • Personalization and branding with high-resolution logo and graphics
  • Flexible and cost-effective aesthetic permanent marking



  • Nominal Power:
  • Peak Power(max):
  • Pulse energy:
  • Modulation:
  • Pulsewidth (typ):
  • Marking capabilities:
    Standing, Rotary axis, On the fly (marking in motion):; Extended-Layer (combination with X,Y Axis)
  • Fibre length:
  • Integration: Up to 4 mechanical axis driving capabilities (built-in stepper motors controller up to 100 KHz) Up to 10 digital inputs and 10 digital output fully programmable dedicated connectors for Encoder, Photocell, Distance sensor, Vision device, bar code readers, etc.Adapter Cable GIGA Ethernet X-Coded to Ethernet D-Coded
  • Interface:
    6 x USB, 3 x Ethernet (PRO VERSION), 1 x RS-232, Digital I/O
  • Protection rating:
    Head: IP64; Controller: IP31
  • Power supply:
    100/240 VAC – 50/60 Hz – 400 W (MAX)
  • Cooling System:
    Low noise, Forced air
  • Protection degree:
    Head: IP64; Controller: IP31
  • Head Dimension & Weight:
    89 MM X 96 MM X 311 MM – 3 KG
  • Controller dimensions:
    427 MM X 111 MM X 435 MM – 16 KG



Product Arex 410- Laser Only (10Watt)

Laser Only, please select additional accessories if required

Product Arex 420 – Laser Only (20Watt)

Laser Only, please select additional accessories if required

Product Arex 430- Laser Only (30Watt)

Laser Only, please select additional accessories if required

Product Arex 450- Laser Only (50Watt)

Laser Only, please select additional accessories if required
