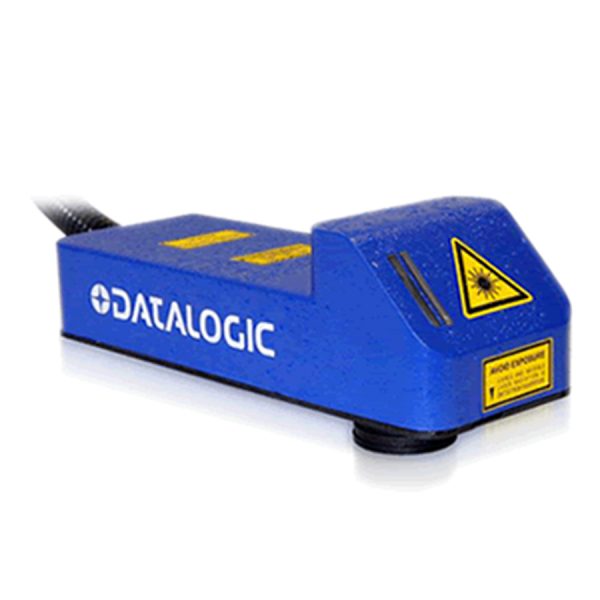

Datalogic Arex Laser Marker

Datalogic Arex Laser Marker

The NEW AREX is the ultra-compact Fiber Laser that is setting a new reference standard in the permanent marking arena.

With the smallest marking head footprint, AREX drastically simplifies design for system integrators and makes mechanical installations extremely easy in all the applications: from stand-alone marking stations to fully automated working centre in production lines.

Thanks to the state-of-the-art fibre technology, AREX allows high speed marking on metal and plastic material increasing systems productivity.

Description

FEATURED

  • 10W, 20W,30W and 50W Fiber Laser
  • Compact Scanning Head
  • Embedded Control Unit
  • Advanced Lighter 6.0 ease of use software Platform
  • Flexible programming and control
  • STAND-ALONE and MASTER-SLAVE mode
  • Static and Dynamic Conditions
  • High Power Efficiency
  • Embedded Power Supply

Summary

AREX: LASER MARKING MADE EASY

Datalogic AREX is the compact Pulsed Fiber Laser System addressed to the Automotive and Electronics industry for Direct Part Marking and Direct Engraving on metal parts and components.

The new AREX incorporates a high-performance fibre laser source with power levels available from 10W to 50W. The extended power range available together with improved scan head, new rack design and advanced LIGHTER Software features, allow for higher achievable performance in terms of flexibility, reliability, and ease of installation.

HIGH PERFORMANCE AND RELIABILITY

Zero laser-leakage to ensure no ghost lines or damage even on sensitive materials.
Up to 50°C operative temperature (10W & 20W models) guarantees high reliability and performance even in complex installation and adverse environments.
Improved Scan Head with IP54 protection class.

SUITABLE APPLICATIONS: PRECISION MECHANICS

  • Arex fibre laser marker series provides unmatched performance and functionality on metal.
  • High resolution, excellent contrast with low thermal impact
  • Quick and clear black laser annealing, without cracks damage
  • High-quality deep engraving
  • High contrast marking on additive plastic materials
  • High speed on PCB and electronic devices

Specifications

TECHNICAL

  • Nominal Power:
    50W
  • Peak Power(max):
    10 kW
  • Pulse energy:
    1.0 mJ
  • Wavelength:
    1060 – 1080 nm
  • Laser source:
    Pulsed Fiber Laser
  • Modulation:
    20 kHz ÷ 100 kHz
  • Pulsewidth (typ):
    100 nsec
  • Marking capabilities:
    Standing, Rotary axis, On the fly (marking in motion)
  • Integration:
    Up to 4 mechanical axis driving capabilities (stepper motor)
    Up to 10 digital inputs and 10 digital output fully programmable dedicated connectors Encoder and Photocell
  • Interface:
    Ethernet, RS 232, USB
  • Aiming & Focus Beam:
    Semiconductor Laser – 630 – 670 nm
  • Temperature Range:
    5°C to 50°C
  • Cooling System:
    Air-cooled
  • Protection degree:
    Head: IP54 – Controller IP21
  • Head Dimension & Weight:
    mm 87x112x298 kg 2
  • Rack Dimension & Weight:
    mm 111x430x370 kg 16
  • Standard Marking configuration:
    F – Theta 160 S
    Marking AREA 100×100 mm2
    Working Distance 184 mm
  • Standard Marking configuration:
    F-Theta 254S
    Marking AREA 140×140 mm2
    Working Distance 294 mm
  • Power Supply:
    100/240 VAC – 50/60 Hz

WARRANTY

N/A
