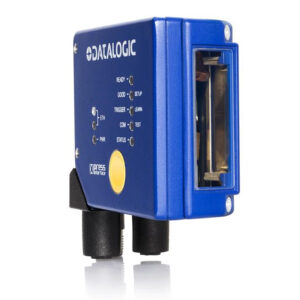

Datalogic DS5100 Fixed Mount Laser Barcode Scanner

Datalogic DS5100 Fixed Mount Laser Barcode Scanner

The new Datalogic DS5100 is the new flexible, powerful and compact laser scanner providing a cost effective solution to satisfy the main identification needs of Automotive, Food & Beverage, Pharmaceutical and other manufacturing plants. The DS5100 offers a complete and flexible portfolio including Medium Range and Long Range models and Linear or Oscillating Mirror models with excellent reading performance.

Description

FEATURED

  • Medium, Long Range, Linear and Oscillating Mirror models, user
    the selectable focus for high application flexibility
  • ID-NET interface and Ethernet Bus Connections (EBC)
  • Embedded PROFINET-IO and EtherNet/IP for connectivity to main industrial Fieldbus
  • X-PRESS interface, Genius software tool, embedded multilanguage
    display for easy scanner setup and maintenance
  • Rotating connector block for flexible form factor and easy installation
  • DST (Digital Signal Technology), ACR4 reconstruction technology
    and BACKTRACK tracking technology on Long Range
  • Superior ambient light immunity from high-frequency laser modulation
  • Top industrial grade, IP65 and a subzero version for low-temperature environments

Summary

RELIABILITY

Superior reading performance together with a user selectable focus for flexible reading area selection make the DS5100 the ideal solution to cover different applications: Shop Floor, End of Line, Automated Warehouse, Intralogistics, Pallet Reading and more.

INTERFACE TOOLS

Rotating connector blocks minimizes overall dimensions and offers a flexible form factor for easy installation. Total connectivity and embedded FIELDBUS: Serial connectivity, Ethernet/IP connectivity, PROFINET-IO connectivity one port and two ports. Smart multi-side and networking capability thanks to ID-NET™ and EBC.

The Datalogic DS5100 is easily setup installation and maintenance easy setup with X-PRESS™ interface and with multilanguage Genius™ software tool. The unit boasts a best in class ACR4TM reconstruction algorithm, DST technology and optimized reading recipes for flexible and outstanding reading performance on low quality and low contrast bar codes, damaged labels as well as at high skew angles. Packtrack 2D is available on long range models.

Top industrial grade IP65, operating temperature from 0 to 50°C and subzero™ version down to -35°C through an internal heater and de-frost window.

SUITABLE APPLICATIONS

  • Automatic warehouses
  • Factory automation
  • Automatic picking systems
  • Process control and packaging
  • Print & apply systems

Specifications

DECODING CAPABILITY

  • 1D / Linear Codes:
    Code I2 of 5, Code 39, Code 93, Code 128, EAN/UPC, EAN 128, Codabar, Pharmacode, Plessey, ISBT 128
    Multilabel Readings:
    Up to 10 Codes in the same reading phase

CONNECTIVITY SPECIFICATIONS

  • Communication Interfaces:
    Main port RS232/RS485-FD up to 115.2 Kbit/s
    Auxiliary port RS232 up to 115.2 kbps
    ID-NET RS485 multidrop up to 1 Mbps
    EtherNet/IP, Modbus TCP, Ethernet TCP/IP,
    PROFINET-IO Class A
  • Digital Inputs:
    2 Input (optocoupled, NPN/PNP)
  • Digital Outputs:
    2 Outputs (optocoupled)
  • Reconstruction Code Technology:
    ACR4
  • Focus Adjustment:
    Mechanically adjustable focus with locking
  • Optic Architecture/Technology:
    ASTRA G3
  • Bar Code Assignment Technology:
    Packtrack tracking technology on Long Range models DS5100-24xx only when configured in an EBC network
    (not available on Medium Range models)
  • Device Programming:
    Genius (Windows™ based) software tool
    Serial Host Mode Programming sequences
    XPRESS interface
  • Operating Modes:
    On-line, Serial On-line, Automatic, Continuous, Test, Verifier,
    Packtrack tracking technology on Long Range when configured in an EBC network

PHYSICAL CHARACTERISTICS

  • Dimensions:
    LIN: 101 x 104.2 x 42 mm (3.98 x 4.1 x 1.65 in)
    OM: 116.7 x 142.9 x 48.4 mm (4.60 x 56.26 x 1.90 in)
  • Weight:
    LIN: 520 g
    OM: 715 g
  • Case Material:
    Aluminum
  • Temperature Range:
    0° to +50 °C (+32°F to +122 °F)
    Subzero version -35°C to +50°C (-31°F to +122 °F)
  • Scan Pattern Type:
    Linear / Oscillating Mirror / Deflection Mirror
  • IP rating:
    IP65
  • Fieldbus /Ethernet:
    Embedded EtherNet/IP, PROFINET-IO, Modbus TCP
    Other fieldbus supported through CBX or QLM external device
  • Display:
    16 x 2 characters
  • Max. Resolution:
    up to 0.2 mm (8mils)
  • Scan Rate:
    800 scan/s
  • Aperture Angle:
    65 degrees
  • Power Supply:
    10-30V
  • Power Consumption:
    6 W

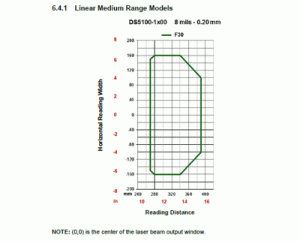

Reading Diagrams

DS5100_1 DS5100_28 DS5100_27 DS5100_26 DS5100_25 DS5100_24 DS5100_23 DS5100_22 DS5100_21 DS5100_20 DS5100_19 DS5100_18 DS5100_17 DS5100_16 DS5100_15 DS5100_14 DS5100_13 DS5100_12 DS5100_11 DS5100_10 DS5100_9 DS5100_8 DS5100_7 DS5100_6 DS5100_5 DS5100_4 DS5100_3 DS5100_2

Cables

Required, some fixed scanners have communication cables molded into the housing to connect to the connection box, output cables may still be required. Please refer to topography diagram in Reference manual for more information

Power Supplies/Cords

Additional Accessory – only required for certain cable sets

EASE OF CARE (EoC) Repair/ Maintenance Agreements (Per Unit)

Optional on request

Websentinel Software

(Optional) WebSentinel Plus is a very advanced monitor and information collector, a supervisory software solution for monitoring operational activities of reading devices through a single web browser-based interface. It collects data from scan points through an Ethernet TCP/IP network, and
presents the information flow as visual onscreen information. It also stores this information in a database and,
periodically or on demand, produces performance, diagnostic, and tracking reports.
