The Datalogic DS8100A represents the evolution of a winning concept which started in 1998: the use of state-of-the-art technology to design the best performing fixed position scanner on the market. DS8100A is based on an innovative 3-diode structure that offers an unbeatable real-time depth of field.

Description

FEATURED

  • Reading performance benchmark
  • ACR4™ code reconstruction algorithm
  • ASTRA™ technology for the electronic focusing system
  • DIGITECH™ signal processing technology
  • PACKTRACK™ to minimize the gap between objects and increase system productivity
  • GENIUS™ multilanguage SW for easy scanner configuration/setup
  • Display and keyboard
  • Built-in Ethernet TCP/IP connectivity
  • Fully compatible with DX8200A, 6000 series (DS6300, DS6400) and SC6000 industrial controller
  • Communication interfaces include RS232/RS485 up to 115.2 kbps

Summary

CONNECTIVITY

Connectivity has been improved with the introduction of built-in Ethernet connectivity with implemented TCP-IP, Ethernet/IP and modbus TCP protocols. A practical display with keyboard increases DS8100A ease of use by offering a simple and complete human machine interface without PC. The SW platform of the new DS8100A, based on GEnius configuration program, permits 100% control of scanner functionality via SW. Moreover, DIGITECH™ technology enables excellent reading performance along the entire depth of field

The Datalogic Matrix 300™ is the most cost effective solution for bar code imagers, providing onboard PROFINET-IO and eliminating external communication boxes or converters. The Matrix 300™ interfaces directly with a PROFINET enabled PLC, reducing the complexity and cost of the solution. The M12, 4 pole connection sets a standard that allows for easy integration into existing systems.

SUITABLE APPLICATIONS

  • Manufacturing, Electronics and Automotive
  • DPM code validation after marking
  • Work-in-progress control
  • Parts and assemblies traceability
  • Food and Beverage
  • Work-in-progress traceability
  • Document Processing
  • High speed process control
  • Medical device traceability
  • Clinical Lab Automation
  • Biomedical analysis machines
  • Specimen collection machines
  • Logistics Automation
  • Carton and tote traceability
  • Automated warehousing

Specifications

DECODING CAPABILITY

  • 1D / Linear Codes:
    22 symbologies including 2/5 family, Code39, Code93, Code128, EAN/UPC, EAN128, ISBN128
  • Multilabel Readings:
    Up to 10 different symbologies during the same reading phase
  • Laser Classification:
    Class 2 – EN60825-1; Class II – CDRH

CONNECTIVITY SPECIFICATIONS

  • Communication Interfaces:
    Main Port: RS232/RS485 up to 115.2 Kbit/s
    Auxiliary Port: RS232 up to 115.2 Kbit/s
  • Other Available Interfaces:
    Lonworks (Master/Slave), Ethernet (optional)
  • Reader Indicators:
    1) Power On (red) Good Read (red);
    2) Trigger (yellow) TX Data (green);
    3) Encoder (yellow) Network (red)
  • Digital Inputs:
    Three SW programmable and One “Encoder”, optocoupled, NPN/PNP
  • Digital Outputs:
    Three SW programmable, optocoupled, event driven
  • Display & Keypad:
    LCD 16 x 2 characters & 3 keys
  • Device Programming:
    Windows™ based SW (Genius™) via serial or Ethernet link Serial Host Mode Programming sequences
  • Operating Modes:
    ‘On-line’, ‘Serial On-line’, ‘Automatic’, ‘Continuous’, ‘PackTrack™’, ‘Test’

PHYSICAL CHARACTERISTICS

  • Dimensions:
    215.5 x 170.5 x 126.5 mm (8.48 x 6.71 x 4.98 in)
  • Weight:
    5.0 Kg (176.3 oz.)
  • Case Material:
    Aluminum
  • Operating Temperature:
    0 to 50 °C (32 to 122 °F)
  • Storage Temperature:
    -20 to 70 °C (-4 to 158 °F)
  • Humidity:
    90% non condensing
  • Vibration Resistance:
    IEC 68-2-6 test FC 1.5mm; 10 to 55 Hz; 2 hours on each axis
  • Shock Resistance:
    IEC 68-2-27 test EA 30 G 11 ms; OM: 15 G 11 ms; 3 shocks on each axis
  • Protection Class:
    IP64 for standard models; IP65 on request
  • Light Source:
    Visible laser diode (630 to 680 nm)
  • Scanning Speed:
    1000 scans/s (500 scans per line)
  • Laser Control:
    Safety system to turn laser off in cases of motor slowdown or failure
  • Power Supply:
    20 to 30 VDC
  • Power Consumption:
    20 W typical, 30 W max

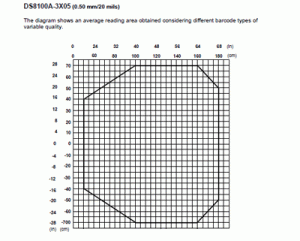

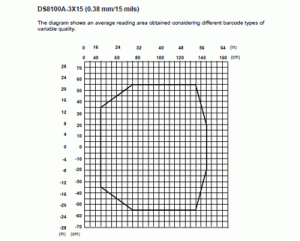

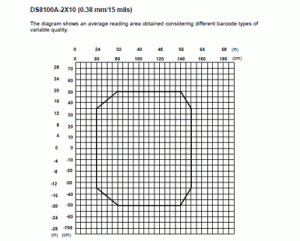

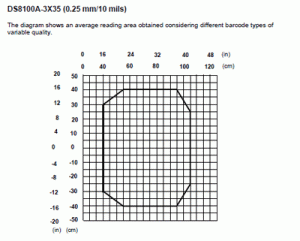

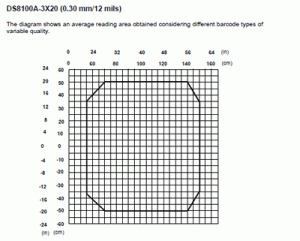

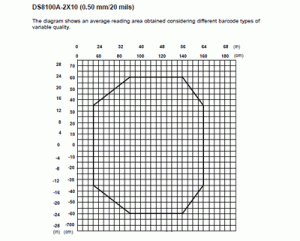

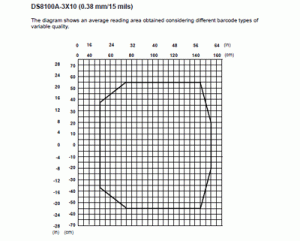

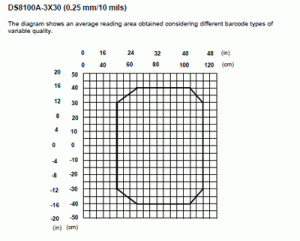

Reading Diagrams

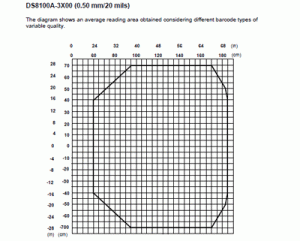

DS8100A_1

DS8100A_2

DS8100A_3

DS8100A_4

DS8100A_5

DS8100A_6

DS8100A_7

DS8100A_8

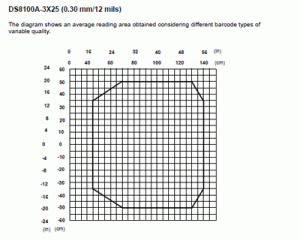

DS8100A_9

DS8100A_10
