Datalogic DX8200A Omni-Directional Laser Barcode Scanner

Datalogic DX8200A Omni-Directional Laser Barcode Scanner

The Datalogic DX8200A is a high-performance X-pattern laser scanner capable of omni-directional bar code reading that provides an economical and easily installed single scanner solution for Transportation and Logistics needs.

Description

FEATURED

  • Laser barcode reader
  • DIGITECH™ technology permits full SW control over signal processing parameters
  • PACKTRACK™ function reduces the minimum object gap while enabling higher system throughput
  • Easily and rapidly configured thanks to Datalogic GENIUS™ (intuitive and multi-language configuration program)
  • Ease of use is increased due to a practical display with keyboard, offering a simple and complete human machine interface to PC
  • Display and keyboard for scanner monitoring and diagnostics
  • A simplified replacement procedure enables reduced downtime due to automatic SW configuration restore in the new device
  • Unbeatable reading performance and reliability on fast moving conveyor systems are ensured by ASTRA™ electronic focusing system (no mechanical moving parts)
  • Fully compatible with 6000 series (DS6300, DS6400) and SC6000 industrial controller
  • Single X-Cross reading pattern
  • Other interfaces Lonworks (master/slave), Ethernet, Profibus, DeviceNET (optional)
  • 1000 scans/sec software programmable
  • Up to 10 different symbologies during the same reading phase
  • Built-in Ethernet TCP/IP connectivity
  • ACR4™ code reconstruction algorithm
  • ASTRA™ technology for the electronic focusing system

Summary

EXTREME READING PERFORMANCE

The X-pattern design allows a single DX8200A to do the work of two DS8100A’s for many applications. Setup is thus quicker and simpler thanks to the precalibration built into the DX8200A. Connectivity to the most popular networks is assured with Profibus and Devicenet available in addition to Ethernet communications.

The DX8200A is based on an innovative 3-diode structure that offers an unbeatable real time depth of field. As a result of improved ASTRA™ technology that increases its already impressive performance, 3 laser diodes are elctronically switched from one to the other, depending on the bar code on an object of any possible shape and in any position, since as the DX8200A focuses on a bar code and not on the object profile.

The PACKTRACK™ function reduces minimum object gap and increases system throughput. The SW platfrom of DX8200A, based on GENIUS™ configuration program, permits 100% control of scanner functionality via SW.

ADVANTAGES

Improved connectivity thanks to the introduction of built-in Ethernet with implemented TCP-IP, Ethernet/IP and Modbus TCP protocols. DIGITECH™ Digitech technology permits full SW control over signal processing parameters Scanner setup can therefore be optimized quite simply by loading the right SW recipe, thus enabling excellent performance in all reading conditions.

Ease of use is increased due to a practical display with keyboard, offering a simple and complete human machine interface without PC Fully compatible with the DS8100A, the 6000 series (DS6300, DS6400) and the SC6000 industrial controller.

SUITABLE APPLICATIONS

  • Postal/Courier parcel sorting and tracking
  • Automated warehousing identification systems
  • Airport baggage sorting systems
  • Cargo applications
  • Loading/unloading systems

Specifications

DECODING CAPABILITY

  • 1D / Linear Codes:
    22 symbologies including 2/5 family, Code39, Code93, Code128, EAN/UPC, EAN128, ISBN128
  • Multilabel Readings:
    Up to 10 different symbologies during the same reading phase
  • Laser Classification:
    Class 2 – EN60825-1; Class II – CDRH

CONNECTIVITY SPECIFICATIONS

  • Communication Interfaces:
    Main Port: RS232/RS485 up to 115.2 Kbit/s
    Auxiliary Port: RS232 up to 115.2 Kbit/s
  • Other Available Interfaces:
    Lonworks (Master/Slave), Ethernet, Profibus, DeviceNet (optional)
  • Reader Indicators:
    6 LED status indicators
  • Digital Inputs:
    3 programmable and 1 Encoder (optocoupled);
    Auxiliary Input, NPN/PNP transistor (optocoupled)
  • Digital Outputs:
    Three SW programmable, optocoupled, event driven
  • Display & Keypad:
    LCD 16 x 2 characters & 3 keys
  • Device Programming:
    Windows™ based SW (Genius™) via serial or Ethernet link
    Serial Host Mode Programming sequences
  • Operating Mods:
    On-line’, ‘Serial On-line’, ‘Automatic’, ‘Continuous’, ‘PackTrack™’, ‘Test’

PHYSICAL CHARACTERISTICS

  • Dimensions:
    319.5 x 248.7 x 99.7 mm (12.58 x 9.79 x 3.93 in)
  • Weight:
    3.3 Kg (7.26 lbs)
  • Case Material:
    Steel
  • Operating Temperature:
    0 to 50 °C (32 to 122 °F)
  • Storage Temperature:
    -20 to 70 °C (-4 to 158 °F)
  • Humidity:
    90% non condensing
  • Vibration Resistance:
    IEC 68-2-6 test FC 1.5mm; 10 to 55 Hz; 2 hours on each axis
  • Shock Resistance:
    IEC 68-2-27 test EA 30 G 11 ms; OM: 15 G 11 ms; 3 shocks on each axis
  • Protection Class:
    IP64 for standard models; IP65 on request
  • Light Source:
    Visible laser diode (630 to 680 nm)
  • Scanning Speed:
    1000 scans/s (500 scans per line)
  • Reading Pattern:
    Single-cross
  • Laser Control:
    Safety system to turn laser off in cases of motor slowdown or failure
  • Power Supply:
    10 to 30 VDC
  • Power Consumption:
    < 10 W

Reading Diagrams

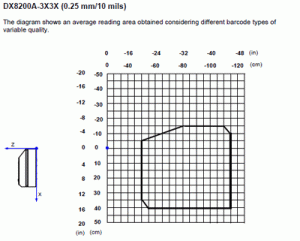

DX8200A_1

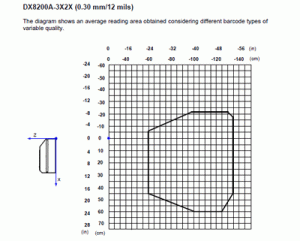

DX8200A_2

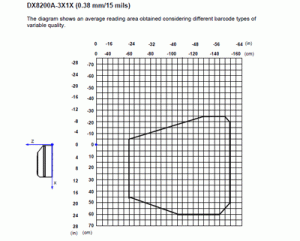

DX8200A_3

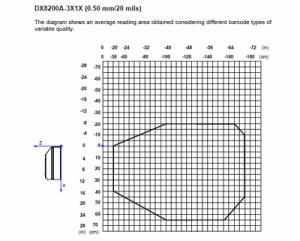

DX8200A_4
