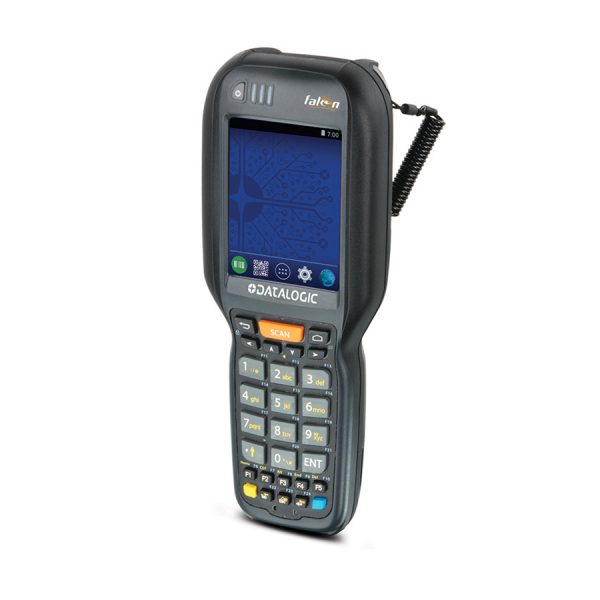

Datalogic Falcon X4 Warehousing Industrial Scanner (ANDROID)

Datalogic Falcon X4 Warehousing Industrial Scanner (ANDROID)

The Datalogic Falcon™ X4 mobile computer PDA barcode scanner delivers the ultimate in ruggedness, ergonomics, computing and data capture technologies, while providing a tailored solution for demanding environments needing real-time transaction visibility.

Datalogic Falcon X3+ PDA Handheld Scanner

Description

FEATURED

  • Full-shift battery and a choice of 3.5 inch touchscreen displays: QVGA or VGA
  • Ruggedized with 1.8 m / 6.0 ft drop to concrete resistance
    and IP65 sealing rating
  • Standard range 1D laser and 2D imager feature Datalogic’s patented
  • ‘Green Spot’ technology for good-read feedback.
  • Auto-Ranging Laser and Extra Long Range 2D Imager
  • Corning Gorilla Glass 3 scan window
  • 3.1 Megapixel auto-focus camera on all WEHH models
  • CCX v4 certified 802.11 a/b/g/n radio
  • Windows Embedded Compact 7 OR Android 4.4
  • Professional operating system
  • TI OMAP4 @ 1 GHz
  • 1 GB RAM / 8 GB Flash memory
  • Wavelink Avalanche device management and Terminal
  • Emulation pre-licensed
  • Datalogic Utilities and Software Development Kit
  • DCI EASEOFCARE Service Plans offer a wide range of service options to
    protect your investment, ensuring maximum productivity and ROI
  • Full Alphanumeric Keypad

Summary

CHOICE OF WINDOWS EMBEDDED OR ANDROID™ OPERATING SYSTEMS

Legendary Falcon with upgraded performance! The Falcon™ X4 mobile computer features a high performance multicore 1 GHz architecture that offers blazing speed when running Windows Embedded Compact OS and allows easy upgradeability to the Android™ OS. Users will never run out of memory with the standard 1 GB RAM and 8 GB Flash.

REAL-TIME DATA CAPTURE AND COMMUNICATIONS

Capture bar codes using Datalogic 1D and 2D imaging technologies. Communicate over a superior TI 802.11 a/b/g/n radio with CCX v4 compliance and MIMO technology for improved connectivity and coverage, or through wired standards including USB Hi-Speed, RS-232, Modem and Ethernet. Bluetooth® wireless technology v4 provides support for the new low energy mode (BLE) and for improved voice recognition via wide band audio.

ERGONOMIC AND RUGGED

Users feel the full shift difference of ergonomic handheld and pistol grip form factors to balance a 3.5 inch crystal clear display, full numeric or alphanumeric back-lit keyboards, and a one piece 5,200 mAh battery. With the best ergonomics in this market segment, the Falcon X4 mobile computer reduces operator fatigue with no compromise in terms of reliability and robustness, resisting harsh environments, repeated drops, strong shocks and repetitive tumbles.

EASY AND INTUITIVE

Develop custom solutions using the industry-leading Datalogic Software Development Kit (SDK). Deploy quickly with the included Datalogic utilities or your preferred device management solution. Manage your installed devices using the pre-licensed Wavelink Avalanche or leverage the pre-licensed Wavelink Terminal Emulation (WEC7 Only).

SUITABLE APPLICATIONS

  • Warehouse and Distribution
  • Retail, Wholesale, Manufacturing, Automotive
  • Electronics, Food/Beverage, Consumer Products, Pharmaceutical
  • Logistics (3PL)
  • Receiving
  • Cross Docking
  • Voice Picking
  • Shipping
  • Cycle Count
  • Inventory
  • Shelf Replenishment
  • Order Entry
  • Assisted Sales
  • Planogram Verification

Specifications

DECODING CAPABILITY

  • 1D / Linear Codes:
    Auto discriminates all standard 1D codes includingGS1 DataBar™ linear codes
  • 2D Code:
    Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
  • Postal Codes:
    Australian Post, Japan Post, KIX Code; PLANET, POSTNET, KIX Code,
    Royal Mail Code (RM4SCC)
  • Stacked Codes:

PHYSICAL CHARACTERISTICS

  • Dimensions:
    22.5 x 8.8 x 5.5 cm / 8.9 x 3.5 x 2.2 in
  • Display:
    Reflective TFT daylight readable color display,320 x 240 pixels (CE only) or 640 x 480 (WEHH only);
    8.9 cm / 3.5 in diagonal, 65K colors, backlight, touch screen
  • Keypad:
    Polycarbonate hard cap keyboards with backlight; 29-key numeric or 52-key alphanumeric with discrete navigation
  • Weight:
    Handheld: 608.0 g / 21.4 oz
    Pistol grip: 674.0 g / 23.8 oz

ENVIRONMENTAL

  • Drop Resistance:
    Withstands repeated drops from 1.8 m/6.0 ft onto a concrete surface
  • Particulate and Water Sealing:
    IP65
  • Temperature Operating: -20 to 50 °C / -4 to 122 °F
    Storage/Transport: -30 to 70 °C / -22 to 158 °F

WIRELESS COMMUNICATION & SYSTEM

  • Local Area Network (LAN):
    Summit IEEE 802.11 a/b/g
    Frequency range: Country dependent, typically
    2.4 GHz and 5.2 GHz; Cisco Compatible CCX v4
    Security
  • Personal Area Network (PAN):
    Bluetooth® Wireless Technology IEEE 802.15 Class 2.1 with EDR
    Voice-Picking:
    Vo-CE™; Wavelink Speakeasy™
  • Expansion Slots:
    Micro SD card slot compatible with SDHC cards, user-accessible
  • Memory:
    System Flash: 1 GB
    System RAM: 256 MB
  • Microprocessor:
    XScale™ PXA310 @ 624 MHz
  • Operating System:
    Microsoft Windows CE 6.0 with Microsoft WordPad and Internet Explorer 6.0
    Windows Embedded Handheld 6.5 with Mobile tools: Outlook Mobile, Word Mobile, Excel Mobile, PowerPoint Mobile, One Note Mobile and Internet Explorer Mobile 6.0

READING PERFORMANCE

  • High Performance Laser (HPL):
  • Depth of Field: 1 to 83 cm / 1 to 32 in, depending on bar code and density;
  • Scanning Rate: 104 +/- 12 scans/sec.;
  • Good Read Feedback: Datalogic’s patented ‘Green Spot‘ technology
  • Long-Range Laser (XLR):
  • Depth of Field: Non-reflective labels from 9 to 490 cm / 0.3 to 16.0 ft, depending on bar code density;
  • Reflective labels: up to 1509 cm / 49.5 ft. Near range determined by degree of reflectivity and width of the bar code.
    All ranges dependent on bar code size and density;
    Scanning Rate: 31-41 scans/sec
  • Standard Range Imager (2D):
  • Depth of Field: 2 to 60 cm / 1 to 24 in, depending on bar code size and density; Minimum
    Resolution: Linear codes: 5 mils; 2D codes:6.7 mils;
    Good Read Feedback: Datalogic’s patented ‘Green Spot’ technology
  • Extra Long Range Imager (2D XLR):
  • Depth of Field: 17 to 952 cm / 0.6 to 31.3 ft, depending on bar code size and density;
    Minimum Resolution: Linear codes: 5 mils; 2D codes: 10 mils

WARRANTY

1-Year Factory Warranty

Product – Scanner Only (1D)

Scanner Device only, additional accessories are required

Product – Scanner Only (2D)

Scanner Device only, additional accessories are required

Docks / Mounts

Optional Accessories – Non Kits require a Power Supply/ Cord

Power Supplies/Cords

Additional Accessory – only required for certain cable sets

Batteries/ Battery Chargers

Additional Accessories – Spare Batteries

Cases/Holsters

Additional Accessories

EASE OF CARE (EoC) Repair/ Maintenance Agreements (Per Unit) / Shield Updates

Optional on request
