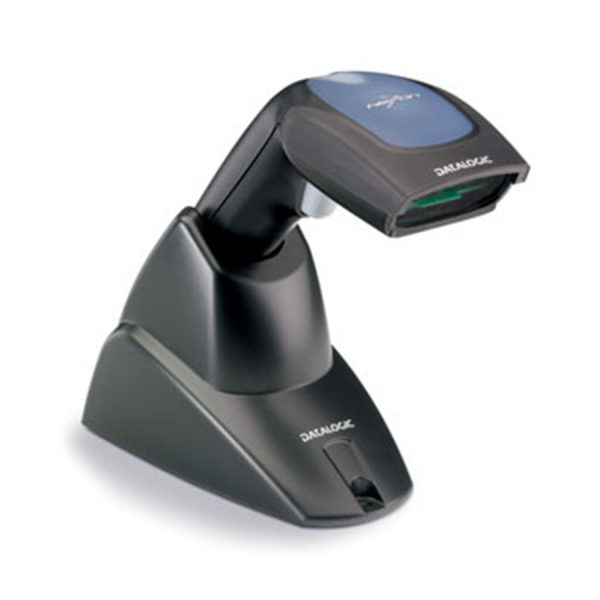

Datalogic Heron D130 Handheld Barcode Scanner

Datalogic Heron D130 Handheld Barcode Scanner

The Heron entry-level readers are packed with features to delight any user. Ideal for instinctive reading distance applications (near contact to over 20 cm / 8 in) at the retail point of sale (POS) or office applications.

Description

FEATURED

  • Tethered Handheld and hands-free operation
  • Imager Sensor CCD Solid-State 2048 Pixels
  • Excellent reading capability
  • Comes in USB / Keyboard Wedge or RS232
  • Accurate and high first-pass read rates 256 reads/sec
  • Complete data formatting and editing
  • Datalogic patented ‘Green Spot’ technology for good-read feedback
  • Reading Indicators: Beeper, Datalogic Good Read LED
  • Supports GS1 DataBar™ linear codes
  • Nedap and Checkpoint Systems EAS compatible model
  • Datalogic Aladdin configuration program available for free download
  • DCI Scanning BESTSELLER

Summary

HANDHELD BARCODE SCANNER OR HANDS FREE READER

Perfect for use as both a handheld and a presentation style reader, all Heron models are lightweight and ergonomically shaped for handheld use and include an autosensing stand in the package. Removed from the stand the reader switches to handheld mode, placed correctly in the stand, the reader beeps and automatically switches to Stand Mode (hands-free) for presentation reading.

AVAILABLE IN MANY INTERFACES FOR MANY APPLICATIONS

Developed to satisfy all requirements at the POS, the Heron barcode reader is available with different interface sets: the standard D130 multi-interface model (RS- 232, USB, Wedge and Wand Emulation); the D110 model, providing complete connectivity to main IBM cash registers and POS terminals.

The D140 model, which performs undecoded reader applications and the D150 EAS model which has an integrated EAS antenna and special EAS cables, for ease of connection and compatibility with Nedap and Checkpoint® EAS systems, guaranteeing EAS tag deactivation and code reading in one smooth motion.

DATALOGIC PATENTED ‘GREEN SPOT’ TECHNOLOGY

All Heron readers feature Datalogic’s exclusive patented ‘Green Spot’ for good-read feedback directly on the code. In Stand Mode, the Green Spot remains on to show the operator where to position the code for quick and intuitive reading.

SUITABLE APPLICATIONS

  • Retail
  • Post Office
  • Video Store Checkout
  • Healthcare
  • Asset Management
  • Inventory Control

Specifications

DECODING CAPABILITY

  • 1D / Linear Codes
    Auto discriminates all standard 1D codes includingGS1 DataBar™ linear codes
  • Stacked Codes
    EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked;
    GS1 DataBarStacked; GS1 DataBar Stacked Omnidirectional

READING PERFORMANCE

  • Light Source
    Illumination: Red LED 640 nm
  • Imager Sensor
    CCD Solid-state 2048 pixels
  • Print Contrast Ratio (Minimum)
    15%
  • Read Rate (Maximum)
    256 reads/sec.
  • Reading Angle
    Pitch: 75°; Roll (Tilt): 30°; Skew (Yaw): 70°
  • Reading Indicators
    Beeper (Adjustable Tone); Datalogic ‘Green Spot’
    Good Read Feedback; Good Read LED.
  • Resolution (Maximum)
    0.100 mm / 4 mils (1D Codes)

ENVIRONMENTAL

  • Drop Resistance
    Withstands repeated drops from 1.8 m/5.9 ft onto a concrete surface
  • Particulate and Water Sealing
    IP30
  • Temperature Operating
    0 to 55 °C / 32 to 131 °F
  • Storage/Transport
    -20 to 70 °C / -4 to 158 °F

WARRANTY

5-Year Factory Warranty
