Datalogic Joya Touch Windows PDA Barcode Scanner

Datalogic Joya Touch Windows PDA Barcode Scanner

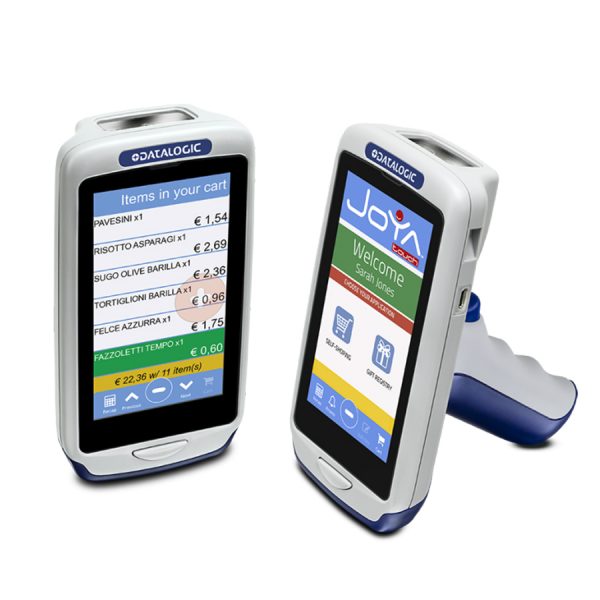

The Datalogic Joya Touch is the multi-purpose device for use throughout retail, optimizing your ROI. With two form factors available (handheld and pistol-grip), retailers can deploy device configurations to match their applications. Changing from one form to the other is quick and easy.

Datalogic Joya Touch Microsoft Windows PDA Barcode Scanner

Description

FEATURED

  • Multi-purpose device: handheld or pistol-grip
  • Wireless charging and high versatility cradle
  • Boost and fast recharging
  • Datalogic SoftSpot technology for innovative triggering through
    touch display
  • 3-Axis Accelerometer detects changes in screen orientation
  • 4.3-inch FWVGA and QVGA display
  • Vibration feature informs users about upcoming events, discounts,
    promotional offers, etc.
  • Fully supports Datalogic’s self-shopping middleware ‘Shopevolution’
    or third-party software
  • Supports Datalogic’s Queue-busting app
  • The speaker informs users about upcoming promotions and sales, discounts, etc.
  • Beacon support via BLE for geolocalization
  • 2D imaging technology
  • Datalogic’s patented ‘Green Spot’ technology for visual good-read feedback
  • USB connectivity
  • Anti-theft Buzzer to protect the Joya units from leaving the premises
  • EASE OF CARE Service Plans offer a wide range of service options to protect your
    investment, ensuring maximum productivity and ROI

Summary

JOYA™ TOUCH IS THE MULTI-PURPOSE DEVICE FOR RETAIL

The Datalogic Joya Touch is the multi-purpose device for use throughout retail that optimizes your ROI. The Joya Touch device is designed for use in Self-Shopping, Shop Floor, Access Control and more.

MULTIPLE DEVICES IN ONE

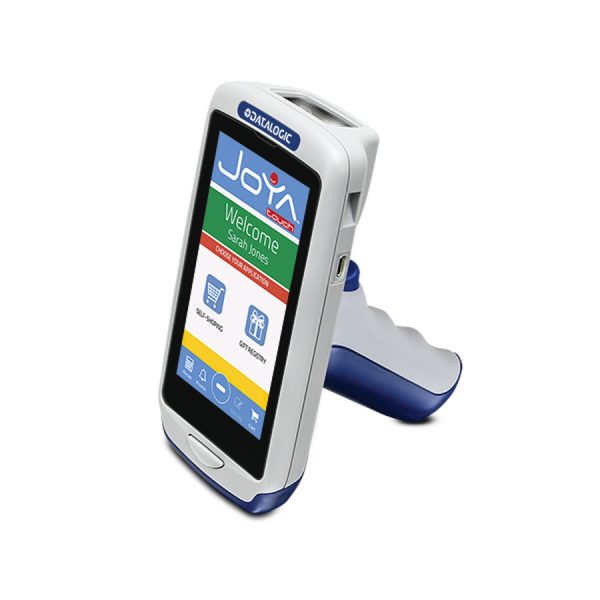

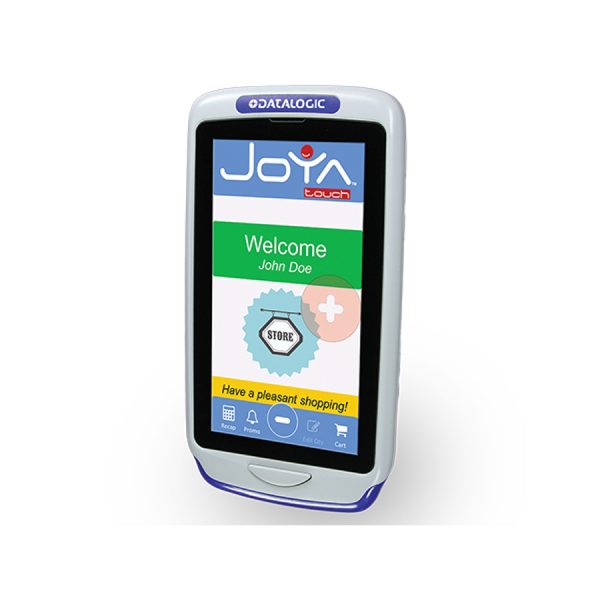

The Datalogic Joya Touch device comes in two form factors: a handheld version resembling a smartphone and a pistol-grip version with a comfortable trigger. Joya Touch can be easily customized in several ways: upper case, front logo, battery cover and screen protector, both in colours and themes. This allows the retailer to choose either their corporate branding or other co-marketing logos.

WIRELESS CHARGING CRADLE

The Datalogic The Joya Touch device is charged using the industry’s first wireless charging technology that eliminates the need for cleaning the contacts on the device and cradles. It radically reduces support costs and increases its life span.

The multi-bay cradle supports both handheld and pistol-grip models of the Joya Touch, ensuring the right configuration for every user/application. The retailer can choose between high density and front-facing display installation, providing maximum flexibility.

USER INTERFACE

The user interface features a large touchscreen display along with Datalogic SoftSpot™ technology which allows users to choose the position of the soft trigger on the display.

BOOST AND FAST CHARGING

The Datalogic Joya Touch device requires only 2.5 hours to recharge and the ‘boost recharge’ feature ensures 80 minutes of use after only 15 minutes of charging!

BLUETOOTH® WIRELESS TECHNOLOGY V4.0 – BLE AND BEACONS

The Datalogic Joya Touch device supports Beacon technology for in-store localization. Bluetooth wireless technology and BLE can also be used to connect a wide range of devices such as payment systems, headsets and printers.

SUITABLE APPLICATIONS

  • Retail
  • Self-Shopping
  • Queue-busting
  • Inventory
  • Access Control
  • Gift Registry
  • Shop Floor Applications
  • Assisted Sales

Specifications

DECODING CAPABILITY

  • 1D / Linear Codes
    Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes
  • 2D Codes
    Aztec Code; Aztec Mesas; Data Matrix; MaxiCode;QR Code, Micro QR Code; China Han Xin Code
  • Postal Codes
    Australian Post, Japan Post, KIX Code, PLANET,
    POSTNET, Royal Mail Code (RM4SCC)
  • Stacked Codes
    Micro-PDF417, PDF417, GS1 DataBar Composites,
    GS1 DataBar Expanded Stacked, GS1 DataBar
    Stacked, GS1 DataBar Stacked Omnidirectional

READING PERFORMANCE

  • Depth of Field
    4.3 to 35.0 cm / 1.7 to 13.8 in, depending on barcode density
  • Minimum Resolution
    Linear codes at 4 mils; 2D codes at 5 mils
  • Reading Indicators
    Loudspeaker (Polyphonic); buzzer; Datalogic’s patented ‘Green Spot’ technology for visual good-read feedback
  • Battery
    Replaceable battery pack with rechargeable
    Li-Ion batteries; 3.7v; 3,000 mAh (12 Watt-hours)
  • Wireless Charging
    2 charging options: Fast Charging or Standard Charging
  • Local Area Network (WLAN)
    IEEE 802.11 a/b/g/n; Wi-Fi Security Standards,
    WEP, WPA, WPA2, TKIP, AES, PSK, Cisco CCX v4 compatible
  • Personal Area Network (WPAN)
    Bluetooth wireless technology v4.0 – Dual Mode (Classic Bluetooth wireless technology and BLE available on Plus models)
  • NFC Communication
    NFC communication between device and cradle
  • Development
    SDK Suite available upon request
  • Interfaces
    USB 2.0 Client (with standard Micro-USB connector)

ENVIRONMENTAL

  • Drop Resistance
    Withstands repeated drops from 1.2 m / 4.0 ft onto concrete
  • Memory
    Joya Touch Basic:
    System RAM: 512 MB;
    System Flash: 512 MB Flash Disk
    Joya Touch Plus:
    System RAM: 512 MB;
    System Flash: 1 GB Flash Disk;
    4 GB additional Flash on SD card
  • Temperature Operating
    -10 to 50 ºC / 14 to 122 ºF
  • Bumpers
    Top and bottom rubber bumpers (lighting on top bumper)
  • Bumpers Colours Available
    Blue, Red, Green, Orange, Yellow & Grey
  • Dimensions
    Handheld: 14.5 x 7.67 x 3.38 cm / 5.7 x 3 x 1.33 in
    Pistol-Grip: 14.5 x 7.67 x 11.6 cm / 5.7 x 3 x 4.56 in
  • Weight (With Battery)
    Handheld: 275.0 g / 9.7 oz
    Pistol-Grip: 305.0 g / 10.7 oz
  • Display
    4.3 inch full touch TFT-LCD color display;
    FWVGA: 854 x 480 pixels; 16M colors, LED backlight
  • Configuration & Maintenance
    Datalogic Configuration Utility (DCU)
    Datalogic Firmware Utility (DFU)
    Datalogic Joya Touch Staging
  • Microprocessor
    XScale™ PXA310 @ 806 MHz; 32 bit
  • Operating System
    Microsoft Windows Embedded Compact 7 Professional

INTERFACES

  • Touch Screen
    Capacitive, multi-touch, Gorilla® Glass 3
  • Vibration
    Software programmable (Plus models)
  • Accelerometer
    3-Axis accelerometer
  • Softspot Technology
    Virtual trigger/scan key
  • Keyboard
    6 Fully programmable keys available in standard
  • Trigger
    Pistol-grip models only

WARRANTY

1-Year Factory Warranty
