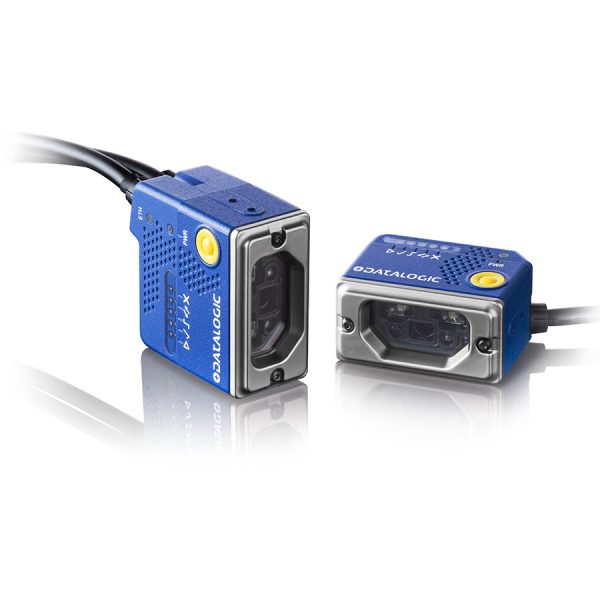

Datalogic Matrix 120™ 2D Ultra-Compact Imager Barcode Scanner

Datalogic Matrix 120™ 2D Ultra-Compact Imager Barcode Scanner

The Datalogic Matrix 120 imager leads the market for ease of use and has the highest industrial grade in its class; multiple models of the Matrix 120 imager allow it to cover an extensive range of applications in OEM and Manufacturing industries.

Description

FEATURED

  • Ultra-compact dimensions for easy integration
  • WVGA – 1.2 MP and wide angle models
  • Smart user selectable focus for high application flexibility
  • Embedded Ethernet connectivity
  • Serial and USB options on the same model
  • ESD versions for electronic applications
  • Polarized Version for 90° mounting and reflecting surfaces
  • Top industrial grade: IP65; operating temperatures: 0-45 ºC / 32 – 133 ºF
  • DL.Code software configurator for outstanding ease of setup
  • Xpress, Datalogic’s ‘Green Spot’ technology and intuitive HMI for top ease of use

Summary

The Matrix 120

The Datalogic Matrix 120™ imager is the smallest ultra-compact industrial 2D imager range in the market to fit any integration space and the smallest compact 2D imager with embedded Ethernet connectivity.

The Datalogic Matrix 120™ is available in different models, including a WVGA sensor for standard applications or a 1.2 MP sensor for high resolution bar codes. Moreover, a wide angle version makes the Matrix 120™ the perfect solution for proximity reading.

The Datalogic Matrix 120™ is characterized with the top industrial grade parts in its class (IP65 and 0-45 ºC / 32 – 133 ºF), with ESD safe models for applications in the electronic industry and features a glass-free reading window, suitable for the Food and Beverage environment.

As part of the full Matrix series, the Matrix 120™ leads the market for customer ease of use because of DL.CODE™ configuration software, X-Press™ button and intuitive HMI.

The Matrix 120™ is the entry level model of the bestin- class Matrix family of high performance industrial 2D imagers.

The Matrix 120™ is the perfect solution when small dimension, simple integration and performance are the key drivers. This makes the Matrix 120™ the ideal product for OEM customers: Chemical/Biomedical industry and Print & Apply applications. Additionally, this imager is perfect for entry level applications in the Factory Automation arena: Electronics, Packaging and Food/Beverage.

SUITABLE APPLICATIONS

  • Manufacturing of Electronics, Packaging, Food and Beverage
  • Chemical and Biomedical analysis
  • Kiosks
  • Print & Apply

Specifications

DECODING CAPABILITY

  • 1D / Linear Codes:
    1D Stacked: Interleave 2/5, Code 128, Code 39, EAN/UPC, PDF417, Micro PDF417, Pharmacode
    GS1 DATABAR (RSS) family, and many more
  • 2D Codes:
    Data Matrix, QR Code, Maxicode, Aztec, Microglyph
  • Postal Codes:
    Postal: Royal Mail, Japan Post, Planet, Postnet and many more
  • Code Orientation:
    Omnidirectional on any code type

CONNECTIVITY SPECIFICATIONS

  • READING RANGE (MIN – MAX):
    Matrix 120 – WVGA: 25-190mm [1.0-7.5 in]
    Matrix 120 – MP: 25-220mm [1.0-8.7 in]
  • FOCUSING SYSTEM:
    Manual adjustment in three pre-calibrated positions
    (45, 70, 125mm – WVGA ; 45, 80, 125mm – MP)
  • Digital Inputs:
    Two SW Programmable (PNP/NPN)
  • Digital Outputs:
    Two SW Programmable (PNP/NPN)
  • Device Programming:
    X-PRESS™ Human Machine Interface
    Windows-based SW (DL.CODE™) via Ethernet or Serial Interface
    Host Mode Programming seqiunetnecrfeasc seesnt over
  • Ethernet:
    Embedded (SER+ETH model only) 10/100 Mbit/s*
  • FOCUSING SYSTEM:
    Manual adjustment in three precalibrated positions (45, 70, 125mm – WVGA ; 45, 80, 125mm – MP)
  • SENSOR:
    CMOS sensor with Global Shutter/WVGA – 752×480 px CMOS sensor with Global Shutter/MP – 1280×960 px
  • FRAME RATE:
    up to 57 full-frame/s (WVGA model) , up to 36 full-frame/s (MP model)
  • ONBOARD MEMORY:
    128 MB
  • MULTILABEL/MULTICODE READING:
    Yes
  • VOLTAGE SUPPLY/POWER CONSUMPTION:
    5-30 VDC; 1.6 to 2.4 W
  • IP RATING:
    IP65
  • TEMPERATURE RANGE:
    0-45 ºC / 32 – 133 ºF
  • CASE MATERIAL:
    Zama (Zinc Alloy )- Plastic reading window cover
  • DIMENSIONS (TYPICAL VALUE):
    45.4 x 31.1 x 23.5 mm [1.8 x 1.2 x 1 in] (SER+USB model)
    45.4 x 48.5 x 23.5 mm [1.8 x 1.9 x 1 in] (SER+ETH model)
  • WEIGHT:
    117 g (4.1 oz) with cable (SER+USB model) – 200 g (7.1 oz) with cable (SER+ETH model)
  • ESD SAFE:
    Yes
  • EMBEDDED COMMUNICATION INTERFACES:
    RS-232/RS-422/USB 2.0 high speed (USB-CDC, USB-HID)
    Main RS-232 or RS-422 FD (2400 to 115200 bit/s)

120N1

120N2

120N3

120N4

120N5

120N6

120N7

Product – Scanner Only (1D)

Scanner Device only, additional accessories are required

Product – Scanner Only (2D)

Scanner Device only, additional accessories are required

Cables

Required, some fixed scanners have communication cables molded into the housing to connect to the connection box, output cables may still be required. Please refer to topography diagram in Reference manual for more information

Connection boxes (cbox) / Controllers

Required on all fixed mount scanning unless Quicklink Series connections are used. Please specify additional outputs if required and adapters

Output Modules

Optional (only required on certain models), only works with CBX500 & CBX800 connection boxes

Power Supplies/Cords

Additional Accessory – only required for certain cable sets

WEBSENTINEL SOFTWARE

(Optional) WebSentinel Plus is a very advanced monitor and information collector, a supervisory software solution for monitoring operational activities of reading devices through a single web browser-based interface. It collects data from scan points through an Ethernet TCP/IP network, and
presents the information flow as visual onscreen information. It also stores this information in a database and,
periodically or on demand, produces performance, diagnostic, and tracking reports.

EASE OF CARE (EoC) Repair/ Maintenance Agreements (Per Unit)

Optional on request
