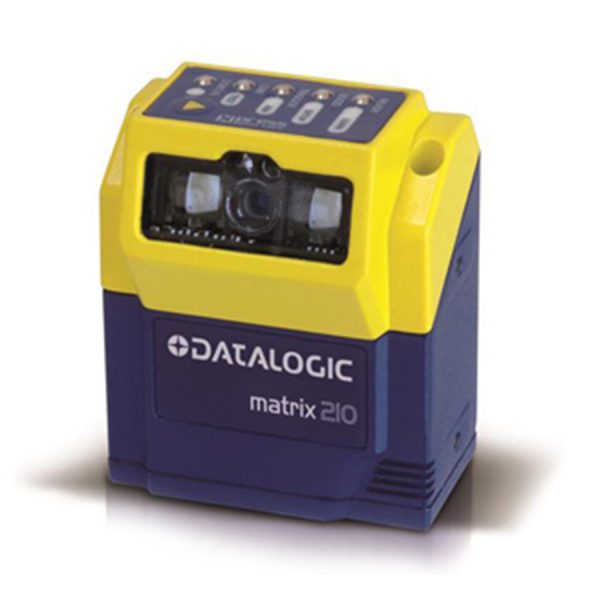

The Datalogic Matrix 210™ Visiset is the new Datalogic 2D reader offering extreme reading performance and integrated Ethernet in an ultra-compact housing. Thanks to the WVGA image sensor, capturing up to 60 frames per second and to the powerful internal illuminator, Matrix 210™ Visiset offer extreme dynamic reading capability.

Description

FEATURED

  • Image Based ID barcode reader
  • High performance on dynamic reading applications
  • Direct and 90° window models for smart mounting
  • Outstanding decoding capability on 1D, 2D, Stacked and Postal symbologies
  • X-PRESS™ for easy and intuitive setup
  • Optical aiming system
  • ID-NET™ embedded high speed connectivity
  • Region Of Interest Windowing for higher frame rate
  • Reading Indicators : Beeper, Datalogic ‘Green Spot’ Good Read Feedback, Good Read LED
  • Run Time Self Tuning for higher flexibility
  • 10 to 30Vdc power supply
  • Region Of Interest Windowing for higher frame rate
  • Integrated Ethernet barcode reader
  • Ultra compact dimensions
  • USB connectivity
  • Vertical or Horizantal models
  • IP65 (NEMA 4) water & dust resistance

Summary

EXTREME READING PERFORMANCE

The Datalogic Matrix 210™ Visiset is the new Datalogic 2D reader offering extreme reading performance and integrated Ethernet in a ultra-compact housing.
Thanks to the WVGA image sensor, capturing up to 60 frames per second and to the powerful internal illuminator, Matrix 210™ Visiset offer extreme dynamic reading capability.

The unrivalled decoding libraries running on the new high speed hardware platform deliver superior reading robustness and impressive decoding rates, supporting high system throughput and so improving the efficiency of productions.

ON-BAORD ETHERNET

The on-board Ethernet makes effective the transfer of both reading data and captured images, that can be easily and quickly uploaded on external PCs or servers, simply for storage or also for offline process analysis.

COMPACT & VERSATILE

Compactness and straight – 90° reading window allows a perfect contact reading capability and a simple mechanical integration into narrow spaces. Installation and maintenance are extremely easy thanks to the X-PRESS™ Interface with five LED bar graph and the multi-function key for immediate access to relevant functions such as Aiming, Setup, Automatic Learning, Test Mode.

DATALOGIC PATENTED ‘GREEN SPOT’ TECHNOLOGY

The Green Spot – projected onto the scanned object – provides easy and real-time feedback of the reading status without any additional supervisory software.

SUITABLE APPLICATIONS

  • DPM reading and verification
  • Electronic PCB assembly process
  • Media device traceability
  • Pharmaceutical manufacturing and packaging
  • Food & Beverage
  • Print & Apply systems
  • Access Control systems

Specifications

DECODING CAPABILITY

  • 1D / Linear Codes:
    1D Stacked: Interleave 2/5, Code 128, Code 39, EAN/UPC, PDF417, Micro PDF417, Pharmacode
    GS1 DATABAR (RSS) family, and many more
  • 2D Codes:
    Data Matrix, QR Code, Maxicode, Aztec, Microglyph
  • Postal Codes:
    Postal: Royal Mail, Japan Post, Planet, Postnet and many more
  • Code Quality Verification:
    ISO/IEC 16022 (Data Matrix), ISO/IEC 18004 (QR Code)
    ISO/IEC 15415 (Print quality test specifications for 2D codes)
    ISO/IEC 15416 (Print quality test specifications for linear codes)
    AS9132A (Data Matrix Quality Requirements for Parts Marking)
    AIM DPM (Global Direct Part Mark Quality Guideline)

CONNECTIVITY SPECIFICATIONS

  • Communication Interfaces:
    RS232 + RS232/RS422/RS485 up to 115.2 Kbit/s
    ID-NET™ port up to 1 Mbps, USB 2.0 up to 921.6 Kbit/s
  • Connectivity Modes:
    Pass Through, Master/Slave, Multiplexer, USB Point To Point
  • Digital Inputs:
    Two SW programmable, optocoupled and polarity insensitive
  • Digital Outputs:
    Two SW programmable opto coupled
  • Device Programming:
    X-PRESS™ Human Machine Interface, Windows™ based SW (VisiSet™) via serial or USB link
  • User Interface:
    Serial Host Mode Programming sequences
    X-PRESS™ Human Machine Interface, Beeper, Programmable Push Button,
    LEDs (Status, Com, Trigger, Good, Ready, Power On, Good read Spot)

PHYSICAL CHARACTERISTICS

  • Dimensions:
    Matrix 210 21x-1xx: 50 x 25 x 45 mm (1.97 x 0.98 x 1.77 in)
    Matrix 210 21x-0xx: 54 x 32 x 45 mm (2.12 x 1.26 x 1.77 in)
  • Weight:
    60g. (2.1 oz.) without cable
  • Case Material:
    Aluminium alloy
  • Operating Temperature:
    0.5″ (13 mm)
  • Storage Temperature:
    -20 to 70 °C (-4 to 158 °F)
  • Humidity:
    90% non condensing
  • Protection Class:
    IP65
  • Optical Features:
    WVGA (752 x 480) CMOS Sensor with Global Shutter
  • Frame Rate:
    60 frame/s
  • Reading Window:
    Direct or 90°
  • Reading Angles:
    Max. Pitch: ± 35°; Tilt: 0-360°
  • Power Supply:
    Matrix 210 21x-x0x: 10 to 30 VDC
    Matrix 210 21x-x2x: 5 VDC
  • Power Consumption:
    Matrix 210 21x-x0x: 3.6 W max; 3.0 W typ.
    Matrix 210 21x-x2x: 2.5 W max; 2.0 W typ.

Software Adjustable Focus Models

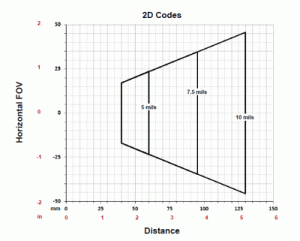

210N-FOV-2D-CODES

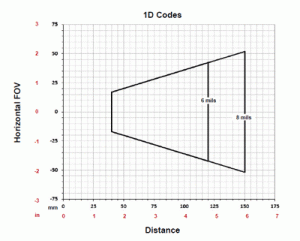

210N-FOV2 (1)

Cables

Required, some fixed scanners have communication cables molded into the housing to connect to the connection box, output cables may still be required. Please refer to topography diagram in Reference manual for more information

Output Modules

Optional (only required on certain models), only works with CBX500 & CBX800 connection boxes

Power Supplies/Cords

Additional Accessory – only required for certain cable sets

EASE OF CARE (EoC) Repair/ Maintenance Agreements (Per Unit)

Optional on request

WEBSENTINEL SOFTWARE

(Optional) WebSentinel Plus is a very advanced monitor and information collector, a supervisory software solution for monitoring operational activities of reading devices through a single web browser-based interface. It collects data from scan points through an Ethernet TCP/IP network, and
presents the information flow as visual onscreen information. It also stores this information in a database and,
periodically or on demand, produces performance, diagnostic, and tracking reports.
