Datalogic Matrix 410™ 2D Fixed Mount Imager Barcode Scanner

Datalogic Matrix 410™ 2D Fixed Mount Imager Barcode Scanner

The Datalogic Matrix 410™ Visiset is the modular, flexible and versatile compact bar code 2D reader for industrial applications embedding 1.3 and 2.0-megapixel sensors. Matrix 410™ features excellent performances in reading and verifying, easy setup, thanks to the X-PRESS™ interface and patented Blue Diamonds™ system, ease of use, extreme flexibility, high versatility and industrial strength.

Description

FEATURED

  • Image based ID barcode reader
  • Modular design
  • 1.3 Mpx (1280 x 1024) @ 27 FPS CMOS sensor
  • 2 Mpx (1600 x 1200) @ 15 FPS CCD sensor
  • Red and white LED illuminators
  • Pointing system & Good read spot
  • Adjustable reading distance through C-Mount lenses
  • Outstanding decoding capability on 1D, 2D, Stacked and Postal symbologies
  • X-PRESS™ for easy and intuitive setup
  • Blue Diamonds™ optical aiming and focusing system
  • ID-NET™ embedded interface for high speed connectivity
  • Excellent reading performance on Dot Pin Marking Applications
  • Code Quality verification capability
  • Built-in Ethernet Connectivity
  • Extended fieldbus connectivity through a complete range of modular connection boxes and accessories
  • IP67 (NEMA 6) rugged industrial housing

Summary

EXTREME READING CAPABILITIES

The Datalogic Matrix 410™ Visiset ID image based barcode reader is an industrial compact 2D reader that combines image capturing, decodig and communnicating in a single compact and versatile product.

ON-BAORD ETHERNET

The Datalogic Matrix 410™ Visiset is powered by a new engine, a high speed industrial micro-processor, optimized for image processing and ethernet connectivity. The result is a superior barcode reading speed and robustness, especially for 2D codes and DPM; the powerful proprietary decoding libraries provide the Matrix 410™ Visiset with unrivalled performance even on damaged and low-quality codes.

CAPTURING CAPABILITY

The Matrix 410™ Visiset strongly excels for throughput in data transfer over the Ethernet; it is capable to transmit over 4 SXGA (1.3 MP) images per second while capturing and decoding at a normal rate; the high capacitance channel enables real-time massive image transfer, even with a full working resolution.

COMMUNICATION

The embedded high speed ID-NET™ communication interface enables an efficient and fast clustering of multiple reader; this offers the best modularity of the building block approach and always the optimal balance between price and performance. Matrix 410™ Visiset makes better the remote slave reader configuration, a new function enabling the reader parameter setup over an ID-NET link; the system configuration and maintenance are so easier and efficient than ever.

SUITABLE APPLICATIONS

  • DPM reading and verification
  • Tires manufacturing & logistic
  • Large PCB’s tracking
  • Electronic products tracking
  • Distribution & Retail
  • Warehouse applications
  • Chemical & Pharmaceutical
  • Medical devices traceability
  • Chemical & Biomedical analysis machines
  • Food & Beverage
  • Work in Progress Traceability
  • Code Quality Control

Specifications

DECODING CAPABILITY

  • 1D / Linear Codes:
    1D Stacked: Interleave 2/5, Code 128, Code 39, EAN/UPC, PDF417, Micro PDF417, Pharmacode
    GS1 DATABAR (RSS) family, and many more
  • 2D Codes:
    Data Matrix, QR Code, Maxicode, Aztec, Microglyph
  • Postal Codes:
    Postal: Royal Mail, Japan Post, Planet, Postnet and many more
  • Code Quality Verification:
    AS9132A (Data Matrix Quality Requirements for Parts Marking),
    ISO/IEC 15415 (Print quality test specifications for 2D codes),
    ISO/IEC 15416 (Print quality test specifications for linear codes),
    ISO/IEC 16022 (DataMatrix), ISO/IEC 18004 (QR-Code)
    AIM DPM (Global Direct Part Mark Quality Guideline)

CONNECTIVITY SPECIFICATIONS

  • Communication Interfaces:
    RS232 + RS232/RS422/RS485 up to 115.2 Kbit/s
    Ethernet IEEE 802.3 10 Base T and IEEE 802.3U 100 BaseTX compliant
    ID-NET™ port up to 1 Mbps
  • Connectivity Modes:
    Pass Through, Master/Slave, Multiplexer, Ethernet point to point
  • Digital Inputs:
    Two SW programmable, optocoupled and polarity insensitive
  • Digital Outputs:
    Two SW programmable, optocoupled
  • Device Programming:
    X-PRESS™ Human Machine Interface, Windows™ based SW (VisiSet™) via serial or Ethernet link
  • User Interface:
    X-PRESS™ Human Machine Interface
    Beeper, Programmable Push Button, LEDs (Status, Com, Trigger, Good, Ready, Power on, Network presence, Good read Spot)

PHYSICAL CHARACTERISTICS

  • Dimensions:
    123 x 60,5 x 87 mm (4.84 x 2.38 x 3.42 in) with protective lens cover
  • Weight:
    482 g (17 oz.) with lens and internal illuminator
  • Case Material:
    Aluminum
  • Operating Temperature:
    0° to + 50 °C (32 to 122°F)
  • Storage Temperature:
    -20 to 70 °C (-4 to 158 °F)
  • Humidity:
    90% non condensing
  • Protection Class:
    IP67
  • Optical Features:
    MATRIX 410 – 4xx-xxx: SXGA (1280 x 1024) CMOS sensor
    MATRIX 410 – 6xx-xxx: UXGA (1600 x 1200) CCD sensor
  • Frame Rate:
    MATRIX 410 – 4xx-xxx: 27 frames/s
    MATRIX 410 – 6xx-xxx: 15 frames/S
  • Reading Angles:
    Max. Pitch: ± 35°; Tilt: 0-360°
  • Power Supply:
    10 to 30 VDC
  • Power Consumption:
    8 W max; 5W typical

The FOV for a Matrix 410 600-0x0 base using the 16 mm lens at a focus distance of 200 mm is:

FOVH = 2 [(200 mm + 35 mm) tan (24°/2)] = 100 mm
FOVV = 2 [(200 mm + 35 mm) tan (18°/2)] = 74 mm

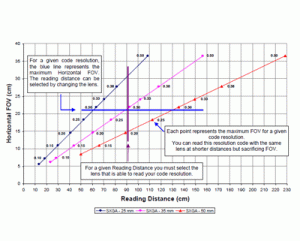

4101_1

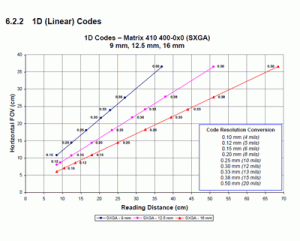

4102_1

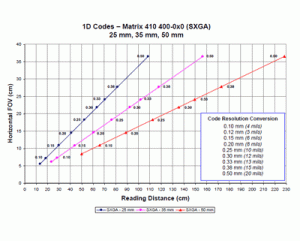

4103_1

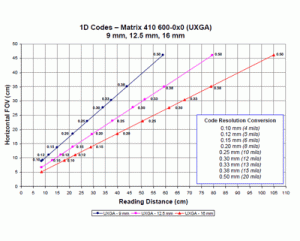

4104_1

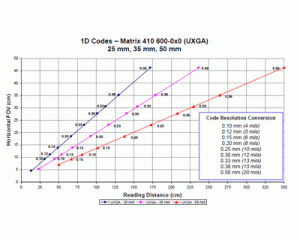

4105_1

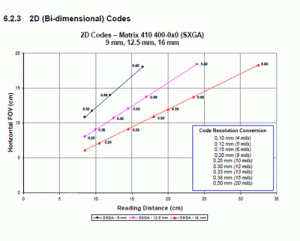

4106_1

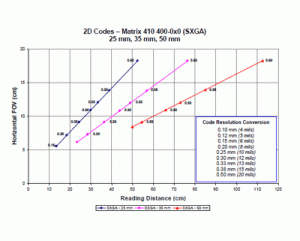

4107_1

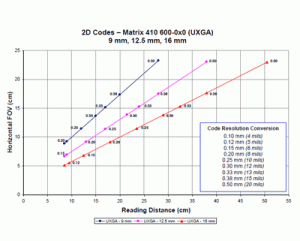

4108_1

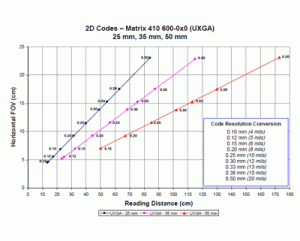

4109
