Datalogic Matrix 410N™ DL-Code 2D Fixed Imager Barcode Scanner

Datalogic Matrix 410N™ DL-Code 2D Fixed Imager Barcode Scanner

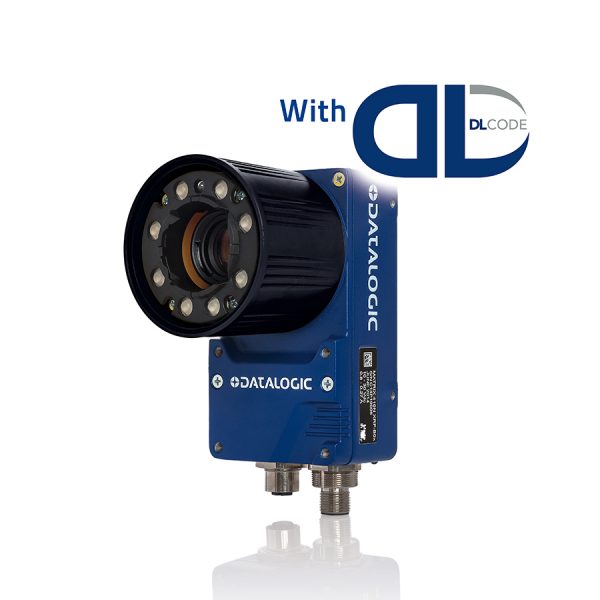

The Datalogic Matrix 410N™ (DL-Code) is an industrial compact 2D reader that combines image capturing, decoding and communicating in a single compact and versatile product. MATRIX 410N™ (DL-Code) is powered by a new engine, a high speed industrial micro processor, optimized for image processing and Ethernet connectivity.

Description

FEATURED

  • Ethernet Connectivity
  • 1,3 (SXGA) & 2,0 (UXGA) MPixels models
  • Adjustable focus through C-Mount lenses
  • Outstanding decoding capability on 1D, 2D, Stacked, Postal symbologies
  • Excellent Performance on DPM Application
  • Region Of Interest Windowing for higher frame rate
  • Blue Diamonds™ aiming and focusing system
  • X-PRESS™ for easy and intuitive setup
  • Run Time Self Tuning for higher flexibility
  • ID-NET™ embedded high speed connectivity
  • Code Quality Verification Capability

Summary

EXTREME READING CAPABILITIES

The Datalogic Matrix 410N™ (DL-Code) ID image based barcode reader is an industrial compact 2D reader that combines image capturing, decodig and communnicating in a single compact and versatile product.

ON-BAORD ETHERNET

The Datalogic Matrix 410N™ (DL-Code) is powered by a new engine, a high speed industrial micro-processor, optimized for image processing and ethernet connectivity. The result is a superior barcode reading speed and robustness, especially for 2D codes and DPM; the powerful proprietary decoding libraries provide the Matrix 410™ (DL-Code) with unrivalled performance even on damaged and low quality codes.

CAPTURING CAPABILITY

The Matrix 410N™ (DL-Code) strongly excels for throughput in data transfer over the Ethernet; it is capable to transmit over 4 SXGA (1.3 MP) images per second, while capturing and decoding at a normal rate; the high capacitance channel enables real time massive image transfer, even with a full working resolution

COMMUNICATION

The embedded high speed ID-NET™ communication interface enables an efficient and fast clustering of multiple reader; this offers the best modularity of the building block approach and always the optimal balance between price and performance. Matrix 410N™ makes better the remote slave reader configuration, a new function enabling the reader parameter setup over an ID-NET link; the system configuration and maintenance are so easier and efficient than ever.

SUITABLE APPLICATIONS

  • DPM reading and verification
  • Tires manufacturing & logistic
  • Large PCB’s tracking
  • Electronic products tracking
  • Distribution & Retail
  • Warehouse applications
  • Code Quality Control

Specifications

DECODING CAPABILITY

  • 1D / Linear Codes:
    1D Stacked: Interleave 2/5, Code 128, Code 39, EAN/UPC, PDF417, Micro PDF417, Pharmacode
    GS1 DATABAR (RSS) family, and many more
  • 2D Codes:
    Data Matrix, QR Code, Maxicode, Aztec, Microglyph
  • Postal Codes:
    Postal: Royal Mail, Japan Post, Planet, Postnet and many more
  • Code Quality Verification:
    AS9132A (Data Matrix Quality Requirements for Parts Marking),
    ISO/IEC 15415 (Print quality test specifications for 2D codes),
    ISO/IEC 15416 (Print quality test specifications for linear codes),
    ISO/IEC 16022 (DataMatrix), ISO/IEC 18004 (QR-Code)
    AIM DPM (Global Direct Part Mark Quality Guideline)

CONNECTIVITY SPECIFICATIONS

  • Communication Interfaces:
    RS232 + RS232/RS422/RS485 up to 115.2 Kbit/s
    Ethernet IEEE 802.3 10 Base T and IEEE 802.3U 100 BaseTX compliant
    ID-NET™ port up to 1 Mbps
  • Connectivity Modes:
    Pass Through, Master/Slave, Multiplexer, Ethernet point to point
  • Digital Inputs:
    Two SW programmable, optocoupled and polarity insensitive
  • Digital Outputs:
    Two SW programmable, optocoupled
  • Device Programming:
    X-PRESS™ Human Machine Interface, Windows™ based SW (VisiSet™) via serial or Ethernet link
  • User Interface:
    X-PRESS™ Human Machine Interface
    Beeper, Programmable Push Button, LEDs (Status, Com, Trigger, Good, Ready, Power on, Network presence, Good read Spot)

PHYSICAL CHARACTERISTICS

  • Dimensions:
    123 x 60,5 x 87 mm (4.84 x 2.38 x 3.42 in) with protective lens cover
  • Weight:
    482 g (17 oz.) with lens and internal illuminator
  • Case Material:
    Aluminium
  • Operating Temperature:
    0° to + 50 °C (32 to 122°F)
  • Storage Temperature:
    -20 to 70 °C (-4 to 158 °F)
  • Humidity:
    90% non condensing
  • Protection Class:
    IP67
  • Optical Features:
    MATRIX 410 – 4xx-xxx: SXGA (1280 x 1024) CMOS sensor
    MATRIX 410 – 6xx-xxx: UXGA (1600 x 1200) CCD sensor
  • Frame Rate:
    MATRIX 410 – 4xx-xxx: 27 frames/s
    MATRIX 410 – 6xx-xxx: 15 frames/S
  • Reading Angles:
    Max. Pitch: ± 35°; Tilt: 0-360°
  • Power Supply:
    10 to 30 VDC
  • Power Consumption:
    8 W max; 5W typical

410N1

410N2

410N3

410N4

410N5

410N6

410N7

410N8

410N9

410N10

410N11

410N12

410N13

410N14

410N15

410N16

410N17

410N18

410N19

410N20

410N21

410N22

410N23

410N24

410N25

410N26

410N27

410N28

Product – Scanner Only (2D)

Scanner Device only, lighting & lens are required. Additional accessories are required

Product – Lighting

Lighting is required for illumination with this device

Product – Lens

This product requires a lens for Field of View (FOV) and Depth of Field (DOF)

Cables

Required, some fixed scanners have communication cables molded into the housing to connect to the connection box, output cables may still be required. Please refer to topography diagram in Reference manual for more information

Connection boxes (cbox) / Controllers

Required on all fixed mount scanning unless Quicklink Series connections are used. Please specify additional outputs if required and adapters

Output Modules

Optional (only required on certain models), only works with CBX500 & CBX800 connection boxes

BM150 DISPLAY MODULE

BM310 PROFIBUS IP65 MODULE

Power Supplies/Cords

Additional Accessory – only required for certain cable sets

Miscellaneous

Optional accessories

WEBSENTINEL SOFTWARE

(Optional) WebSentinel Plus is a very advanced monitor and information collector, a supervisory software solution for monitoring operational activities of reading devices through a single web browser-based interface. It collects data from scan points through an Ethernet TCP/IP network, and
presents the information flow as visual onscreen information. It also stores this information in a database and,
periodically or on demand, produces performance, diagnostic, and tracking reports.
