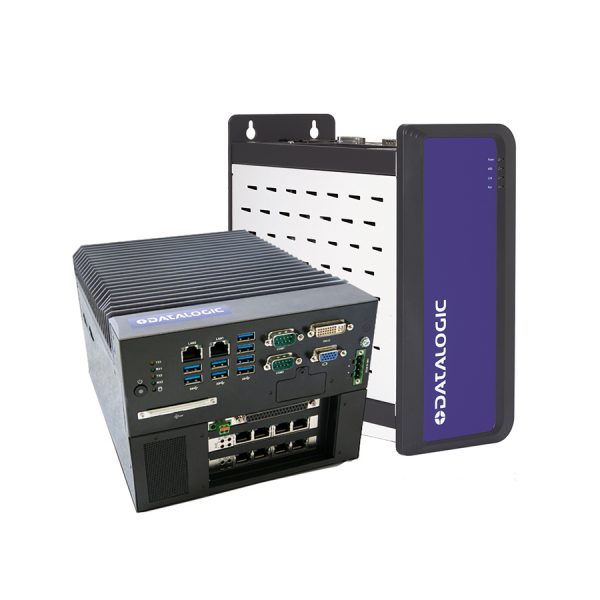

The MX-E Series of Vision Processors provides the highest performance in image processing with unmatched flexibility through GigE multi-camera connectivity support. The E100 Series features a state-of-art grayscale or colour CMOS image sensor and supports standard vision GigE connectivity. Thanks to their small housing, E100 Series allow for easy installation in locations where space is constrained.

Description

FEATURED

  • MX-E SERIES – HIGHLIGHTS
    Rugged, industrial, high-powered vision processors
    State-of-the-art Intel® chipsets and the highest-quality, industry-leading hardware components
    Long-term product availability
    Ethernet (GigE Vision) connectivity and multi-camera support
    Three models for different performance levels and ten different hardware configurations
    Compatible with a wide range of cameras from VGA up to 16MP resolution (area scan), from 2K up to 8K (linescan)
    Universal dongle for easier SW license management
    Complete IMPACT software suite included for ultimate programming flexibility – addresses any inspection and user interface needs
    Two or four-channel Power over Ethernet (PoE) camera ports – PoE compliant cameras need no power cables and support up to 100 meter cable lengths
  • MX-E SERIES – BENEFITS
    The ultimate Intel® multi-core chipsets guarantee extraordinary computing power and maximize multi-camera inspection speed
    The highest quality hardware components in a rugged and compact processor chassis guarantee robustness and long life service even in the harshest industrial environments
    Multi-camera capability – allows data collection and analysis from multiple points and reduces integration costs
    Three different models allow the user to select the correct level of performance based on the application needs
    Simplifies cabling by eliminating the need for camera power cables
    Universal dongles enable IMPACT software license and add-on license functionalities on all the vision processor models. Users can move licenses from one vision processor to another
    Ten hardware configuration options deliver unmatched application flexibility
  • E100 SERIES CAMERAS – BENEFITS
    Reduced size for minimum space requirements
    GigE vision camera interface
    High frame rate for superior image acquisition and processing
    State-of-art grayscale and colour CMOS image sensors
    C-mount lens support
    IP30 rated housing
    CE, FCC and RoHS compliant
  • E100 SERIES CAMERAS – HIGHLIGHTS
    GigE compatible with MX-E Series vision processors
    VGA to 5MP resolution, in both grayscale and colour
    CMOS image sensors for high-speed performance
    Power over Ethernet (PoE) guarantees minimum wiring and easy installation
    Compact housing (as small as 29 mm x 29 mm x 60 mm) enables mounting in space-constrained locations
    High frame rate ensures image capture at rates up to 300 frames per second (fps)
    Trigger and strobe I/O provide outstanding integration flexibility

Summary

MX-E SERIES

The MX-E Series of Vision Processors provides the highest performance in image processing with unmatched flexibility through GigE multi-camera connectivity support. The MX-E Series allows users to choose the level of system performance and complexity based on their application needs. Three different MX-E models are available, each featuring the latest Intel chipsets and high speed PoE (Power over Ethernet) camera ports.

MX-E vision processors are equipped with NPN or PNP digital I/Os and power two or four GigE cameras. The MX-E20 is an entry-level, affordable processor featuring an Intel® Celeron dual core 1.4 GHz processor and two independent Gigabit PoE camera ports. The MX-E20 offers a cost effective means to migrate from smart camera applications to an embedded vision system.

The MX-E40 Series is a rugged and compact embedded vision processor that features Intel® multi-core processors and two or four independent Gigabit PoE camera ports. The MX-E40’s long-life embedded components provide a robust and reliable vision system for critical inspection applications. The next generation MX-E80 Vision Processor extends the power and performance of the MX-E Series to applications that demand faster, more advanced algorithms and higherresolutions with its Intel® Core™ i7 quad-core processor, 8GB memory and two or four independent Gigabit PoE ports.

Powered by IMPACT, the MX-E Series is the ideal solution for the deployment of embedded vision systems with multiple independent inspection points.

MX-E SERIES – E100 SERIES CAMERAS

The E100 Series features a state-of-art grayscale or color CMOS image sensor and supports standard vision GigE connectivity. Thanks to their small housing, E100 Series allow for easy installation in locations where space is constrained.

The E100 Series is the ideal solution for fast embedded vision system integration and ensures an outstanding price/performance ratio. High resolution and frame rate guarantee superior image acquisition for tackling the most complex machine vision applications.

SUITABLE APPLICATIONS

  • Packaging and labelling
    Correct positioning of color printing alignment markers
    Lot number and best before date OCR reading
    Bottle cap inspection
    Packaging artwork verification
    Label position, orientation and color
  • Medical and Pharma
    Packaging/sealing verification
    GTIN, serial and batch number OCR reading
    Medical device assembly control
    Vial in tray counting
    Color and shape detection of medical tablets
    Inspection of flip-off caps (presence and color)
  • Automotive
    Component assembling verification
    Dashboard inspection
    Electric fuse box inspection
  • Electronics
    Correct assembling verification
    Component alignment/positioning

Specifications

Product – MX-E20 PROCESSOR ONLY

PROCESSOR CAMERA Device only, additional accessories are required
The MX-E20 is an entry-level, affordable processor featuring an Intel® Celeron dual core 1.4 GHz processor and two independent Gigabit PoE camera ports.

Product – MX-E40 PROCESSOR ONLY

PROCESSOR CAMERA Device only, additional accessories are required.
The MX-E40 Series is a rugged and compact embedded vision processor that features Intel® multi-core processors and two or four independent Gigabit PoE camera ports.

Product – MX-E80 PROCESSOR ONLY

PROCESSOR CAMERA Device only, additional accessories are required.
The next generation MX-E80 Vision Processor extends the power and performance of the MX-E Series to applications that demand faster, more advanced algorithms and higher resolutions with its Intel® Core™ i7 quad-core processor, 8GB memory and two or four independent Gigabit PoE ports.

Cables – Processor

Required, some fixed scanners have communication cables molded into the housing to connect to the connection box, output cables may still be required. Please refer to topography diagram in Reference manual for more information

Software

Required depending your application – please refer to reference manual or contact DCI sales

Cameras

The E100 Series features a state-of-art grayscale or color CMOS image sensor and supports standard vision GigE connectivity. Thanks to their small housing, E100 Series allow for easy installation in locations where space is constrained. The E100 Series is the ideal solution for fast embedded vision system integration and ensures an outstanding price/performance ratio. High resolution and frame rate guarantee superior image acquisition for tackling the most complex machine vision applications.

Cables – Camera

Required depending on which camera has been selected

Mounts/Stands – Camera

Optional

Miscellaneous

May be required depending your application – please refer to reference manual or contact DCI sales

EASE OF CARE (EoC) Repair/ Maintenance Agreements (Per Unit)

Optional on request

DATALOGIC MX-E90, EOC, 5-7 Days, 5 Years

DATALOGIC 1 Year EWarr M-camera - $1K to 3K

Product price
