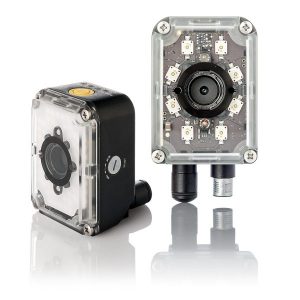

Datalogic P Series 2D Fixed Imager Smart Camera

Datalogic P Series 2D Fixed Imager Smart Camera

The Datalogic P-Series is an ultra-compact cost-effective smart camera offering advanced machine vision functionalities in a fully embedded stand-alone device. The P-Series is available with grey-scale or colour CMOS image sensors with two different resolutions: VGA and 1.3MP. Lenses and illuminators are fully interchangeable and can be mounted and replaced by the user.

Description

FEATURED

  • Fully integrated ultra-compact device
  • Rotating connectors for 0°& 90° form factor
  • Rugged IP67 rated housing
  • VGA and 1.3 megapixel resolutions
  • Grey-scale and colour CMOS sensor
  • Interchangeable lenses, illuminators and filters
  • Built-in Serial and Ethernet interfaces
  • Powered by IMPACT LITE software

Summary

EXTREME READING PERFORMANCE

The Datalogic P-Series is available with gray-scale or color CMOS image sensors with two different resolutions: 640×480 pixels at over 120fps and 1280×1024 pixels at up to 60fps. Five focal lengths and nine lighting options result in 90 different combinations delivering outstanding installation flexibility while offering superior image acquisition capabilities.

With compact dimensions and the rotating connectors, the P-Series can be installed even in extremely narrow spaces. The IP67 rated metal housing guarantees maximum protection in the most harsh factory environments containing dust, water and oil. The Datalogic P-Series is powered by the IMPACT LITE software package. With more than 25 inspection tools, IMPACT LITE revolutionizes device programming by making the inspection configuration quick and intuitive. Controls are dragged and dropped into the inspection tree for easy and simple quality control deployment.

SUITABLE APPLICATIONS

  • Packaging and labelling
    • Correct positioning of colour printing alignment markers
    • Lot number and best before date OCR reading
    • Bottle cap inspection
    • Packaging artwork verification
    • Label position, orientation and colour
  • Medical and Pharma
    • Packaging/sealing verification
    • GTIN, serial and batch number OCR reading
    • Medical device assembly control
    • Vial in tray counting
    • Color and shape detection of medical tablets
    • Inspection of flip-off caps (presence and colour)
  • Automotive
    • Component assembling verification
    • Dashboard inspection
    • Electric fuse box inspection
  • Electronics
    • Correct assembling verification
    • Component alignment/positioning

Specifications

TECHNICAL DATA

  • Resolution:
    VGA (640 x 480 pixels)
  • Imager Type:
    Gray-scale CMOS global shutter
  • Pixel Size:
    5.3 um
  • Imager Size:
    1/4” – 1/1.8”
  • Frame Rate:
    120 fps – 60 fps
  • Processor:
    660 MHz DSP
  • Dedicated I/O:
    1 IN
  • Configurable I/O:
    1 IN / 3 OUT
  • I/O Type:
    Isolated INPUT
    Non-isolated OUTPUT
  • External Button:
    Yes
  • Ethernet:
    10/100 Mbit/s
  • RS-232 Serial:
    Yes
  • RAM:
    256 MB
  • Storage:
    256 MB
  • Lens Options:
    6mm / 9mm / 12mm / 16mm / 25 mm
  • Illuminator Options:
    Wide angle 8 LEDs: Red, White, IR, Blue, Red with Polarizer, White with Polarizer
    Multi-chain 50 LEDs: Red, White, Blue
  • Power Requirements:
    10 – 30 Vdc
  • Protection Class:
    IP67
  • Dimensions:
    95 x 54 x 43 mm (3.7 x 2.1 x 1.7 in.) – Connector @ 0°
    75 x 54 x 62 mm (3.0 x 2.1 x 2.4 in.) – Connector @ 90°
  • Case Material:
    Aluminium, Plastic protective window cover
  • Operating Temperature:
    0 to 50 °C (32 to 122 °F)
  • Storage Temperature:
    -20 to 70 °C (-4 to 158 °F)
  • Humidity:
    90% non condensing
  • Certifications:
    CE, CSA

Product – Scanner Only

Scanner Device only, additional accessories are required

Lens

Required depeding your application – please refer to reference manual or contact DCI sales

Lighting

Required depeding your application – please refer to reference manual or contact DCI sales

Filters

May be required depending your application – please refer to reference manual or contact DCI sales

Cables

Required, some fixed scanners have communication cables molded into the housing to connect to the connection box, output cables may still be required. Please refer to topography diagram in Reference manual for more information

Connection boxes (cbox) / Controllers

Required on all fixed mount scanning unless Quicklink Series connections are used. Please specify additional outputs if required and adapters

Output Modules

Optional (only required on certain models), only works with CBX500 & CBX800 connection boxes

Power Supplies/Cords

Additional Accessory – only required for certain cable sets

Miscellaneous

May be required depending your application – please refer to reference manual or contact DCI sales

Impact Software

EASE OF CARE (EoC) Repair/ Maintenance Agreements (Per Unit)

Optional on request
