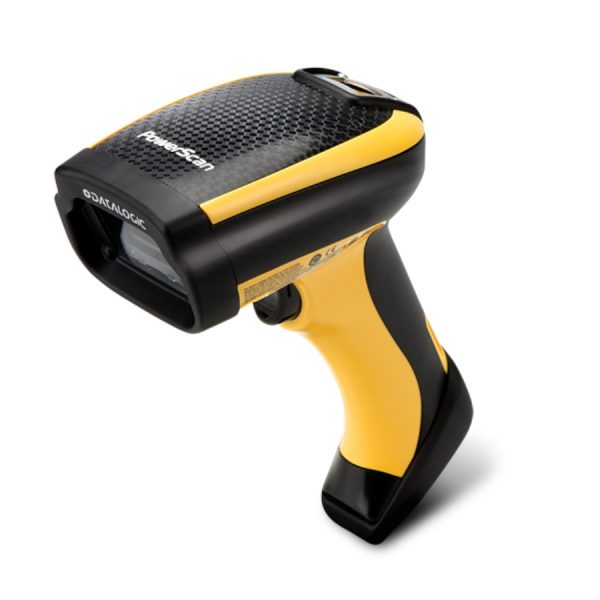

Datalogic Powerscan PD9500 2D DPM Barcode Scanner

Datalogic Powerscan PD9500 2D DPM Barcode Scanner

Direct Part Marking (DPM) is a process that allows users to imprint a bar code directly on an item instead of printing the code on a paper label. Different technologies are available to directly mark objects: laser / chemical etching, dot peening and ink jet printing. Each of these methods has specific advantages and disadvantages in terms of durability, cost and ease of reading.

Datalogic PowerScan PD9500 2D DPM Barcode Scanner

Description

FEATURED

  • Snappy omnidirectional reading from contact to over 1.0 m / 3.3 ft
  • Highly visible Datalogic’s new instinctive ‘frame’ 4-dot
    aimer with cross target scanning
  • New ‘soft white light’ illumination
  • Datalogic’s Motionix™ motion-sensing technology
  • Ergonomic shape provides hours of tireless data collection for the user
  • Supports 1D, stacked and 2D codes, postal codes and image capture
  • Supports any kind of DPM
  • Datalogic’s 3GL™ (3 Green Lights) technology and loud
    beeper for good read feedback
  • Datalogic Aladdin configuration program available for download no charge
  • JavaPOS Utilities are available for download no charge
  • OPOS Utilities are available for download at no charge
  • Water and Particulate Sealing Rating: IP65

Summary

EXCELLENT READING CAPABILITIES

The PowerScan™ PD9530-DPM reader is a rugged handheld area imager specifically addressed and capable of reading codes marked with DPM.

The PowerScan PD9530-DPM imager includes the latest optics and software from Datalogic to make the reading of codes with DPM easy and intuitive. The typical reading distance is from contact to 4-5 cm / 1.5-1.9 in, depending on the DPM technology used, the code resolution, and the material and surface type.

The scanner is also capable of reading standard bar codes printed on labels. It is based on a high density optic which allows the capture of very small, high-resolution codes in a range from near contact up to 15.0 cm / 5.9 in.

The intuitive aiming system allows the highest first-pass reading rate. Additionally, the PowerScan 9530-DPM area imager uses a soft-pulsed white illumination light resulting in reduced flashes, which is very gentle on users’ eyes.

Datalogic’s Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode.

SUITABLE APPLICATIONS

  • Manufacturing
  • Warehousing
  • Transport & Logistics

Specifications

DECODING CAPABILITY

  • 1D / Linear Codes:
    Auto discriminates all standard 1D codes includingGS1 DataBar™ linear codes
  • 2D Codes:
    Aztec Code; China Han Xin Code; Data matrix; MaxiCode,
    Micro QR Code;QR Code
  • Postal Codes:
    Australian post; China Post, IMB; Japanese Post; KIX Post; Planet Code;
    Portuguese Post; Postnetr; Royal Mail Code 9RM4SCC); Swedish Post
  • Stacked Codes:
    EAN/JAN Composites; GS1 DataBar Composites;GS1 DataBar Expanded Stacked;
    GS1 DataBarStacked; GS1 DataBar Stacked Omnidirectional;
    Macro PDF; Micro PDF417; PDF417; UPC A/E Composites

READING PERFORMANCE

  • Direct Part Marking (DPM) Capability:
    Codes are readable when marked by laser or checmical etching or ink jet printed;
    Data Matrix codes are also readable when marked by dot peening
  • Image Capture:
    Graphic Formats: BMP, JPEG TIFF
    GreyScale; 256, 16, 2; JPEG, TIFF
  • Image Sensor:
    PD9530: 864 x 544; PD9530-HP/PD9530-HPE: 1280 x 1024
  • Light Source:
    Illumination: White LED reading Light; Aiming 630 – 670 nm
  • Print Contrast Ratio (Minimum):
    15%
  • Reading Angle:
    Pitch: +/- 40°; Roll (Tilt): 360°; Skew (Yaw): +/-40°
  • Reading Indicators:
    Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’
    Good Read Feedback; Good Read LED. Datalogic 3GL™ (Three Green Lights) Technology
    and loud beeper for good-read feedback;
    Datalogic ‘Green Spot’on the code; Dual Good Read LEDs
  • Resolution (Maximum):
    PD9530: 1D Codes: 4 mil; 2D Codes: 75 mil
    PD9530-HP/PD9530-HPE: 1D Codes: 2.5 mil; 2D Codes: 4 mil

ENVIRONMENTAL

  • Drop Resistance:
    Withstands repeated drops from 2.0 m/6.6 ft onto a concrete surface
  • Particulate and Water Sealing:
    IP65
  • Temperature Operating:
    -20 to 50 °C / -4 to 122 °F
  • Storage/Transport:
    -40 to 60 °C / -40 to 140 °F

WARRANTY

3-Year Factory Warranty

Product – Kit

Kit Include specified cable only, please select additional accessories if required.

Product – Scanner Only

Kit Include specified cable & Stand, please select additional accessories if required

Cables

Please specify cable type if required (additional accessory)

Fieldbus Converter (Ethernet/ Profinet) / Miscellaneous

Compact-size industrial gateway allowing the connection of devices equipped with a standard RS-232 communication interface into PROFINET IO and EtherNet/IP networks.
Optional Accessories – only applies to RS232 models/ cable sets

Mounts/Stands

Optional Accessories

Cases/Holsters

Optional Accessories

Batteries/Battery Chargers

Optional Accessories

Power Supplies/Cords

Additional Accessory – only required for certain cable sets

EASE OF CARE (EoC) Repair/ Maintenance Agreements (Per Unit)

Optional on request
