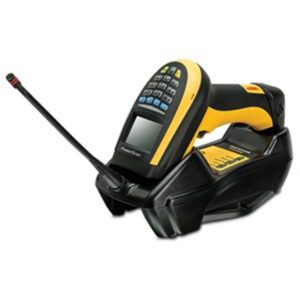

Datalogic Powerscan PM9500 2D Imager Mobile Barcode Scanner

Datalogic Powerscan PM9500 2D Imager Mobile Barcode Scanner

The Datalogic PowerScan PM9500 area imager is a ruggedized cordless reader suitable for all demanding applications. It is equipped with a new generation of the Datalogic STAR Cordless System™, the proprietary radio from Datalogic, which further improves the outstanding features of versatility, ease-of-use and radio range.

Datalogic PowerScan PM9500 2D Mobile Barcode Scanner

Description

FEATURED

  • Snappy omnidirectional reading from contact to over 1.0 m /3.3
  • Datalogic’s new instinctive ‘frame’ aimer
  • New ‘soft white light’ illumination
  • Datalogic’s Motionix™ motion-sensing technology
  • Ergonomic shape provides hours of tireless data collection for the user
  • Supports 1D, stacked and 2D codes, postal codes and image capture
  • Model option with DPM reading capability (PD9530 DPM)
  • Datalogic’s 3GL™ (3 Green Lights) technology and loud
    beeper for good-read feedback
  • Water and Particulate Sealing Rating: IP65
  • High speed 433 MHz radio communications
  • 100 Meter (Open Air) High Speed / 50 Meter (Open Air) Low Speed
  • Available with optional display and 4-keys
  • Point-to-point and multi-point transmission
  • Networking and seamless roaming
  • Lithium-Ion battery replaces in 3 seconds!
  • Datalogic Aladdin configuration program available for download no charge
  • JavaPOS Utilities are available for download no charge
  • OPOS Utilities are available for download at no charge

Summary

EXCELLENT READING CAPABILITIES

An intuitive and effortless scanning experience is the target of the PowerScan™ 9500 family. It combines omni-directional reading capabilities, which is typical in all area imaging scanners, with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the bar code resolution. In addition, the PowerScan PM9500 area imager includes Datalogic’s latest decoding software that guarantees snappy reading in any type of environment. Aim, trigger, decode: it is that simple!

User comfort is guaranteed because of the scanner ergonomics, consisting of the handle shape, a well-balanced weight and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement or rotation which can tire any user during long shifts. Additionally, the PowerScan 9500 area imager uses a soft-pulsed white illumination light resulting in reduced flashes, which is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.

The PowerScan PM9500 area imager is available in 3 different models to meet the specific needs of each customer. The PM9530 model is geared towards customers needing high reading performance and speed on standard resolution codes.

The PM9530-HP (High Performance) model is more versatile because of the advanced optics that combine high-resolution bar code reading capability (up to 2.5 mils for linear codes) and wide-angle image capture (A4 image size @ 25.0 cm / 0.8 ft) while maintaining an exceptional depth-of-field. While the final model is a high-performance model with a display and 4 configurable keys to increase the interactivity between the host and the user allowing a two-way exchange of information for more reliable and effective communications.

MOBILITY ENHANCES PRODUCTIVITY

The Datalogic STAR Cordless System™ for narrow-band radio communications was developed specifically to maximize efficiency and reliability for handheld scanner data collection applications.
The PowerScan PM9500 models are equipped with a new generation of the STAR-System™ that further improves the already outstanding features of versatility, ease of use and radio range. The radio range allows for 100 m / 328 ft low speed & 50 m / 164 ft high speed.
Long-lasting battery life guarantees more than one shift of intensive scanning.

SUITABLE APPLICATIONS

  • Manufacturing
  • Warehousing
  • Transport & Logistics
  • Automotive
  • Access Control
  • Mobile Coupons
  • Ticket Validation
  • Lottery
  • Component Tracking
  • Automatic Sorting Back-Up
  • Parcel Preparation

Specifications

DECODING CAPABILITY

  • 1D / Linear Codes:
    Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes
  • 2D Codes:
    Aztec Code; China Han Xin Code; Data matrix; MaxiCode,
    Micro QR Code;QR Code
  • Postal Codes:
    Australian post; China Post, IMB; Japanese Post; KIX Post; Planet Code;
    Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post
  • Stacked Codes:
    EAN/JAN Composites; GS1 DataBar Composites;GS1 DataBar Expanded Stacked;
    GS1 DataBarStacked; GS1 DataBar Stacked Omnidirectional;
    Macro PDF; Micro PDF417; PDF417; UPC A/E Composites

READING PERFORMANCE

  • Image Sensor:
    PD9530: 864 x 544; PD9530-HP/PD9530-HPE: 1280 x 1024
  • Light Source:
    Illumination: White LED reading Light; Aiming 630 – 670 nm
  • Print Contrast Ratio (Minimum):
    15%
  • Reading Angle:
    Pitch: +/- 40°; Roll (Tilt): 360°; Skew (Yaw): +/-40°
  • Reading Indicators:
    Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’
    Good Read Feedback; Good Read LED. Datalogic 3GL™ (Three Green Lights) Technology
    and loud beeper for good-read feedback;
    Datalogic ‘Green Spot’on the code; Dual Good Read LEDs
  • Resolution (Maximum):
    PD9530: 1D Codes: 4 mil; 2D Codes: 75 mil
    PD9530-HP/PD9530-HPE: 1D Codes: 2.5 mil; 2D Codes: 4 mil

CORDLESS COMMUNICATION

  • Datalogic Star Cordless System:
    Effective Radiated Power: 433 MHz: <10 mW
    Point-to-Point Configuration
    Multi-Point Configuration: Max. Readers per Radio Receiver: 32
  • Radio Frequency:
    433 MHz
  • Radio Range (Open Air):
    50 m / 164 ft high speed 910 MHz: 150 m / 492 ft low speed;
    80 m / 262 ft high speed
    Seamless Roaming
    Two Way Communications

ENVIRONMENTAL

  • Drop Resistance:
    Withstands repeated drops from 2.0 m/6.6 ft onto a concrete surface
  • Particulate and Water Sealing:
    IP65
  • Temperature Operating:
    -20 to 50 °C / -4 to 122 °F
  • Storage/Transport:
    -40 to 60 °C / -40 to 140 °F

WARRANTY

3-Year Factory Warranty

Product – Kit

Kit Include specified cable, non Kit require additional cable

Product – Scanner Only

Requires additional cable, base & PSU

Base Station

Non Kit require additional Base stations

Cables

Please specify cable type if required (additional accessory)

Fieldbus Converter (Ethernet/ Profinet) / Miscellaneous

Compact-size industrial gateway allowing the connection of devices equipped with a standard RS-232 communication interface into PROFINET IO and EtherNet/IP networks.
Optional Accessories

Mounts/Stands

Optional Accessories

Cases/Holsters

Optional Accessories

Batteries/Battery Chargers

Optional Accessories

Power Supplies/Cords

Additional Accessory – only required for certain cable sets

EASE OF CARE (EoC) Repair/ Maintenance Agreements (Per Unit)

Optional on request
