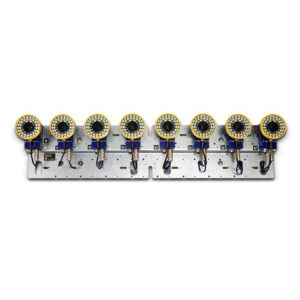

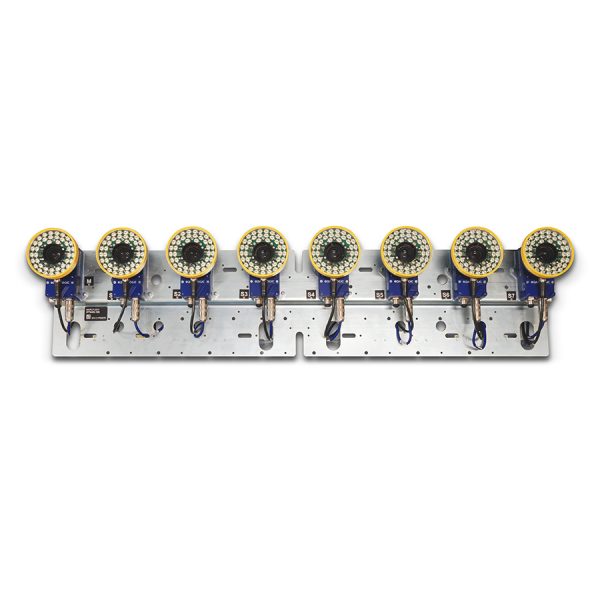

Datalogic STS400™ Fixed Tyre Sorting Barcode Scanner Array

Datalogic STS400™ Fixed Tyre Sorting Barcode Scanner Array

The Datalogic STS400™ is the first solution in its class to effectively address the demanding requirements of tire Tracking and Traceability applications.

Description

FEATURED

  • Easy to install: 100% pre-assemble calibrating
  • Easy to maintain
  • Simple and lean: simple and regulated render layout which avoids articulated mounting patterns
  • Long-term reliability: no moving onboard guarantee reliability and longer life-cycle
  • Ready for the future: compatible with changing requirements such as downsizing of code heights or introduction of cd codes

Summary

ONE SOLUTION-ONE PART NUMBER

Each complete STS400™ solution has a single order number. All of the required accessories, such as cables, connectors and photocells, are included into the shipping package. Only the power supply is ordered separately.
The Datalogic STS400™ models are optimized for bar code resolution and reading range: models are configured to read 0.25 mm (10 mil) and 0.33 mm (13 mil) for passenger, light truck tires and 0.35 mm (14 mil) for commercial vehicle tires..

STS400™ is available in different versions – fully pre-configured and optimized – for any possible reading layout:

Top reading (versions -00x and 01x)
Bottom reading (versions -02x)
Side reading (versions -03x)

EASY TO INSTALL

The STS400™ saves manufacturers in installation costs and time – 100% pre-assembled and calibrated – with no focusing, no height barrier and no encoder requirement. The high read rates are guaranteed by the factory-validated reading performance. Additionally, the self-contained mechanical layout makes the integration into constrained spaces quick and easy. The complete reading system fits into a maximum space of 1080 x 241 x 176 mm – 42.5 X 9.6 x 7 in (cables, connection boxes, and readers included).

EASY TO MAINTAIN

With no moving parts, the STS400™ requires minimal maintenance. Detecting a reading problem is simple with the Green Spot feature: a flashing green light indicates a good read at the single device level, providing immediate feedback of the read status without any additional software tools or displays.

The imaging approach provides a simple reader layout. This approach eliminates the need for complex articulated mounting patterns, typical of other reading technologies. Easy integration and compactness of the reading system are exclusive advantages of the imaging approach.

No moving parts guarantee reliability and a longer life-cycle. Imagers offer values of MTBF (Mean Time Between Failures) several times longer than readers working with moving parts, such as rotating mirrors in laser scanners.

SUITABLE APPLICATIONS

  • Tire Manufactures

Specifications

DECODING CAPABILITY

  • 1D / Linear Codes:
  • 1D Stacked: Interleave 2/5, Code 128, Code 39, EAN/UPC, PDF417, Micro PDF417, Pharmacode
    GS1 DATABAR (RSS) family, and many more
  • 2D Codes:
    Data Matrix, QR Code, Maxicode, Aztec, Microglyph
    1D Code Res mm (mils)
    0,30 (11,8)
  • Reading Width mm (inch)
    1225 (48,2)
  • Min Reading Dist mm (inch)
    890 (35,0)
  • Max Reading Dist mm (inch)
    1140 (44,9)
  • DOF mm (inch)
    250 (9,8)
  • Focal position mm (inch)
    1065 (41,9)
  • Postal Codes:
    Postal: Royal Mail, Japan Post, Planet, Postnet and many more
  • Code Quality Verification:
    AS9132A (Data Matrix Quality Requirements for Parts Marking),
    ISO/IEC 15415 (Print quality test specifications for 2D codes),
    ISO/IEC 15416 (Print quality test specifications for linear codes),
    ISO/IEC 16022 (DataMatrix), ISO/IEC 18004 (QR-Code)
    AIM DPM (Global Direct Part Mark Quality Guideline)

CONNECTIVITY SPECIFICATIONS

  • Communication Interfaces:
    RS232 + RS232/RS422/RS485 up to 115.2 Kbit/s
    Ethernet IEEE 802.3 10 Base T and IEEE 802.3U 100 BaseTX compliant
    ID-NET™ port up to 1 Mbps
  • Connectivity Modes:
    Pass-Through, Master/Slave, Multiplexer, Ethernet point to point
  • Digital Inputs:
    Two SW programmable, optocoupled and polarity insensitive
  • Digital Outputs:
    Two SW programmable, optocoupled
  • Device Programming:
    X-PRESS™ Human Machine Interface, Windows™ based SW (VisiSet™) via serial or Ethernet link
  • User Interface:
    X-PRESS™ Human Machine Interface
    Beeper, Programmable Push Button, LEDs (Status, Com, Trigger, Good, Ready, Power on, Network presence, Good read Spot)

PHYSICAL CHARACTERISTICS

  • Dimensions:
    123 x 60,5 x 87 mm (4.84 x 2.38 x 3.42 in) with protective lens cover
  • Weight:
    482 g (17 oz.) with lens and internal illuminator
  • Case Material:
    Aluminium
  • Operating Temperature:
    0° to + 50 °C (32 to 122°F)
  • Storage Temperature:
    -20 to 70 °C (-4 to 158 °F)
  • Humidity:
    90% non condensing
  • Protection Class:
    IP67
  • Optical Features:
    MATRIX 410 – 4xx-xxx: SXGA (1280 x 1024) CMOS sensor
    MATRIX 410 – 6xx-xxx: UXGA (1600 x 1200) CCD sensor
  • Frame Rate:
    MATRIX 410 – 4xx-xxx: 27 frames/s
    MATRIX 410 – 6xx-xxx: 15 frames/S
  • Reading Angles:
    Max. Pitch: ± 35°; Tilt: 0-360°
  • Power Supply:
    10 to 30 VDC
  • Power Consumption:
    8 W max; 5W typical
