Datalogic Websentinel

Datalogic Websentinel

WebSentinel Plus is a very advanced monitor and information collector used with DAT USS devices. It offers key features, benefits, and insights to end-users and System Integrators specializing in Factory Automation and Transportation and Logistics.

websentinel-icons

Description

FEATURED

  • Real-Time Performance at a glance – (Front page that shows real-time reading performance, package activity and device diagnostics in foreground)

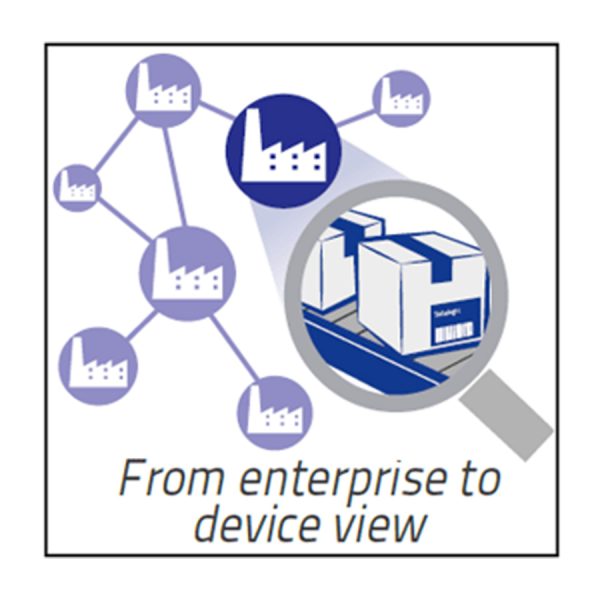

  • Complete control from enterprise to device – (Quickly ‘drill-down’ from enterprise to facility to scan point to device level views)
  • Database searches – (to get data from the last 90 days, and the ability to save the report)
  • Image file browsing – (for Datalogic Automation imagers)
  • Configurable alarm & event notification – (via email)
  • Risk mitigation profiling – (Individual user accounts with configurable roles and privileges)
  • Web-based client
  • Cross platform server application – (Windows and Linux OS)

Summary

WEBSENTINEL PLUS

WebSentinel Plus is a very advanced monitor and information collector used with DAT USS devices. It offers key features, benefits, and insights tend-users and System Integrators specializing in Factory Automation and Transportation and Logistics.

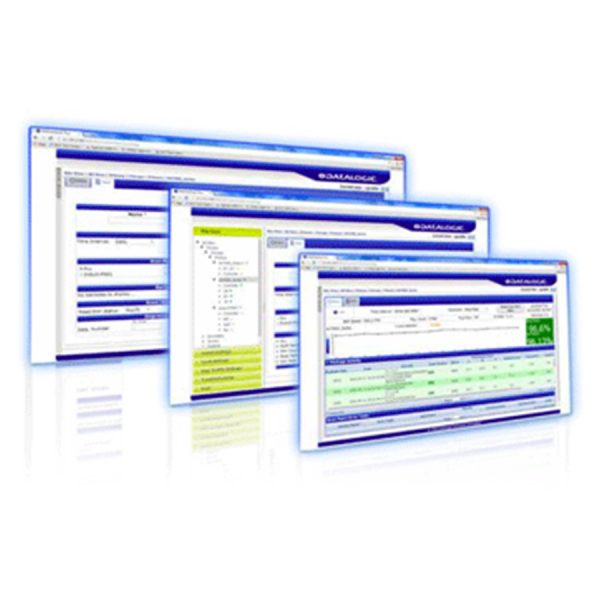

WebSentinel Plus is a supervisory software solution for monitoring operational activities of reading devices through a single web browser-based interface. It collects data from scan points through an Ethernet TCP/IP network, and presents the information flow as visual onscreen information. It also stores this information in a database and, periodically or on demand, produces performance, diagnostic, and tracking reports of DAT USS Fixed scanners.

WebSentinel Plus provides visibility to enterprise controlled automated systems from a high-level view of the facilities performance down to a detailed view of any specific device.

SUITABLE APPLICATIONS

  • Transportation and Logistics(Postal and couriers)
  • Distribution & Retail(Large distribution centers, Multimedia sorting)
  • Airport Baggage Handling
  • Automatic Warehousing Management
  • Tracking and Traceability for tire manufactures
  • Factory automation work in progress traceability

BENEFITS

  • Evidence that systems work as expected
  • Reduced reaction time to device faults
  • Predict system failure to reduce downtime
  • Full view of the activities at enterprise and facility level
  • Effective and precise review of processes
  • Performance increase by trends analysis and root cause analysis
  • Expedite response time to unwanted conditions
  • No software installation required and no need to buy new hardware
  • No in house expertise needed

​REPORTING

  • Reading statistics
  • Barcode tracking at both enterprise and facility levels
  • Package search based on several attributes like no-reads/ multi-reads, dim/no dim, unexpected size, parcel gap, date and time, or shift
  • Event information
  • Reading charts

Specifications

TECHNICAL DATA

  • Soft Requirements
    Operating Systems: Windows 7 – 10 (32 or 64-bit, 64-bit preferred), Linux on Datalogic HW or on request
    Web Browser: Internet Explorer 10 (or later), Chrome 36 (or later), Firefox 30 (or later)
    Java: Version 7 (or later)
  • Server Hardware Recommendations
    PDedicated Computer with the following:
    Intel Core i3, 2.1 GHz or equivalent processor
    8 GB RAM
    500 GB hard disk with at least 350 GB free space for package data
    Two 10/100/1000Mb Ethernet port
    USB 2.0 port for software installation

WEBSENTINEL SOFTWARE – IMAGER UNITS

(Optional) WebSentinel Plus is a very advanced monitor and information collector, a supervisory software solution for monitoring operational activities of reading devices through a single web browser-based interface. It collects data from scan points through an Ethernet TCP/IP network, and
presents the information flow as visual onscreen information. It also stores this information in a database and,
periodically or on demand, produces performance, diagnostic, and tracking reports.

WEBSENTINEL SOFTWARE – LASER UNITS

(Optional) WebSentinel Plus is a very advanced monitor and information collector, a supervisory software solution for monitoring operational activities of reading devices through a single web browser-based interface. It collects data from scan points through an Ethernet TCP/IP network, and
presents the information flow as visual onscreen information. It also stores this information in a database and,
periodically or on demand, produces performance, diagnostic, and tracking reports.
