JANAM GTI GT1 SELF-CREDENTIALING KIOSK SCANNER

JANAM GTI GT1 SELF-CREDENTIALING KIOSK SCANNER

Janam’s GT1 self-credentialing kiosk is a super-affordable solution for contactless access control and is designed to deliver best-in-class experiences to hospitals, retail establishments, restaurants, office buildings, hotels, schools, arenas and virtually any organization that wants to verify usually private information from their patrons, customers, staff and guests.

Description

FEATURED

  • PLUG-AND-PLAY: Transforms an XT2+ or XT3 handheld into a fully-automated, self-service scanning

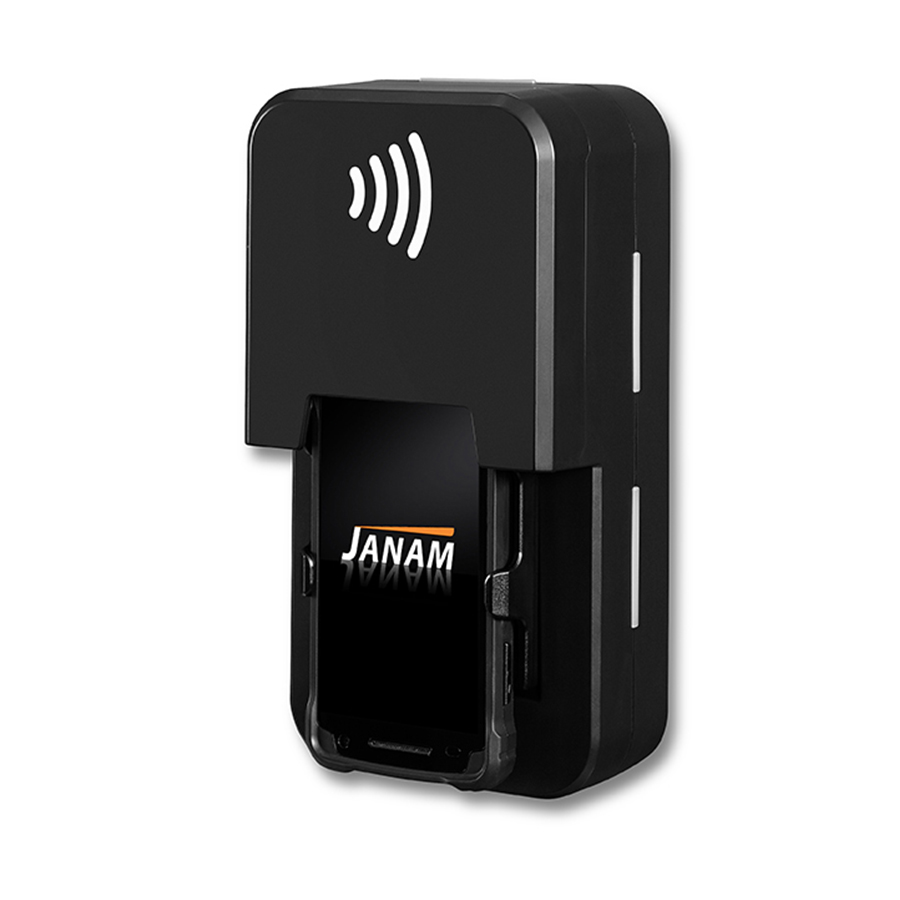

  • VERSATILE DESIGN: Compact and portable; fits most spaces in countertop or wall-mounted format
  • SELF SERVICE: Visitors self-credential, enabling staff to perform other tasks
  • NO TOUCH: Reduces the spread of contagions via zero contact and safe distancing
  • INSTANT NOTIFICATIONS: Attention-grabbing LED lights and audio confirm credential status at a distance
  • NFC “TAP-AND-GO”: Supports advanced protocols for both apple wallet and Google Pay in the same device
  • ROBUST DATA CAPTURE: Reads all 1D/2D printed and digital barcodes, RFID/NFC- enabled tickets and wristbands
  • SUSTAINED CONNECTIVITY: Maintains existing network connection to backend software solution for continued stability
  • SOFTWARE INTEGRATION: Integrates with virtually all third-party software

Summary

SAFE, SECURE AND AFFORDABLE SELF-CREDENTIALING KIOSK

Janam’s GT1 self-credentialing kiosk is a super-affordable solution for contactless access control and is designed to deliver best-in-class experiences to hospitals, retail establishments, restaurants, office buildings, hotels, schools, arenas and virtually any organization that wants to verify usually private information from their patrons, customers, staff and guests.

Available in countertop and wall-mounted formats, GT1 is equipped with the most advanced data capture technology to read barcodes, QR codes and passes stored in a mobile wallet. With support for the most advanced tap-and-go features of Apple Wallet and Google Pay, GT1 eliminates the need for users to unlock their phone and scroll through their digital wallet to find the right pass. Integrated
proximity-based NFC technology automatically pulls the appropriate pass, enabling businesses to rapidly verify ticket and check-in information, loyalty cards, employee ID, healthcare coverage and other business-critical information.

GT1 Self-Credentialing Kiosk

GT1 also helps businesses comply with state and local COVID-19 testing and vaccination requirements with the ability to securely read both paper and digital health credentials. GT1 supports most digital health passes including VaxScan from Soter Technologies, FOBI CheckVax, Good Health Pass, IBM Digital Health Pass, SMART Health Card, EU Digital COVID Certificate and other government-compliant digital vaccination verification apps.

Specifications

TECHNICAL

Operating System

  • Android 9 (Pie) with Google Mobile Services (GMS); OS upgradeable; Android Enterprise Recommended

Processor

  • 2.2GHz Qualcomm Snapdragon™ octa-core

Memory

  • 4GB/64GB (3GB/32GB optional)

Expansion

  • User-accessible microSD card slot up to 32GB SDHC and up to 512GB SDXC,1 micro SIM (WWAN model only) and 2 micro SAM slots

PHYSICAL

  • Dimensions:
    5.1” L x 3.5” W x 9.75” D / 129.5mm L  x 89mm W  x 248mm D
  • Weight:
    1.75lbs / .79kg (Head Unit only)
    2.35lbs / 1.06kg (with XT3)
  • I/O:
    I/O on GT1 includes power input
    jacks for wall adapter and battery, ethernet port,
    and USB port
  • Display:
    5 inch HD (1280×720), IPS, Daylight readable (500 nits), Wide viewing angle, Corning Gorilla Glass
  • Touch Panel:
    Multi-touch capacitive touch screen

ENVIRONMENTAL

  • Operating Temperature:
    -4º to 140ºF / -20°C to 60°C
  • Storage Temperature:
    -13º to 158º F / -25º to 70º C
  • Humidity:
    Non-condensing, 95%
  • Water & Dust:
    IP52
  • Electro Static Discharge (ESD:
    +/- 15kV air; +/- 8kV contact

INTERFACE FEATURES

  • Audio:
    3.5mm headset jack; speaker;  dual-microphone with noise cancelation and push-to-talk (PTT) SUPPORT (VIA XT3)
  • Alerts:
    Audio; LED indicators
  • Connectors:
    USB-C; Pogo Pin industrial connector (via XT3)
  • LED Indicators:
    Dual-color
  • Motion Sensors:
    Accelerometer; Light Sensor; Proximity Sensor; Gyroscope; Digital Compass
  • External Buttons:
    9 programmable keys

DATA CAPTURE

  • Imager:
    Honeywell N6703 1D/2D imager
  • Camera:
    13MP color rear-facing autofocus camera with user-controllable LED flash and 8MP front-facing camera
  • RFID/NFC:
    Reads NFC Forum Tag 1 to 5, ISO14443 Type A, ISO14443 Type B, ISO15693,MIFARE® 1k/4k/Plus/UltraLight/ DESFire, Sony FeliCa on the 13.56 MHz range, Support for Apple Wallet and Google Pay NFC protocols

WIRELESS COMMUNICATION

  • WWAN:
    EDGE/GPRS/GSM: 900/1800/850/1900 WCDMA: B1/2/4/5/6/8/19 LTE FDD: B1/2/3/4/5/7/8/12/13/14/17/19/25/26/20/28 LTE TDD: B38/B39/B40/41
  • WLAN:
    802.11a/b/g/n/ac/d/h/i/k/r/v fast roaming, 2×2 MU-MIMO technology
  • Security:
    IEEE 802.11n; WEP / WPA / WPA2 / WEP, RC4 Algorithm; TKIP, RC4 Algorith; AES, Rijndael Algorithm; PEAP/MS-CHAPv2, EAP-TLS; EAP- TTLS; PEAP-GTC; LEAP
  • WPAN:
    Bluetooth 5.0 (BLE)
  • GPS:
    GPS with support for GLONASS, Galileo and Beidou

SAFETY/REGULATORY

  • Safety:
    IEC 60950-1, EMC, RF, SAR, LED, Laser
  • Radio:
    FCC, IC, ICEC, CE
