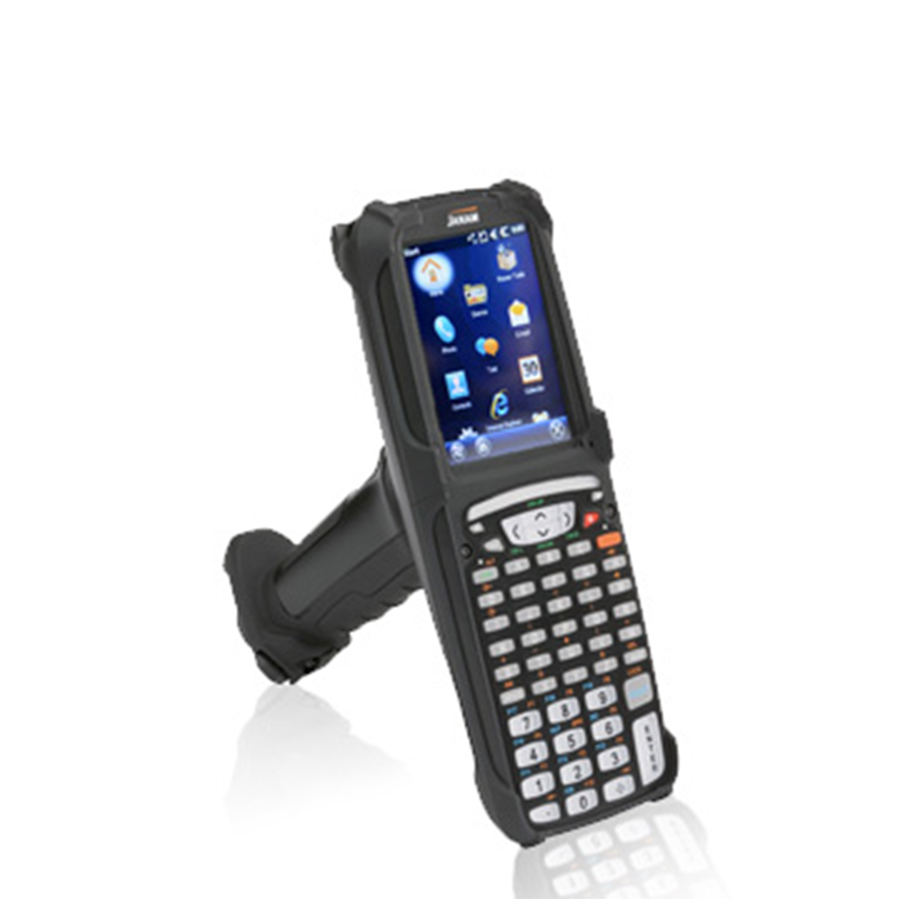

JANAM XG105 INDUSTRIAL PDA BARCODE SCANNER

JANAM XG105 INDUSTRIAL PDA BARCODE SCANNER

The XG105 is a rugged workhorse for customers that need close-range and distance barcode scanning as well as reliable capture of barcodes that are damaged or underneath shrink wrap.

Description

FEATURED

  • Microsoft Windows Mobile 6.1 or Windows CE 6.0 operating system
  • Long Range Laser with open air range up to 150 m
  • User-accessible micro SD memory slot
  • WLAN 802.11a/b/g – Cisco CCX Certified
  • Full-colour display 3.7” Color TFT QVGA (240×320); 262K colors
  • All keys tested to 1,000,000 actuations
  • Bluetooth v2.0
  • 256MB Double data rate (DDR) memory SDRAM, 256 NAND Flash ROM
  • Marvel XScale PXA320 @ 624MHz
  • Vibration, LED indicators, full Audio (speaker & microphone)
  • Hi-Speed USB 2.0 and serial output
  • Freescale™ i.MX31 @533MHz
  • Ten-layer PCB with grounding planes
  • Hi-Speed USB 2.0 and serial output
  • Numeric Keypad

Summary

LIGHTWEIGHT AND LONG RANGE LASER

With industrial-quality construction and the SE965, Motorola’s best-in-class, high performance scan engine, Janam’s XG105 delivers unrivalled performance, scanning range and durability.

WINNING FORM FACTOR, WINNING FEATURES

It is loaded with efficiency-enhancing features such as pre-installed Wavelink® Avalanche and TE, well-spaced keys and mobile DDR memory. The XG Series features Summit WiFi radio, is Aruba and Cisco certified and delivers open air range up to 150′ greater than competitive devices. And with the battery in the handle, XG Series products are incomparably light and balanced in hand, making them ideal for scan intensive, extended shift use in demanding environments.

The Janam XG105 has a 1.8m (6ft) drop resistance and an IP64 protection Class for rough environments, a large 3.7″ colour display and is capable of reading barcodes from as far as 17ft (5.2m away).

SUITABLE APPLICATIONS

  • Workforce Management
  • Order management
  • Order and price look-up
  • Mobile CRM
  • Retail Stores
  • Order entry
  • Inventory
  • Shelf replenishment
  • Price management
  • Assisted sales
  • Work Force Management
  • Courier Value-Added Services
  • Shelf Replenishment
  • Event Management

Specifications

DECODING CAPABILITY

  • 1D / Linear Codes:
    China Post, Codabar, Codablock F, Code 11, Code 16K, Code 32 Pharmaceutical (PARAF), Code 39, Code 49, Code 93 and China Post, Codabar, Codablock F, Code 11, Code 16K, Code 32 Pharmaceutical (PARAF), Code 39, Code 49, Code 93 and duced Space Symbology (RSS-144, RSS Limited, RSS Expanded), Straight 2 of 5 IATA (two-bar start/stop), Straight 2 of 5; Industrial (three-bar start/stop), Telepen, Trioptic Code, UPC-A, UPC-A with Extended Coupon Code, UPC-E, UPC-E1

PHYSICAL CHARACTERISTICS

  • Dimensions:
    7.24” H x 3.51” W x 9.07” L / 183.78mm H x 89.05mm W x 230.44mm L
  • Display:
    3.7” Color TFT QVGA (240×320); 262K colors
  • Keypad:
    Backlit 42-key and 52-key including terminal emulation keypads (5250, 3270, VT)
  • Weight:
    24.3oz / 689g with battery

ENVIRONMENTAL

  • Drop Resistance:
    Withstands repeated drops from 1.8 m/6.0 ft onto a concrete surface
  • Particulate and Water Sealing:
    IP64
  • Temperature Operating: 14º to 122º F / -10º to 50º C
    Storage/Transport: -13º to 158º F / -25º to 70º C

WIRELESS COMMUNICATION & SYSTEM

  • Local Area Network (LAN):
    Summit IEEE 802.11 a/b/g Cisco CCX certified
    Frequency range: Country dependent, typically 2.4 GHz bands
  • Personal Area Network (WPAN):
    Bluetooth® Wireless v2.0
  • Wireless Security:
    WPA-PSK, WPA2-PSK, AES, LEAP, PEAP (MS-CHAPv2), PEAP-TLS, TKIP, EAP-TLS, WEP 40-bit, WEP 128-bit
  • Expansion Slots:
    Micro SD card slot compatible, user-accessible
  • Memory:
    System Flash: 256 MB NAND Flash ROM
    System RAM: 256 DDR SDRAM.
  • Microprocessor:
    Marvell XScale PXA320 @624MHz
  • Operating System:
    Windows Mobile 6.1 or Windows CE 6.0

WARRANTY

1-Year Factory Warranty
