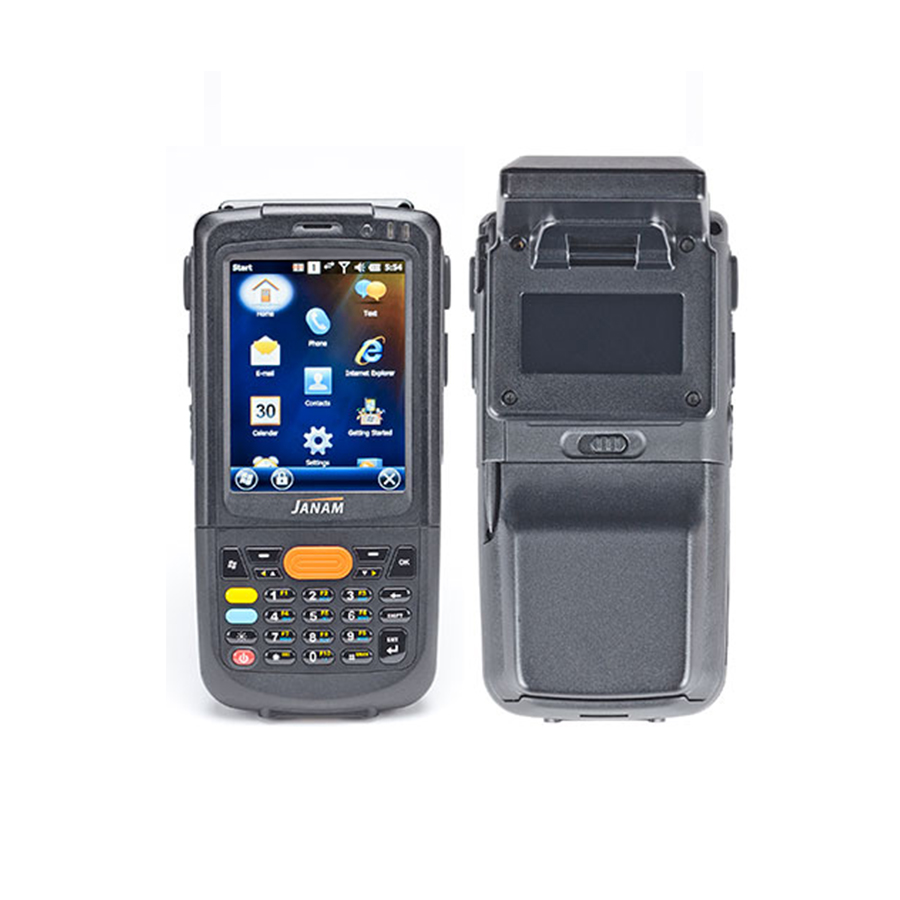

Janam XM2-RFID UHF PDA Barcode Scanner

Janam XM2-RFID UHF PDA Barcode Scanner

With its best-in-class read range and accuracy, the XM2-RFID UHF mobile computer delivers high-performance data capture for organizations looking to improve the efficiency and reliability of their supply chain. Optimized for all-day, every-day use in challenging environments, this mobile RFID reader helps companies cut costs, improve customer service, reduce labor, increase accuracy and improve production throughput.



  • Small and light—only 13.0 ounces with battery.
  • Brilliant 3.2-inch color display.
  • High-performance barcode scanning
  • Powerful ARM 9 CPU.
  • Sealed to IP64 standards
  • 128MB/128MB with expansion capability
  • 802.11b/g/n Wi-Fi
  • Bluetooth
  • 2880mAh hot-swappable Li-ion battery


Field-Proven for demanding environments

As enterprise and government customers look for innovative ways to improve operational efficiencies and gain meaningful business intelligence data, Radio Frequency Identification (RFID) has emerged as a viable, affordable technology with rich capabilities and enormous promise. Organizations across industries, including retail, transportation and logistics, manufacturing and defense are increasingly turning to RFID-enabled solutions to track goods in the supply chain, reduce counterfeiting, speed up data capture activity and improve the customer experience.

Janam’s XM2-RFID UHF mobile computer is a rugged and integrated RFID handheld reader for all-day, every-day use in challenging environments. With best-in-class RFID read range and accuracy, the XM2-RFID UHF is ergonomically designed to deliver businesses-critical enterprise features to the palm of the hand.

Achieve new levels of accuracy

The XM2-RFID UHF mobile computer is fully-featured to provide the power and performance required by mobile workers. Offering a range of features that allow businesses to deploy a device optimized to meet their needs, the XM2-RFID UHF is equipped with a brilliant 3.2-inch colour display, 2D imager for robust decoding of the hardest-to-read barcodes and support for Microsoft’s Windows Embedded Handheld 6.5 operating system. Delivering the right combination of performance and reliability, the 13-ounce XM2-RFID UHF mobile computer reads ISO18000-63, EPC Global Class 1 Gen 2 tags and after five hours of continuous use and more than 40,000 tag reads, still has 20 percent capacity remaining in its battery. Janam’s XM2-RFID UHF is fully-featured and available at a highly attractive price point for organizations focused on improving their bottom line.


  • Workforce Management
  • Order management
  • Order and price look-up
  • Mobile CRM
  • Retail Stores
  • Order entry
  • Inventory
  • Shelf replenishment
  • Price management
  • Assisted sales
  • Work Force Management
  • Courier Value-Added Services
  • Shelf Replenishment
  • Event Management



  • 1D / Linear Codes:
    China Post, Codabar, Codablock F, Code 11, Code 16K, Code 32 Pharmaceutical (PARAF), Code 39, Code 49, Code 93 and China Post, Codabar, Codablock F, Code 11, Code 16K, Code 32 Pharmaceutical (PARAF), Code 39, Code 49, Code 93 and duced Space Symbology (RSS-144, RSS Limited, RSS Expanded), Straight 2 of 5 IATA (two-bar start/stop), Straight 2 of 5; Industrial (three-bar start/stop), Telepen, Trioptic Code, UPC-A, UPC-A with Extended Coupon Code, UPC-E, UPC-E1
  • 2D Code:
    PDF417 (EAN-UCC Composite, MicroPDF417, PDF417, TCIF Linked Code 39, TLC39), 4-CB (4-State Customer Barcode),
    Australian Post, Aztec Code, Aztec Mesas, British Post, Canadian Post, Data Matrix, ID-tag (UPU 4-State), Japanese Post, KIX (Netherlands) Post, MaxiCode, OCR, Planet Code, Postnet, QR Code
  • RFID/ NFC:
    Reads ISO18000-63, EPC Global Class 1 Gen 2 RFID tags


  • Dimensions:
    5.8” H x 2.9” W x 1.0” L /148mm H x 73mm W x 25.4mm L
  • Display:
    3.2 inch QVGA with LED backlight
  • Keypad:
  • Touch Panel:
    Resistive touch screen
  • Weight:
    13oz / 370g including battery


  • Drop Resistance:
    4ft / 1.2m drop to concrete on four sides
  • Particulate and Water Sealing:
  • Tumble:
    250 3.2′ tumbles (250 drops)
  • Electro Static Discharge (ESD):
    +/- 15kVdc air; +/- 8kVdc contact
  • Sterilization:
    75.9% to 81.4% concentration alcohol rub
  • Power:
    2880mAh hot-swappable Li-ion battery
  • Temperature Operating:-4º to 122º F / -20º to 50º C
    Storage/Transport: -22º to 158º F / -30º to 70º C


  • WLAN
  • Security:
    WEP (40 or 128 bit); TKIP; AES; WPA2-PSK; WPA-PSK; WPA2 (EAP-TLS, EAP-PEAP)
  • Personal Area Network (WPAN):
    Bluetooth v2.1 with EDR
  • Audio:
    Speaker and Microphone
  • Alerts:
    Vibration; LED indicators; audio beep
  • LED Indicators:
  • Imager:
    Motorola SE4500 1D/2D CMOS or Motorola SE655 Linear 1D Imager
    API-addressable compass for applications
  • Expansion Slots:
    User-accessible MicroSD card slot
  • Memory:
    128MB RAM / 128MB NAND Flash
  • Microprocessor:
    ARM 9 processor
  • Operating System:
    Microsoft Windows Embedded Handheld 6.5


1-Year Factory Warranty
