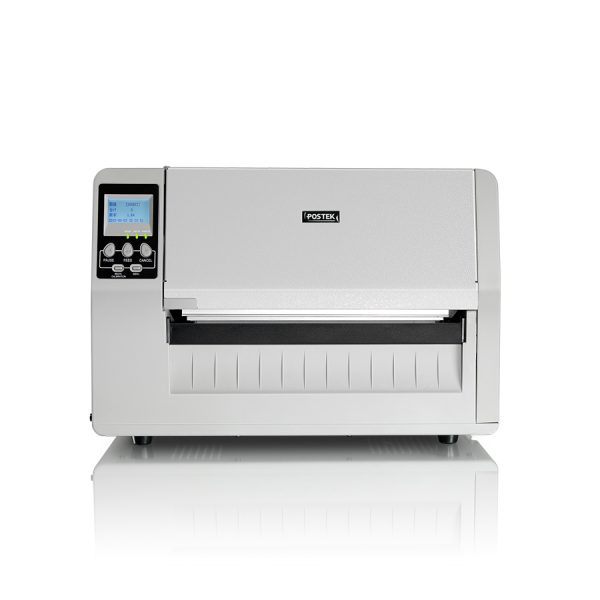

Postek TW Series Wide Format Barcode Label Printer

Postek TW Series Wide Format Barcode Label Printer

POSTEK TW series is the high-performance wide format label printer developed by Postek, with a maximum media loading width of 10″, and effective printing width of 8.64″or 6.6″, it provides you with a super-wide range of media choices. Metal case + One Piece Chassis, exquisitely born from the inside out, the TW series also grantees you the most incredible reliability and durability, which help to handle the most complicate and high-intensity tasks with ease.

Description

FEATURED

  • Easy TPH Pressure Adjustments, Fast & Simple
  • Adjustable TPH Position
  • Better Printing Quality on More
  • Smart Ribbon Tension Adjustments
  • Innovative “Push and Draw” External Media Compartment
  • Compatible EPL, ZPL, ZPL ll

Summary

TW Series – WIDE FORMAT BARCODE LABEL PRINTER

WIDE FORMAT LABEL PRINTING SUPERIOR PERFORMANCE

POSTEK TW series is the high-performance wide format label printer developed by Postek, with a maximum media loading width of 10″, and effective printing width of 8.64″or 6.6″, it provides you with a super-wide range of media choices. Metal case + One Piece Chassis, exquisitely born from the inside out, the TW series also grantees you the most incredible reliability and durability, which help to handle the most complicate and high-intensity tasks with ease.

Also, as the most brilliant space magician, the TW series has featured with the most innovative “push-draw external media compartment” design, which can be either easily operated while in use or nicely stored with little space required.

BENEFITS

The innovative “Pull and Draw” external media compartment design makes it so nature for the TW series to work with large rolls of media. You can also feel the considering design when the media compartment is withdrawn for transferring and stock.

The unique “easily adjustable TPH pressure technology” allows users to access optimal printing quality by adjusting the printhead pressure by simply rotating the knobs. Smartly adjustable ribbon tension technology makes the TW8 be perfectly compatible with most types of consumables while ensuring beautiful printing quality on them.

End of Ribbon sensor saves you a fortune by preventing label wastes due to incomplete printing when the ribbon is out.

SUITABLE APPLICATIONS

  • Textile
  • Building Material
  • Equipment Labeling
  • Chemical Tank
  • Entertainment
  • Sport Events
  • Car Parts Manufacturing

Specifications

  • Printing Method:
    Thermal Transfer
  • Printing Resolution:
    300 dpi 203 dpi 300 dpi
  • Max Printing Speed:
    4 ips (101.6 mm/s) 6 ips (152.4 mm/s) 4 ips (101.6 mm/s)
  • Max Printing Width:
    8.64″(219.5 mm) 6.6″(168 mm) 6.6″(168 mm)
  • Max Printing Length:
    79″(2000 mm) 79″(2000 mm) 157″(4000 mm)
  • HEAT™ Level:
    II I I
  • Memory:
    8 MB FLASH ROM, 32 MB SDRAM
  • Media:
    Roll-feed, die-cut, continuous, tags, tickets in plain paper or thermal paper
  • Width:
    10.23” (260 mm) max., 3.54″(90 mm) min.
  • Supply roll:
    OD 8.27″(210 mm) max., ID 3″(76.2 mm) min.
  • Thickness:
    0.0024″~ 0.019″(0.06 ~ 0.48 mm), including liner
  • Ribbon:
    Wax, Wax/Resin, Resin
  • Ribbon roll:
    OD: max. 3.54″(90 mm), ID: 1″(25.4 mm)
  • Max width:
    8.66″(220 mm); Max length: 1968’ (600 M), Inkside: Out
  • Media Sensor:
    Reflective (adjustable) / Transmissive (adjustable)
  • Fonts:
    Five built-in dot-matrix ASCII fonts, Downloadable Truetype Fonts
  • Bar Code Types;
    1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar,
    Interleave 2 of 5, UPC A/E 2 and 5 add-ons, EAN-13/8/128, UCC-128, etc.
    2D Barcode: MaxiCode, PDF417, Data Matrix, QR Code, etc.
  • Interfaces:
    RS-232 Serial, USB DEVICE 2.0, USB HOST, 10/100 M-bit Ethernet
  • LCD Display:
    Graphic Dot Matrix
  • Power Rating:
    100 – 240 V 50/60 Hz
  • Weight:
    9 kgs
  • Dimensions:
    W 14.8″(375 mm) × D 17.1″(435 mm) × H 9.8″(250 mm) Media compartment withdrawn
    W 14.8″(375 mm) × D 14.2″(360 mm) × H 9.8″(250 mm) Media compartment stored
  • Operating Environment:
    Temperature: 32°F ~ +104°F (0℃~ 40℃ ), Relative humidity: 5% ~ 85% non condensing
  • Storage Environment:
    Temperature: -40°F ~ +140°F (-40℃ ~ 60℃), Relative humidity: 5% ~ 85% non condensing
  • Optional Items:
    Centronics, Cutter ( Limits: Max. Width 258mm, Max. Thickness 0.3mm,
    Compatible Media types: PET, PVC, art paper, Tags)
  • Expandable:
    UHF RFID, Wi-Fi, Bluetooth

* HEAT™, Heating Equilibrium Adaptive Tuning, newly developed by POSTEK, is a cutting edge technology in heating control of
thermal print-heads. With HEAT™, the POSTEK printers can significantly improve their performance in the aspects of printout
clarity and print speed. The HEAT™ level represents the fineness of the heating uniformity with level I being the finest.

* All specifications are subject to change without notice.

Product – Kit

Printers include Power Supply and Cables

Maintenance Repair Agreements (Per Unit)

Repair Maintenance Agreements or Ease of care repairs with a turnaround of 5-7 days from date of order
