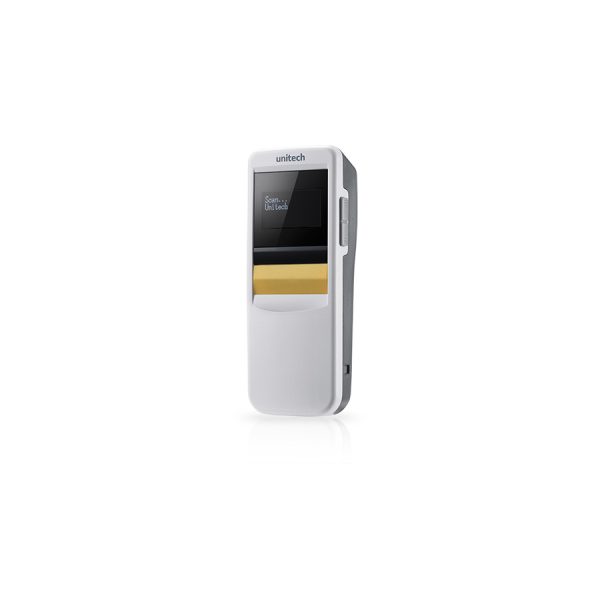

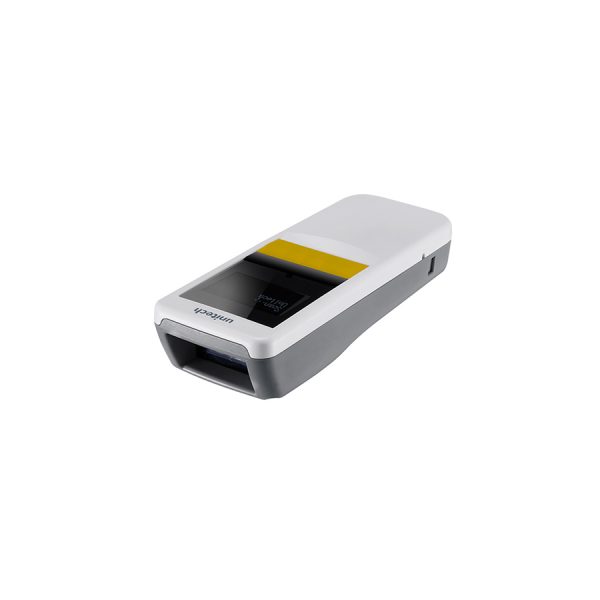

The new Unitech MS926 is a new generation of wireless 2D pocket scanner that doubles the excellent decoding performance in a pocket-sized enclosure. Thanks to its 1-inch OLED display & lightweight design for easy mobility, MS926 allows enterprises to simply scan and transmit 1D or 2D barcode and check feedback of the scanned information in real time.
Build in high performance 2D engine & decoder to read all standard
1D, 2D and PDF417 barcodes.
Bright, easy-to-read 1-inch OLED display.
Design for reading barcodes displayed on the LCD screens
of mobile devices.
Compatible with Windows, Android, and iOS mobile devices
by HID and SPP connection
Smart Data Mapping Technology : Lookup table function and
data edit function for data mapping.
Date / Time stamp for tracking scanning schedule.
Supports NFC-BT automatic pairing function.
Enterprise durability: 1.5 m drop protection and IP42
sealing for ingress protection
LED, beeps or vibration mode indicate good scan,
connection and power status.
Summary
SUPERIOR 2D SCANNING PERFORMANCE WITH A COMPACT SIZE
The unitech MS926 is designed specifically for mobile users and business professionals, the Unitech MS926 is a lightweight stylish design that slips easily into the average-sized pocket. Featuring superior 2D scanning design, Unitech MS926 ensures read reliability for the LCD screens of mobile devices and paper in any orientation.
SMART DATA MAPPING TECHNOLOGY
The Unitech MS926 offers a user-friendly experience with three-button operation that is very easy to use, requiring no special training. Built-in a bright 1-inch OLED display, mobile workers can get feedback of the scanned information in real-time. This device also delivers Smart Data Mapping Technology which is combined Lookup Table and Data View/Edit Function with Date / Time stamp. It helps users to ensure data transmitted correctly and it is allowed to check up to 10,000 pre-load barcodes in the memory of Lookup Table that is more flexibility to correct data and tracking scanning schedule immediately. Moreover, Unitch MS926 is built in 2MB Flash ROM for up to 100,000 barcodes storage in batch mode (depends on barcode length).
DURABLE, EASY PAIRING WITH WIRELESS TECHNOLOGY
The Unitech MS926 not only incorporates rugged design with an IP42 environmental sealing against moisture and dust, while also surviving a 1.5M drop to concrete, but also it provides the convenience of wireless technology which makes barcode data collection simple, reliable for all users.
With NFC-BT automatic pairing function, Unitech MS926 can connect quickly and easily to the NFC enabled device without complex setting, it helps users to improve efficiency in mobile work place and delivers the flexibility with the 10 meters operating range.
Adding to its versatility, the MS926 also allows you to charge its built-in lithium-ion battery through any standard USB port. The battery is fully charged within 4 hours. MS926 mini barcode scanner is ideal for streamlining productivity at customer-facing operations such as the personal Identification and mobile ticketing application
SUITABLE APPLICATIONS
Retail
Post Office
Video Store Checkout
Healthcare
Asset Management
Inventory Control
Specifications
SYSTEM FEATURES
Display:
1″ OLED, 128 x 64
Memory:
64 Kbytes SRAM / 2MB Flash ROM
OS:
Proprietary, Connect to host with Windows, Android and iOS
Languages support:
English, Simp. Chinese, Traditional Chinese, Japanese, Spanish, German, French
SYMBOLOGIES
1D Barcode Engine:
UPC-A, UPC-E, EAN-8, EAN-13, CODE 39, CODE 128, GS1 128 , I 2 of 5, NEC 2 of 5, CODE 93, Codabar, GS1DataBar Omn, GS1 DataBar Ltd, GS1DataBar Exp, CODE 11, MSI, UPC-E1, S 2 of 5 Indus, S 2 of 5 IATA, Matrix 2 of 5
2D Imager (optional):
1D codes: China Post, Korea Post
2D codes: QR Code, Data Matrix, Aztec Code, PDF417, Macro PDF417, Micro PDF417, MaxiCode, Codablock A, Codablock F, GS1 Composite, Han Xin Code
2D Postal Code: Australian Post, British Post, Canadian Pos, InfoMail, Intelligent Mail Bar Code, Japanese Post, KIX (Netherlands) Post, GS1
Composite, Korea Post, Planet Code, Postal, Postnet
PHYSICAL CHARACTERISTICS
Sensor:
CMOS sensor with 640 x 480 pixel
Light Source:
White LED with CCT 5000K
Ambient Light:
0–100,000 lux (total darkness to bright sunlight)
Keypad:
3 keys: Page up, Page down, Scan with power on/off feature
Motion Tolerance:
Up to 100 cm/s (4 in/s) for 13 mil UPC at optimal focus
Typical frame rate:
30 frames per second
RFID Reader:
Frequency: 13.56MHz
Tag Support: ISO15693, ISO14443A , ISO14443B
Switch Life:
10 million times
Vibration and Shock test:
MIL-STD-810G, Method 514.6, Procedure I
MIL-STD-810G,Method 514.6,Procedure II, Category 5
Weight:
63g
Dimension:
36.9mm x 95.9mm x 21.1mm
Battery:
Operation Voltage: DC 3V to 5V
Current Consumption: Operate: 400mA, Standby: 160mA
Battery Type: Rechargeable Li-ion battery battery
Battery Capacity: 680mAh
Battery Charging time: Fully charged within 4 hours
Operating Time: 5 hours at the condition of 1 scan/5 sec
ENVIRONMENTAL
ESD Protection:
Functional after 8K Contact and 12K Air
