UROVO S90 CE6 BIO-METRIC PDA BARCODE SCANNER

UROVO S90 CE6 BIO-METRIC PDA BARCODE SCANNER

Waterproof, Dustproof & Workproof.
Wepoy/ Urovo S90 mobile computer optional with an integrated handle provides user-friendly ergonomics, cutting-edge wireless technology, multi-functional data capture and extreme durability for front-line workers operating in a variety of locations ranging from warehouse loading docks to retail shopping aisles for stock replenishment. It also has an attachable Bio-Metric Finger Print reader. This device is extremely rugged and reliable for a fraction of the cost of most Bio-metric Mobile Computers.

Wepoy Features S90

Description

FEATURED

  •  Windows CE 6.0 Version
  • 1D & 2D Barcode Scanner
  • RFID LF/HF/UHF Bands
  • Plug & Play Finger Print Bio-metric Adapter
  • 5ft/1.5m Drop Tolerance and IP65 Sealing
  • 3.5 inch TFT-LCD QVGA (240×320) color screen
  • 5MP Auto Focus Camera
  • GPRS, HSPA+ ,Wifi, Bluetooth
  • Black/White Color Choice

Summary

Scanning Flexibility

S90 comes with top brand MOTO or Honeywell OEM barcode engineer, offers 1D laser or a C-MOS imager for reading both 1D and 2D symbologies to achieve optimum reading performance in all working environments.

Superb RFID Capability

The new S90 can support LH,HF, UHF (Optional). Impinj R2000 is optional for UHF, which is up to 6 meters and can read more 200 tags simultaneously.

Glove & Wet Touchscreen Operation

You can use 5” large capacitive touchscreen while wearing gloves or when the screen is wet; the feature is always activated with no special setting to turn on.

Snap-on Biometric Fingerprinter

The new S90 can integrate with Crossmatch TCS2SS, which is highly accredited and widely used in the government section.

All Wireless Connectivity

Integrated with Bluetooth®, WiFi .Optional GPRS/HSPA+, GPS, it supports both indoor and outdoor applications, such as retail, warehousing,etc.

Long Battery Life

The new S90 has the powerful 3200-mAh lithium-ion main battery and optional additional rechargeable li-ion battery 5200mAh with a pistol grip.

SUITABLE APPLICATIONS

  • Inventory Counting,
  • Access Control,
  • Back Office Inventory Management
  • Hospitality
  • Restaurants
  • Stock Management
  • Food Traceability

Specifications

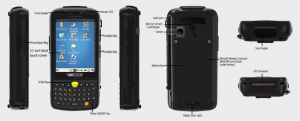

Wepoy Diagram S90 CE

Physical Specifications

  • Model:
    Wepoy S90 CE
  • Dimensions (LxWxD):
    154 * 77 * 31mm / 6.06 * 3.03 * 1.22in
  • Weight:
    330g/11.64oz.( includes main battery)
  • Keyboard:
    1. Numeric or full alphanumeric
    2. QWERT: 41 silicone buttons and 3 side buttons;
    3. Numeric: 24 silicone buttons and 3 side buttons;
  • Input:
    Chinese/English, Touch input and keyboard input
  • Promoting Mode:
    LED, vibration loudspeaker

Product Performance

  • OS:
    Windows Embedded CE 6.0 Core
  • CPU:
    Cortex-A8, 800MHz
  • Screen:
    3.5 inch. 240 * 320 px. TFT-LCD with backlight, 65K colours
  • Panel:
    Resistive screen
  • Memory:
    ROM: 4GB
    RAM: 256MB
  • Extended Memory:
    Micro SD slot, up to 32 GB

Barcode Scanning

  • 1D Linear Scanner (Optional):
    1D CCD scanner: UPC/EAN, Bookland EAN, Code 128, Code 39, Code 93, Code 11,
    Interleaved2 of 5, Discrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5, Inverse 1D, MSI, GS1
    DataBar, etc.1D laser scanner: UPC/EAN, Code128, Code39, Code93, Code11,
    Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
  • 1D:
    1D Symbologies: UPC/EAN, Bookland EAN, Code 128, Code 39, Code 93, Code 11,
    Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5, Inverse 1D, MSI,
    GS1 DataBar, UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5,
    Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
  • 2D:
    2D Symbologies:PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, MicroQR code, Aztec, MaxiCode; Postal Codes:
    US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX),etc
  • Network
    Wi-Fi:
    IEEE802.11b/g or IEEE802.11b/g/n enterprise (Optional)
  • WCDMA/GSM:
    GSM/GPRS 900/1800MHz
    or 850/900/1800/1900MHz(Optional)
    or WCDMA (900 / 2100 MHz)
    or WCDMA (850 / 2100 MHz)
    or WCDMA (850 / 1900 MHz)
    or CDMA2000 EVDO: 800MHz
  • Bluetooth:
    Bluetooth Class v2.0+EDR, typical range 5 – 10m
  • Camera:
    5.0 mega pixels,automatic focus
  • GPS:
    u-blox NEO-6M low energy GPS chip
  • RFID Reader (Optional):
    HF readers:
    Frequency: 13.56MHz
    Protocol: ISO14443A/B, ISO15693
    Chips:1) M1card (S50/S70), M0 (Ultralight), M3 ( Desfire D40/ D41 / D81), CPU_A card
    2 CPU_B card
    3 ICODE II, TI2048, LRI64K
    4 Others for customization
    R/W range: up to 8cm / 3.15in.
  • UHF readers ( ordering code UHF ):
    Frequency: 865 – 868 MHz / 920 – 925MHz
    Protocol: EPC C1 GEN2 / ISO18000-6C
    Antenna:Linear polarization (1.8dBi )
    Power:1W (+10dBm to +30dBm)
    Range:Option1, up to 3m/3.28 to 9.84ft. / Option2, up to 5m/3.28 to 16.4ft.
    (tags and environment dependant)

Battery

  • Capacity:
    Rechargeable 3.8V 3800mAh Lithium-ion polymer battery pack
  • RTC Battery:
    Supports to keep the clock at real-time
  • Charging Time:
    Less than 4 hours
  • Adapter:
    5.5V/ 2.6A

User Environment

  • Operating Temp:
    -10℃
  • Storage Temp:
  • Humidity:
    5% RH ~ 95% RH (non-condensing)
  • Sealing:
    IP65
  • Drope Grade:
    1.5m
  • Roller Drop Test:
    500 times (1000 hits)
  • Peripherals and Accessories
    Expansion:
    Micro SD/TF *1(a maximum of 32 GB), SIM*1, SAM*1
  • Interfaces:
    Micro USB x 1, POGO PIN x 1, 3.5mm Audio Jack x 1
  • Single Slot Dock (Optional):
    Supports to charge one unit of device and one spare battery simultaneously
    Input:AC 100V~240V,1A Max,50/60Hz
    Output:DC 5.5V,2.6A
    Two indicators Led: Power and Status

Regulatory

  • Certification:
    CCC, CE,FCC

Warranty

1-year factory warranty for main device; 6 months for accessories
