Datalogic Skorpio X5 Android 10 PDA Mobile Scanner

Datalogic Skorpio X5 Android 10 PDA Mobile Scanner

Skorpio X5 is the best-in-class fully rugged key-based mobile computer to face the toughest enterprise challenges in Data Capture. The powerful next generation of Datalogic Skorpio family that stands out in any data collection application from distribution centers to retail stores.

DATALOGIC SKORPIO X5 DATASHEET
DATALOGIC SKORPIO X5 REFERENCE GUIDE

Description

FEATURED

  • Qualcomm SD660 Octa-core 2.2 GHz platform providing power for the most demanding Apps
  • Android 10 with Google Mobile Services; Android Enterprise Recommended for the ultimate user experience, platform stability and Enterprise features
  • Largest display in its class with a 4.3” WVGA with Gorilla™ hardened glass delivering the highest visibility and

    readability even in direct sunlight

  • RAM Memory: 3/4 GB; Flash Memory: 32/64 GB
  • 3 Scan Engine options: Linear imager, 2D imager Standard Range and 2D imager Mid-Range with no compromises on data capture capabilities
  • Choice of Wireless charging to eliminate contacts and reduce maintenance costs
  • Rear 13 MP color camera to quickly document proof of damage or condition
  • Removable battery pack with Hot Swap battery technology Standard 3500 mAh or High Capacity 6200 mAh
  • Ruggedized with drop resistance up to 1.8 m / 6 ft to concrete and IP65 sealing to withstand the most harsh and

    demanding environments

  • -20 to 50 ºC / -4 to 122 ºF operating temperature
  • Dual band MIMO Wi-Fi featuring 802.11ac and 802.11r/k/v for fast roaming
  • 47-key alphanumeric, 38-key function numeric, 28-key numeric to fit specific applications and user needs
  • Bluetooth™ v5 to empower Bluetooth peripherals with less power consumption
  • NFC for proximity communications
  • Chemical cleaner’s resistant plastics/enclosure to endure frequent cleaning and disinfections
  • Pre-licensed device and browser lockdown powered by 42Gears to prevent device misuse
  • Main market MDM’s and TE’s compliant
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI. Datalogic Shield, for Android security patches and OS upgrades, is included with EASEOFCARE.

Summary

SKORPIO X5 IS MORE

Skorpio X5 is the best-in-class fully rugged key-based mobile computer to face the toughest enterprise challenges in Data Capture. The powerful next generation of Datalogic Skorpio family that stands out in any data collection application from distribution centers to retail stores.

Lightweight, ergonomic, with plenty of different configurations and differentiating features, Skorpio X5 is the perfect business companion for professionals in the warehouse, shop floor, manufacturing floor and any logistics facility.

TOP PERFORMANCE WHILE EXTREMELY RUGGED

Skorpio X5 is powered by the market leader Qualcomm Snapdragon® 660 platform clocked at 2.2 GHz for top performance in the most demanding applications. It features Google OS Android 10 with GMS and it is validated by Google as an ‘Android Enterprise Recommended’ (AER) rugged device.

Skorpio X5 is a fully rugged PDT designed for the toughest environments, with an IP65 sealing rating and 1.8 m / 6.0 ft repeated drops to concrete.

WIRELESS CHARGING or “CLASSIC” CONTACTS WIRED CHARGING

With Skorpio X5 you can choose between a full contactless device with state of the art 15 watt Wireless Charging or an industry standard pogo-pin connector version that also allows ethernet connectivity within the Skorpio cradle. The contactless version incorporates Datalogic’s industry-first wireless charging system for ultra-reliable contactless charging, eliminating the maintenance issues often generated by contacts.

BEST IN CLASS VISIBILITY

Skorpio X5 feature a 4.3’’ display, the largest in his category, allowing the user to run more features rich applications or have a clearer and more easily readable screen in simpler apps. The high visibility display perfectly fits also in external environments.

FULL SHIFT CAPACITY

Replaceable battery with Standard 3500mAh or High Capacity 6200mAh choice, hot swappable battery technology and the Datalogic smart Battery Management application, allows customers to run 24/7 operations with no interruptions in the most demanding and scanning intensive applications.

INDUSTRY – APPLICATION

  • Retail:
  • Price Check and Update
  • Store Inventory, Store Replenishment
  • Online Order Fulfillment, Workforce Management
  • Receiving Goods in Store
  • Retail Front- End (Mobile POS, Assisted Sales)
  • T&L:
  • Receiving, Putaway, Replenishment
  • Picking / Order Fulfillment
  • Forklift operations
  • Truck loading/unloading
  • Inventory, Returns and Baggage Management
  • Manufacturing:
  • Intralogistics
  • Receiving, Inventory and Putaway Management
  • Picking and Shipping, Work Order Management
  • Quality Control & Traceability, Kitting
  • Planogram Compliance
  • Technical Documentation / Schematics
  • Healthcare:
  • Receiving and quality check
  • Warehousing, Inventory Management, Order Fulfillment
  • Returns Management, Shipment batch tracking
  • Pharmacy applications

Specifications

WIRELESS COMMUNICATIONS

  • Local Area Network (WLAN):
    IEEE 802.11 a/b/g/n/ac and 802.11 d/e/h/i/k/r/v/w/mc
    (for indoor localization); IPv4, IPv6, 2×2 MU-MIMO for
    higher throughput and coverage
    Frequency range: Country dependent, typically 2.4 GHz
    and 5 GHz bands
  • Personal Area Network (WPAN):
    Class 2, Bluetooth V5.0 with BR/EDR and Bluetooth Low
    Energy (BLE) Support
  • NFC Communication:
    Support for the following standards: ISO14443-4 (type-A,
    type-B); ISO15693; Mifare; Felica

DECODING CAPABILITY

  • 1D / Linear Codes:
    CodaBar, Code 128, GS1-128, ISBT 128, Code 39, Code
    93, Discrete 2 of 5, UPC/EAN, GS1 DataBar™ linear codes, Interleaved 2 of 5, Matrix 2 of 5, MS
  • 2D Codes
    (DE2112-SR and DE2112-MR):
    Aztec Code, Data Matrix, Maxi Code, Micro QR Code, QR Code
  • Postal Codes
    (DE2112-SR and DE2112-MR):
    Australian Post, Japan Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC), USPS Intelligent Mail
  • Stacked Codes
    (DE2112-SR and DE2112-MR):
    Micro-PDF417, PDF417, GS1 DataBar Expanded
    Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked
    Omnidirectional, UPC/EAN/JAN Composites, GS1
    DataBar Composites and GS1-128 Composite

ELECTRICAL

  • Battery:
    Removable battery pack with rechargeable Li-Ion
    batteries; MicroUSB type-C for fast battery charging.
    Standard: 3.7 V; Rated 3460mAh typical 3500mAh (12.8
    Watt-hours); standard on all handheld models
    Extended: Rated 6080 mAh typical 6200mAh (22.1 Watthours); standard on all Pistol Grip models
  • Wireless Charging:
    15 W fast charging

ENVIRONMENTAL

  • Drop Resistance:
    Withstands multiple drops from 1.8 m / 6.0 ft onto concrete according to IEC62-2-32
  • Tumbles:
    Withstands 1,000 from 1 m / 3.3 ft, 2,000 hits
  • Particulate and Water Sealing:
    IP65
  • Chemical Resistance:
    Chemical cleanser and industrial oil resistant
  • Temperature:
    Operating: -20 to 50 ºC / -4 to 122 ºF
    Storage/Transport: -30 to 70 ºC / -22 to 158 ºF

INTERFACES

  • Interfaces:
    USB Type-C: USB 3.1 gen 1 (3.2 gen 1×1), host and
    device; Gigabit Ethernet connectivity (via 3-slot dock)

SENSORS

  • Accelerometer:
    3-Axis accelerometer to detect orientation
  • Gyroscope:
    Senses angular velocity
  • Ambient Light:
    Auto adjusts display backlight
  • Proximity:
    Presentation Mode sensor for 2D models only (based on ToF)

SAFETY & REGULATORY

  • Agency Approvals:
    The product meets necessary safety and regulatory approvals for its intended use.
  • Environmental Compliance:
    Complies to EU RoHS Directive 2011/65/EU
  • Laser Classification:
    VLD – Class 2 IEC/EN60825-1; Compliant with 21 CFR
    1040.10 except for deviations pursuant to laser notice
    No. 50 dated June 24, 2007
  • LED Classification:
    Exempt Risk Group IEC/EN62471

PHYSICAL CHARACTERISTICS

  • Dimensions:
    Front size: 218 x 78,5 mm / 6.69 x 3.14 in
    Thickness Max 31,3 Head; Max 35,6 WLC coil area and hand strap area
  • Primary Display:
    4.3 inch TFT / Transflective LCD with 800×480 WVGA pixel resolution; LED backlight and integrated touch screen, High brightness for Indoor and Outdoor High Visibility
  • Keyboard:
    47-key alphanumeric, 38-key function numeric, 28-key
    numeric; Keyboard with backlight
  • Touch Panel:
    Touch Screen: 6 points multi-touch capacitive panel with
    hardened Gorilla Glass 3; Support for gloves and stylus
  • Weight:
    Hand held: with Std. battery 488 g, with high capacity
    battery 514 g; Pistol-grip: with Std. battery 600 g, with
    high capacity battery 626 g

READING PERFORMANCE

  • Camera:
    Rear Camera: Resolution: 13 MP;
    Illumination: User controllable LED flash
  • Scan Engine:
    1D Imager: Linear CCD 2500 pixels; Sharp green LED
    scan line. Print contrast minimum: 15%.
    Optical Resolution: 2.5 mils (linear codes)
    Depth of Field (typical): 4.0 to 74 cm / 1.5 to 29.1 in (13
    mil/ EAN)
    2D Imager Standard Range (supports 1D / 2D codes):
    White LED Illumination, laser aim 650nm; Print contrast
    minimum: 25%;
    Optical Resolution: 1D codes: 3 mils; 2D codes: 7.5 mils
    (DM), 6.6 mils (PDF);
    Depth of Field (typical): 4.5 to 74 cm / 1.7 to 29.1 in (13
    mil/EAN); 6.5 to 40 cm / 2.5 to 15.7 in (15 mil/DM)
    2D Imager Mid-Range: White LED Illumination; Print
    contrast minimum: 25%;
    Optical Resolution: 1D codes: 3 mils; 2D codes: 7.5 mils
    (DM), 6.6 mils (PDF)
    Depth of Field (typical): 8.0 to 100 cm / 3.1 to 31.4 in (13
    mil/EAN); up to 160 cm / up to 63 in (55 mil/DM)

SOFTWARE

  • Applications:
    Pre-licensed device and browser lockdown powered
    by 42Gears; Datalogic WiFi Guard; compatible with
    Enterprise class PTT by Zello; Datalogic’s SoftSpot soft
    triggers
  • Provisioning:
    Scan2Deploy Studio, Android Zero-Touch, QR Code enrollment
  • Configuration & Maintenance:
    Scan2Deploy Studio, OEMConfig
  • Software Maintenance:
    Datalogic Shield: recurring security patches, firmware
    updates, and OS upgrades
  • Development:
    Android: Datalogic Android SDK, Xamarin SDK, Ionic
    Cordova SDK and React Native SDK
  • MDM:
    Compatible with: SOTI MobiControl, VMWare AirWatch,
    Ivanti Avalanche, 42Gears SureMDM, Microsoft Intune
  • Terminal Emulation:
    Compatible with: StayLinked SmartTE, Ivanti Velocity

SYSTEM

  • Memory:
    RAM Memory: 3 / 4 GB; Flash Memory: 32/64 GB
    (partially used for firmware and reserved data)
  • Microprocessor:
    Qualcomm SD660 Octa-core 2.2 GHz
  • Operating System:
    Android 10 with GMS – 2 Main OS Upgrade Support
  • Audio:
    Wideband Speech (HD Audio) supported on Android
  • Expansion Slots:
    Micro Secure Digital slot (SDXC) up to 256 GB

WARRANTY

  • Warranty:
    1-Year Factory Warranty

Product – Scanner Only (1D)

Scanner Device only, additional accessories are required.

Product – Scanner Only (2D)

Scanner Device only, additional accessories are required.

Docks/Mounts

Optional Accessories – Non Kits require a Power Supply/ Cord.

Batteries/Battery Chargers

Additional Accessories – Spare Batteries.

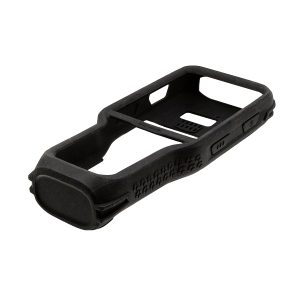

Cases/Holsters

Additional Accessories.

EASE OF CARE (EoC) Repair/ Maintenance Agreements (Per Unit) / Shield Updates

Optional on request.
