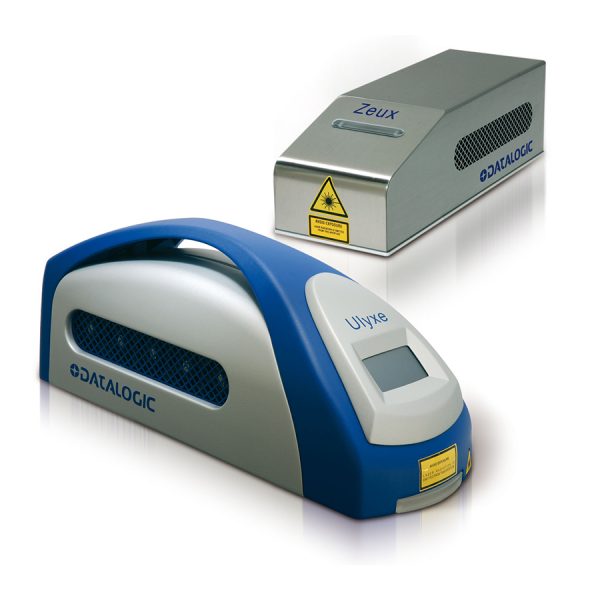

Datalogic Ulyxe Laser Marker

Datalogic Ulyxe Laser Marker

The Ulyxe product line provides ideal laser marking solutions for both stand-alone applications and industrial production lines. Integrated 6.5W DPSS laser marking system, due to its cost-effective, innovative design, Ulyxe becomes the first choice in marking solutions by providing the best price/ performance for plastic and metal marking applications.

Description

FEATURED

  • Air-cooled.
  • Reduced footprint ultra-compact design.
  • Scanning head power
  • Control electronics.
  • Marking controller diagnostic.
  • Software suite.
  • Embedded visible aiming beam and focus beam for fast and easy focusing setup and marking operations.
  • User-friendly touch screen LCD display for monitor and control laser status and functions.
  • Patented, high-efficiency laser configuration.
  • Best Price to Performance ratio on the market.

Summary

FLEXIBLE CONFIGURATION

Datalogic Ulyxe laser family is available in two different configurations to meets the requirements of a wide range of applications and industries.

USB EMBEDDED

Thanks to the embedded DPS controller, perfectly combines compact dimensions with user-friendly interface and control software (LIGHTER 6 Suite): installation, setup and marking have never been easier. This configuration is available both in polycarbonate or metal case.

IMARK CONTROL KIT

Ulyxe is now fully compatible with Mark PCIe control platform controller, enabling advanced Lighter features and up to 4 axis controls (X,Y,Z and rotative axis) to implement multi-layers and rotating marking. Ulyxe with iMark is available only with metal cover.

SUITABLE APPLICATIONS: PRECISION MECHANICS

  • Ulyxe series has been developed to satisfy requirements in automotive, electronics, healthcare and fine mechanics industries, in stand-alone or automatic production lines
  • Label Marking
  • DPM (Direct Part Marking)
  • Tool marking
  • Marking on surgical tools/devices
  • High speed on PCB and electronic devices

Specifications

TECHNICAL

  • Nominal Power:
    6.5W
  • Peak Power(max):
    15 kW
  • Pulse energy:
    300 mJ
  • Wavelength:
    1064 nm
  • Laser source:
    Q-switched DPSS
  • I/O extension (iMark configuration only):
    4 axis controls (X,Y,Z and rotative axis)
    Up to 16 digital programmable I/O
  • Pulse width (typ):
    20-25 nsec
  • Marking capabilities:
    Standing, Rotary axis, On the fly (marking in motion)
  • Integration:
    Up to 4 mechanical axis driving capabilities (stepper motor)
    Up to 10 digital inputs and 10 digital output fully programmable dedicated connectors Encoder and Photocell
  • Interface:
    USB embedded controller version : USB 2.0 ; RS232 for diagnostic iMark controller version: PCIe; RS232 for diagnostic
  • Aiming & Focus Beam:
    Semiconductor laser 1mW @ 635 nm
  • Temperature Range:
    Operative: 15°C to 35°C
    Storing: -5 to +55 °C
  • Cooling System:
    Air-cooled
  • Laser Power Consumption:
    Typical 200W – Maximum 300W
  • Head Dimension & Weight:
    mm 425,9 x 154 x 170,5 kg 7,5 (for Marking kit configuration)
    mm 410 x 145.6 x 123.5 kg 7,8 (for Marking kit configuration)
  • Rack Dimension & Weight:
    mm 111x430x370 kg 16
  • Power Supply:
    24VDC/13A

WARRANTY

N/A

Product – Kit

Product only, please select additional accessories if required

Cables

Please specify cable type if required (additional accessory)

Fume Extractor

Optional Accessories

DATALOGIC FUME EXTRACTOR FOR LASER APPLICATION SIZE SMALL - MODEL LAS 160

EASE OF CARE (EoC) Repair/ Maintenance Agreements (Per Unit)

Optional on request
