Datalogic AV7000 Linear Array Dimensioner 2-Head

AV7000 is the innovative linear camera setting a new paradigm in the T&L market.

DATALOGIC AV7000 LINEAR CAMERA BARCODE SCANNER DATASHEET

Description

FEATURED

Next-generation CMOS sensor with 40 % greater sensitivity
Single view high-quality picture for large conveyors (1400 mm/55 inch)
Patented Autofocus System offering extended DoF
Patented PLS technology, reducing the footprint of the reading
station by 50%
Patented Digital Zoom technology assuring constant DPI resolution
Next-generation decode algorithm for poor quality codes
Multiple format image saving from full definition to highly compressed JPG
Browser-based interface compatible with any kind of OS and HW platform
including PC and Tablet
Redundant architecture with no single point of failure
Software tools for image saving and data intelligence
Linux operative system

Summary

Datalogic AV7000

AV7000 is the innovative linear camera setting a new paradigm in the T&L market. AV7000 is characterized by superior optic performance, extended Auto-ID capabilities, advanced SW functions for image elaboration and data archiving, with excellent tools for operational analysis and process optimization.

Combining the benefits of a next generation CMOS sensor with 40% greater sensitivity and exclusive Datalogic patented technologies, the new AV7000 provides High Definition Images and software functionality that exceed customer expectations. With a large Field of View (1400 mm -55 inch), the AV7000 is the perfect solution to collect High Definition images in a single picture on a large conveyor, instead of multiple partial pictures.

Thanks to Pulsed Lighting Systems – a Datalogic patented technology – a multi-sided AV7000 reading station now requires 50% less space than a nonpulsed lighting system for applications that demand a smaller footprint. The AV7000 camera system is ideal for the most demanding applications in Parcel Sorting for Express Courier and Retail Distribution Company.

SUITABLE APPLICATIONS

Parcel sorting
Dimension weight scan system
OCR and video coding
Extended ID and image saving

Specifications

TECHNICAL SPECIFICATIONS

Field of View:
up to 1400 mm (55.12 in)
Max Resolution:
110 to 260 pixels/inch (DPI) *
Scan Rate:
33,000 scans/s (33kHz)
Imager Sensor Features:
High-Speed CMOS Line Scan (8192 pixels)
Optical lens:
90 mm, 110 mm and 140 mm *
Aperture angle:
15° to 45° *
Readable barcodes:
All Standard 1D and 2D Symbologies
IP Rating:
IP65
Dimensions (Typical Value):
with external fans and Short Illumination: 845x416x237 mm [33.3×16.4×9.3 in]
with external fans and Medium Illumination: 1150x416x237 mm [45.3×16.4×9.3 in]
with external fans and long Illumination: 1480x416x237 mm [58.3×16.4×9.3 in]
Weight:
11kg [24 lbs]
Temperature range:
Operating: 0° to 50° C [32° to 122° F]
Storage: -20° to 70° C [-4° to 158° F]
Power Supply/Consumption:
23-26VDC at illuminator connector
Case material:
Aluminium die-cast
Ethernet:
1 Gigabit Ethernet for decoding data to Host (may also be used for setup)
1 Gigabit Ethernet for image file transfer to Host
Serial ports:
1 Main (COM) RS232/RS485FD opto-isolated serial port up to 115.2 Kbit/s
1 Aux RS232 optoisolated serial port up to 115.2 Kbit/s
Internal Communication System:
SyncNet Technology
Digital Inputs:
3 x Inputs (2 + 1 x “Encoder”), optocoupled, NPN/PNP
Digital Outputs:
2 x Outputs SW programmable, optocoupled, event-driven, NPN

Product – Scanner Only (2D)

Scanner Device only. Lighting & additional accessories are required.

Product – Lighting

required with AV7000.

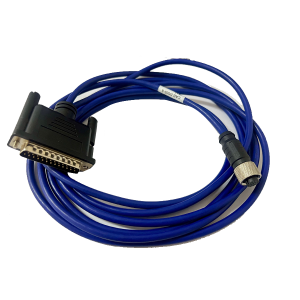

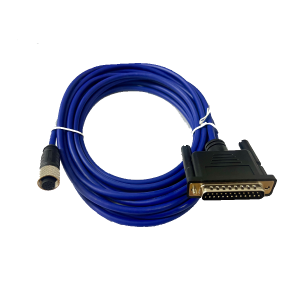

Cables

Required, some fixed scanners have communication cables molded into the housing to connect to the connection box, output cables may still be required. Please refer to topography diagram in Reference manual for more information.

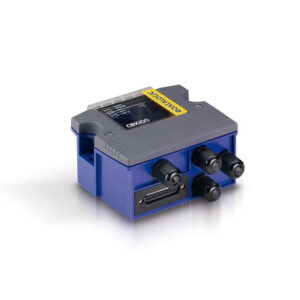

Connection boxes (cbox) / Controllers

Required on all fixed mount scanning unless Quicklink Series connections are used. Please specify additional outputs if required and adapters.

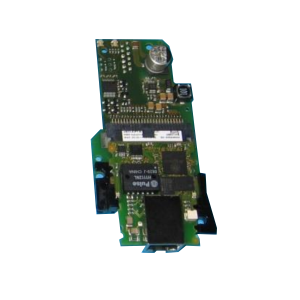

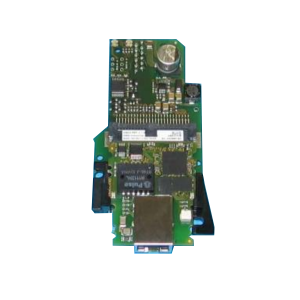

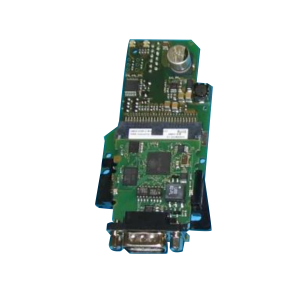

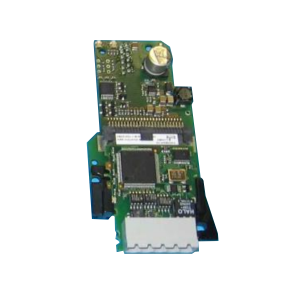

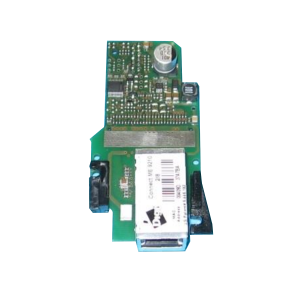

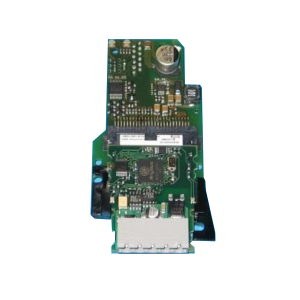

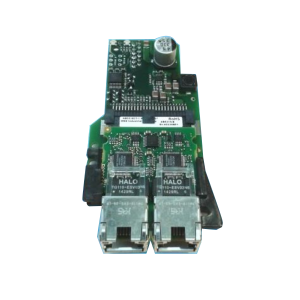

Output Modules

Optional (only required on certain models), only works with CBX500 & CBX800 connection boxes.

Miscellaneous

Optional accessories.

Websentinel Software

(Optional) WebSentinel Plus is a very advanced monitor and information collector, a supervisory software solution for monitoring operational activities of reading devices through a single web browser-based interface. It collects data from scan points through an Ethernet TCP/IP network, and
presents the information flow as visual onscreen information. It also stores this information in a database and, periodically or on demand, produces performance, diagnostic, and tracking reports.
