The Datalogic Matrix 220™ 2D imager is the most compact image-based bar code reader capable of providing top performance with the highest flexibility.

Description

FEATURED

  • Ultra-compact dimensions and rotating connectors for easy integration and installation in tight spaces
  • Industrial-grade electronic focus on all models for extreme reading flexibility
  • New All-In-One DPM illuminator. Red and blue-light polarizing filter and diffused illuminator on one model for many applications needs and strong DPM reading performances
  • Top-performing High Power Illuminators models for challenging high-speed applications
  • New multicore image processing platform excellent for high-speed applications capable of reading up to 2 mils code resolution
  • Hardware Acceleration to speed up algorithms and improve decoding capabilities
  • Power over Ethernet option, onboard PROFINET IO and ETHERNET/IP for industrial connectivity
  • Extreme industrial-grade IP65 and IP67 ratings for harsh environments, -10 to 50 ºC/14 to 122 ºF operating temperature, new flexible cables suitable for robotic arms applications
  • ESD and Anti-YAG protection as a front cover accessory for extreme flexibility and optimized stock

Summary

MATRIX 220™

The Matrix 220 imager is the most compact image based barcode reader for top performance with the highest flexibility. It is the ideal imager reader for Electronics, Automotive, Packaging and Document Handling applications.

The Matrix 220 imager is designed for superior performance thanks to a 1.2 MPixel high resolution sensor and a new multicore image processing platform. The innovative lighting solutions with an integrated flexible illumination system makes the Matrix 220 imager perfect for reading barcodes marked with DPM (Direct Part Marking).

The Matrix 220 offers in a single model the polarized and diffused light options resulting in optimal illumination on any type of surface. The white, red and blue lights and the high powered illuminators models are capable of solving a huge variety of applications with the best perfomance.

The electronic focus control allows easy remote job changing during assembly line reconfiguration with extreme reading flexibility. The Matrix 220 imager has the best ease of use because of the green and red spot lights, the X-Press™ button, the intuitive HMI and the DL.CODE™ configuration software, which has been improved with the Automatic Setup mode for a quick and easy code reading. ESD and Anti-YAG protection are available as front cover accessories to enhance the product flexibility reducing the number of models and simplifying the stock management.

The IP65 and IP67 industrial grade rating, the operating temperature range from -10 to 50 ºC/14 to 122 ºF and the new flexible cables guarantee the best quality and robustness in the Manufacturing Industry applications. The Matrix 220 imager offers cost-effective communication options with Power over Ethernet (PoE) connectivity and onboard PROFINET IO and ETHERNET/IP industrial fieldbus.

With its outstanding performance, the Matrix 220 imager delivers a high performance/price ratio offer in the Datalogic portfolio.

SUITABLE APPLICATIONS

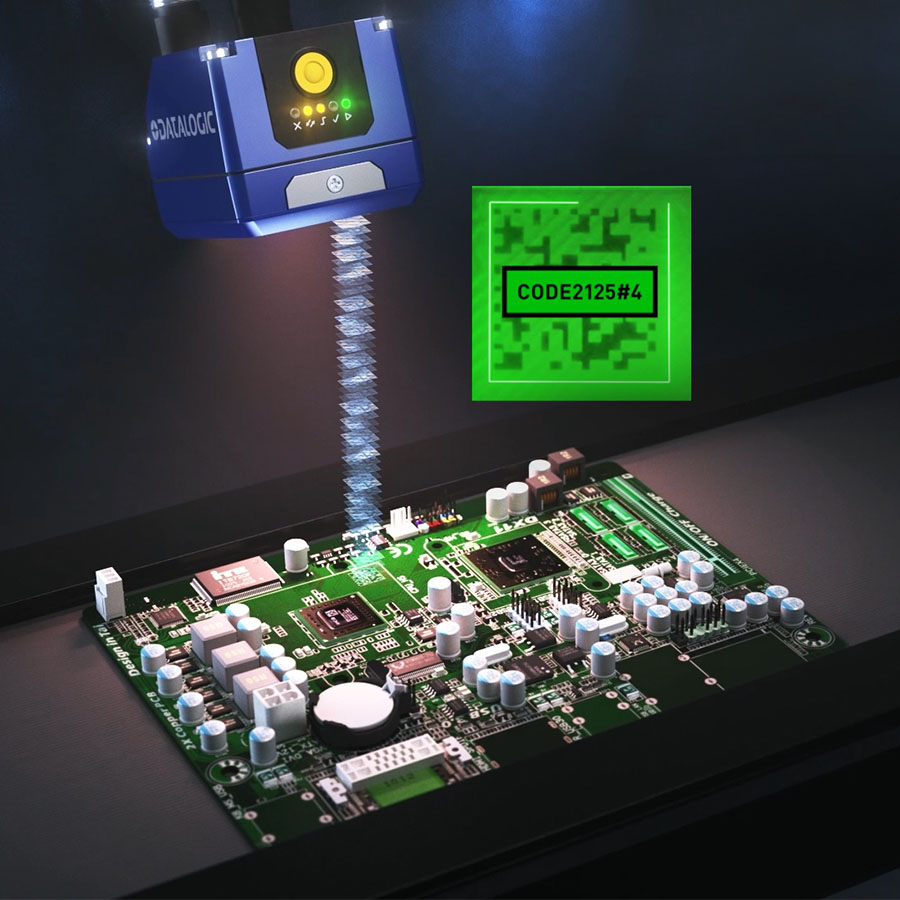

  • Track and trace PCB board manufacturing
  • Electronic components(e.g. chip)
  • Electronic products tracking
  • DPM barcode reading(on plastic, glass, metal)
  • DPM code validation after marking
  • Work-in-progress control
  • Parts and assemblies traceability
  • Primary packaging barcode reading
  • Package traceability
  • Food & Beverage
  • High speed applications

Specifications

TECHNICAL DATA

  • Dimension:
    78mm x 47mm x 38mm (3.07 x 1.85 x 1.50 in) Connector at 0°
    57mm x 47mm x 58mm (2.63 x 1.85 x 2.30 in) Connector at 90°
  • Weight:
    173 gr (6,1 oz)
  • Case Material:
    Aluminium case and plastic protective window cover
  • Operation Temperature:
    -10 to 50°C (14 to 122 °F)
  • Storage Temperature:
    -20 to 70 °C (-4 to 158 °F)
  • Protection Class:
    IP65, IP67
  • ESD Safe:
    YES, available as front cover accessory
  • YAG Laser Protection:
    YES, available as front cover accessory
  • ESD Safe and YAG Laser Protection:
    YES, available as front cover accessory
  • Flexible Cables:
    YES, available as accessories
  • Power Supply:
    All models except PoE: 10 VDC to 30 VDC
  • PoE models: 48 VDC
  • Max Power Consumption:
    All models except PoE: 4,2 Watt (10 VDC to 30 VDC) PoE models: 4,8 Watt (48 VDC)
  • Sensor:
    Image resolution 1280 x 960 (1.2 megapixel) – 1/3” CMOS global shutter
  • Frame Rate:
    45 frames/s
  • Optical Focus Control:
    Electronic focus control
  • Optical Models/Viewing Angles:
    7 mm (38,3°), 12 mm (24,1°)
  • Reading Range:
  • Standard Model
    STD-W & STD-W HP
    Minimum: 40 mm Maximum: 400 mm (7 mm lens), 600 mm (12 mm lens)
  • Direct Part Marking Model
    DPM-R & DPM-B:
    Minimum: 40 mm Maximum: 300 mm
    DPM-R HP:
    Minimum: 40 mm Maximum: 400 mm (7 mm lens), 600 mm (12 mm lens)
  • Illumination:
  • Standard Model
    White light
    White high power light
  • Direct Part Marking Model
    Red light with polarizer and diffuser
    Red high power light with polarizer
    Blue light with polarizer and diffuser
  • Aiming System:
    2 Red Aimer LEDs
    Polarizing Filter:
  • Standard Model
    NO
  • Direct Part Marking Model
    YES Embedded
  • Readable Symbologies:
    1D Codes: all standard 1 dimensional symbologies
  • 2D Codes: Data Matrix, QR Code, Micro QR, Maxicode, Aztec, Dot code
  • Postal Codes: Royal Mail, Japan Post, Planet, Postnet and many more
  • Code Quality Metrics:
    1D CQ Standard: ISO/IEC 15416
  • 2D CQ Standard: ISO/IEC 16022/18004, ISO/IEC 29158 (AIM-DPM), ISO/IEC 15415
  • Embedded Communication Interfaces:
    All models except PoE:
    – Ethernet 10/100 Mbit/s: TCP/IP, UDP, FTP and Fieldbus PROFINET IO, Ethernet IP, Modbus TCP
    – Serial RS-232/RS422FD up to 115.2 Kbit/s + Serial Aux RS-232
    PoE models:
    – Ethernet 10/100 Mbit/s PoE Mode A and Mode B: TCP/IP, UDP, FTP and Fieldbus PROFINET IO, Ethernet IP, Modbus TCP
    – Serial Aux RS-232
  • Reader Networking:
    Datalogic ID-NET™
  • Connectivity Modes:
    Pass Through, Master/Slave, Ethernet point to point
  • Digital Inputs:
    All models except PoE: 2 inputs opto-coupled and polarity insensitive
    PoE models: 1 input opto-coupled and polarity insensitive
  • Digital Outputs:
    3 Outputs (not available on PoE models):
    Configurable NPN, PNP, PP short-circuit protected Using CBX the first 2 outputs are opto-coupled
  • User Interfaces:
    X-PRESS™ Human Machine Interface
    Beeper, Push Button, 7 LEDs (Status, Communication, Trigger, Good Read, Ready, Power on, Network) Green spot and Red spot LEDs Web Monitoring Interface
  • Device Programming:
    DL.CODE™ Windows-based software (programming via Ethernet or Serial Interface) with Javascript output format Host Mode programming

X-PRESS™



22012 22011 22010 2209 2208 2207 2206 2205 2204 2203 2202 2201

Product – Scanner Only (2D)

Scanner Device only, additional accessories are required

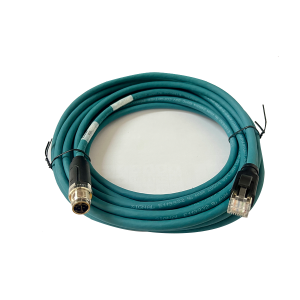

Cables

Required, some fixed scanners have communication cables molded into the housing to connect to the connection box, output cables may still be required. Please refer to topography diagram in Reference manual for more information

Connection boxes (cbox) / Controllers

Required on all fixed mount scanning unless Quicklink Series connections are used. Please specify additional outputs if required and adapters

Output Modules

Optional (only required on certain models), only works with CBX500 & CBX800 connection boxes

Power Supplies/Cords

Additional Accessory – only required for certain cable sets

WEBSENTINEL SOFTWARE

(Optional) WebSentinel Plus is a very advanced monitor and information collector, a supervisory software solution for monitoring operational activities of reading devices through a single web browser-based interface. It collects data from scan points through an Ethernet TCP/IP network, and
presents the information flow as visual onscreen information. It also stores this information in a database and,
periodically or on demand, produces performance, diagnostic, and tracking reports.

EASE OF CARE (EoC) Repair/ Maintenance Agreements (Per Unit)

Optional on request
